True TC650 - Page 33

CHAPTER 2: ASSEMBLY GUIDE
Truetness.com / 800.426.6570 / 636.272.7100 33 of 62
TREADMILL ASSEMBLY STEPS:

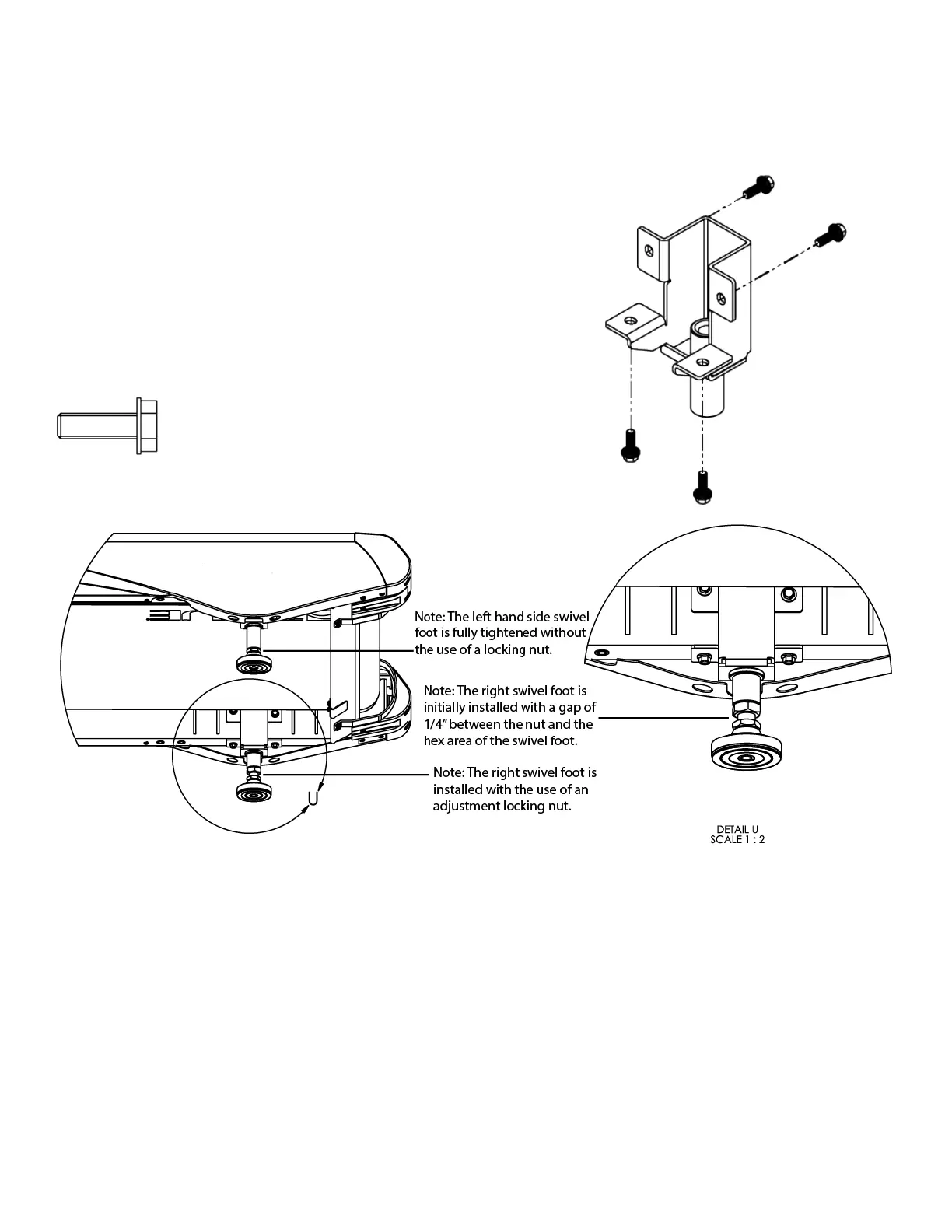

Step 21 Leveling Feet-Decline Kit(Optional):
a) Secure the optional decline kit to the treadmill frame in
the identied areas using four bolts 1/4”-20 x 3/4” per kit.
b) Screw the leveling feet into the optional decline kit
holes as shown.
Note: e bracket is le and right side sensitive so conrm
you are using the correct bracket.
Hardware Required:
8 bolts 1/4”-20 x 3/4”
