Maintenance, Care & Cleaning (cont.)

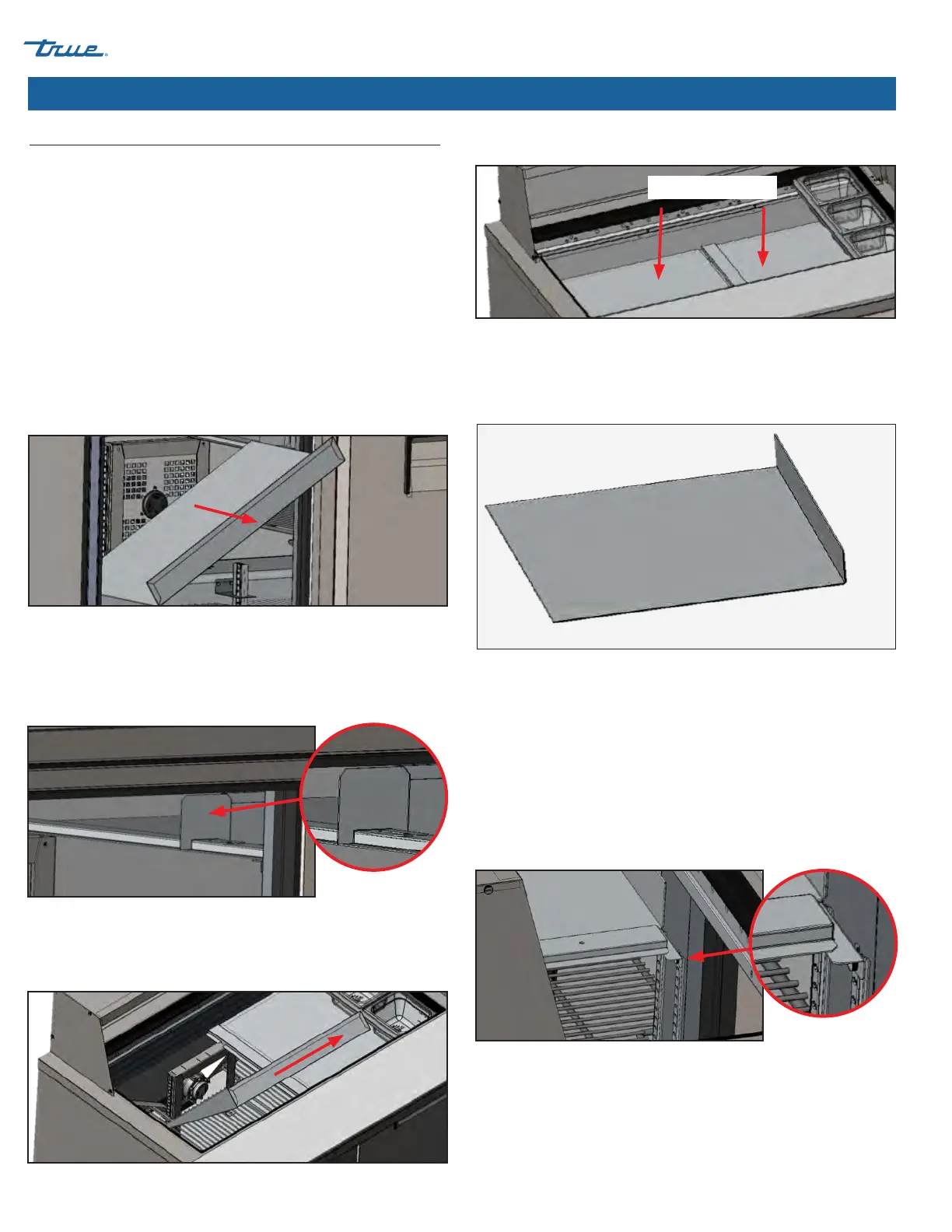

False Bottom Panel Removal/Installation (TFP/TSSU)
Removal Installation
False bottom panes, located underneath the product pans, are
removable for cleaning and sanitizing. These panels must be
installed for correct cabinet operation and product temperatures.
NOTE: The quantity of panels varies by model. Not all
components shown in the following images are used in all
applications.
False bottom baffle
Non-Mega Single Door Units
With product removed, tilt the panel and pull it forward.
Non-Mega Two & Three-Door Units
1. Remove or loosen the false bottom baffle..
2. With the top product removed, tilt and lift the panels from
the top.
Mega Units
With the top product pans removed, tilt and lift the panel from
the top.
NOTE: When reinstalling the false bottom panels, be sure the
vertical bend is positioned at the front of the cabinet and facing up.
Mega & Non-Mega Two & Three-Door Units
1. Position the bottom support with the rear tabs seated in the
correct slots in the top of the shelf bracket.
2. If so equipped, be sure to reinstall the false bottom baffle.
3. Position the panels.
False Bottom Panels
Non-Mega Single Door Units
Perform the reverse procedure of removal.
