True Z5.0 - Treadmill Assembly Steps

CHAPTER 2: ASSEMBLY INSTRUCTIONS
Truefitness.com / 800.426.6570 / 636.272.7100 10
TREADMILL ASSEMBLY STEPS:
CAUTION:
• Use caution when assembling treadmill. Unpacking and assembling of this treadmill is a two person task.
• Remove all treadmill components from packaging.

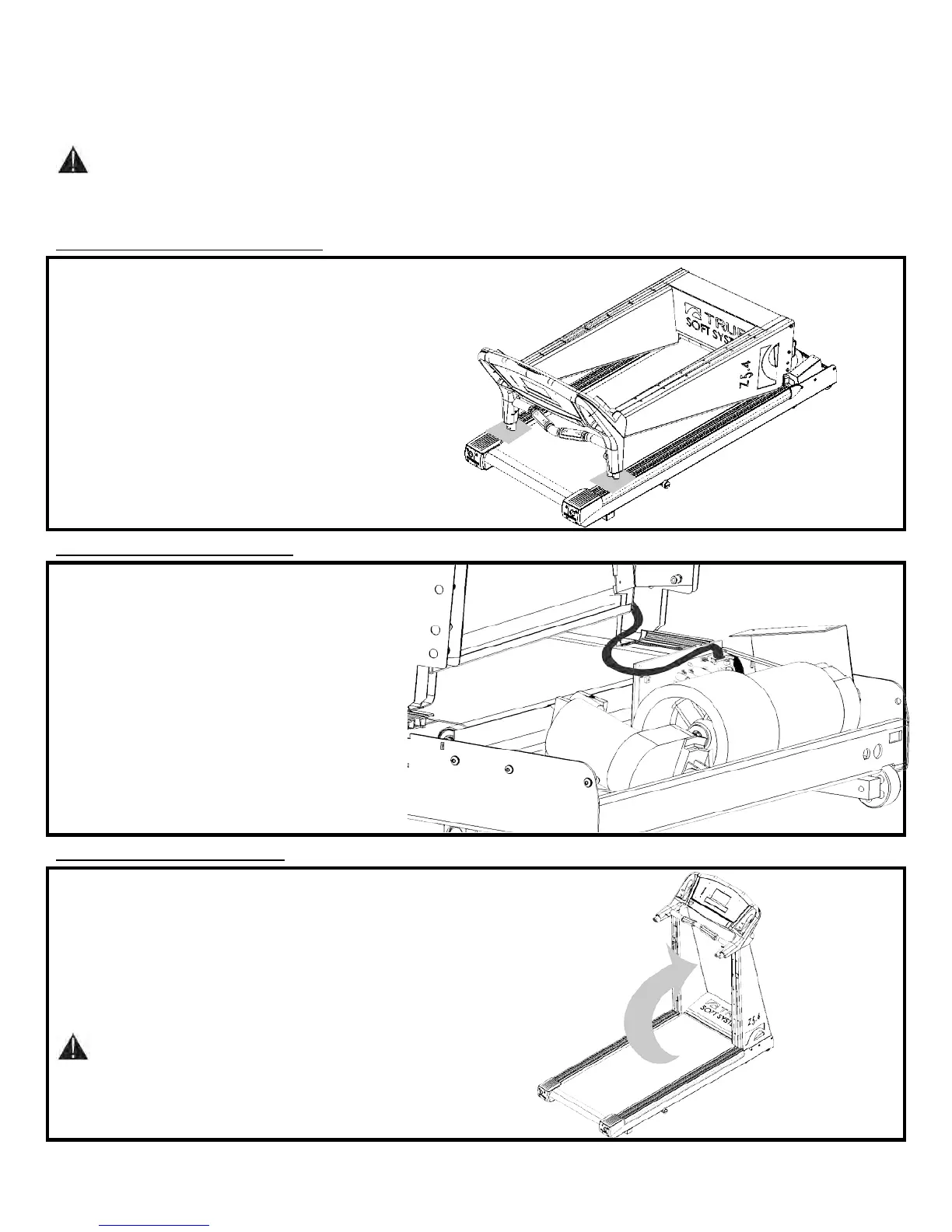

STEP 1 Assembly Preparation:
a
) Lay the Pedestal on the Treadmill Frame. Use
cardboard packing material to protect the
straddle covers from damage.
STEP 2 Cable Connection:
a
) Route the cable coming from the bottom of
the Pedestal to the lower control board and
connect.
Note: Route the cable to toward the center of the
treadmill to avoid damaging the cable.
STEP 3 Position Pedestal:
a
) Lift the Pedestal into an upright position.
CAUTION:
Pedestal can pivot until secured. Do not grab top
of pedestal.
