True Z5.0 - Assembly Steps

CHAPTER 2: ASSEMBLY INSTRUCTIONS
Truefitness.com / 800.426.6570 / 636.272.7100 11
TREADMILL ASSEMBLY STEPS (continued):

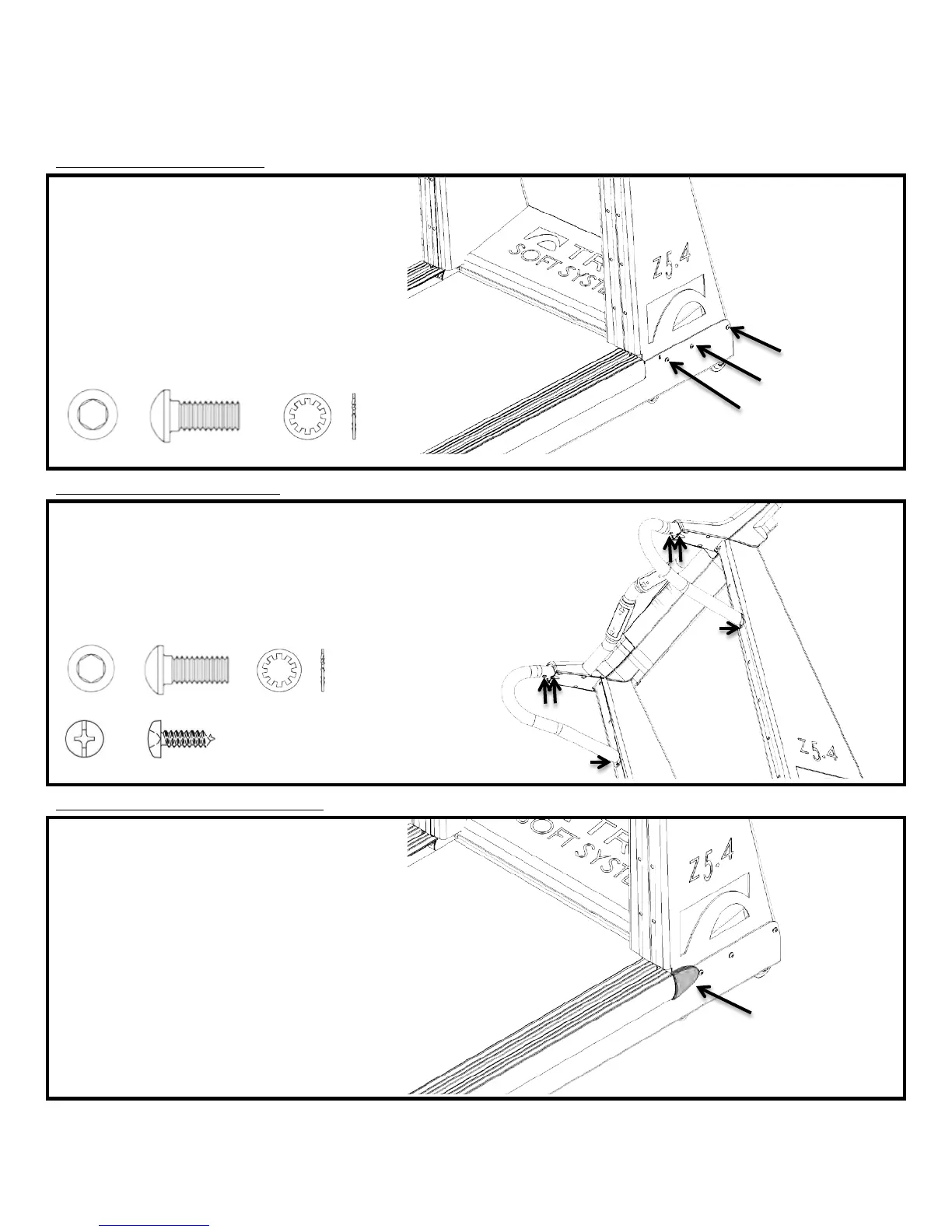

STEP 4 Secure Pedestal:
a
) Insert 2 socket cap screws with star washers
into the front holes on both sides of the
treadmill, but do not tighten.
b) Repeat the process for the rear holes on each
side of the treadmill.
c) Repeat the process for the middle holes on
each side of the treadmill.
d) Tighten all six screws.
Hardware Required:
6 Socket Cap Screws
6 star washers
STEP 5 Attach Handrails:
a) Insert 2 socket cap screws and 2 star washers
under the top of each handrail. But don’t
tighten.
b) Insert 1 self-tapping screw at the base of each
hand rail and then tighten all screws.
Hardware Required:
4 Socket Cap Screws
4 star washers
2 Self-Tapping Screws
STEP 6 Install Trim End Caps:
a) Snap the trim end caps into place on each side
of the treadmill.
First
Third
Second
