7

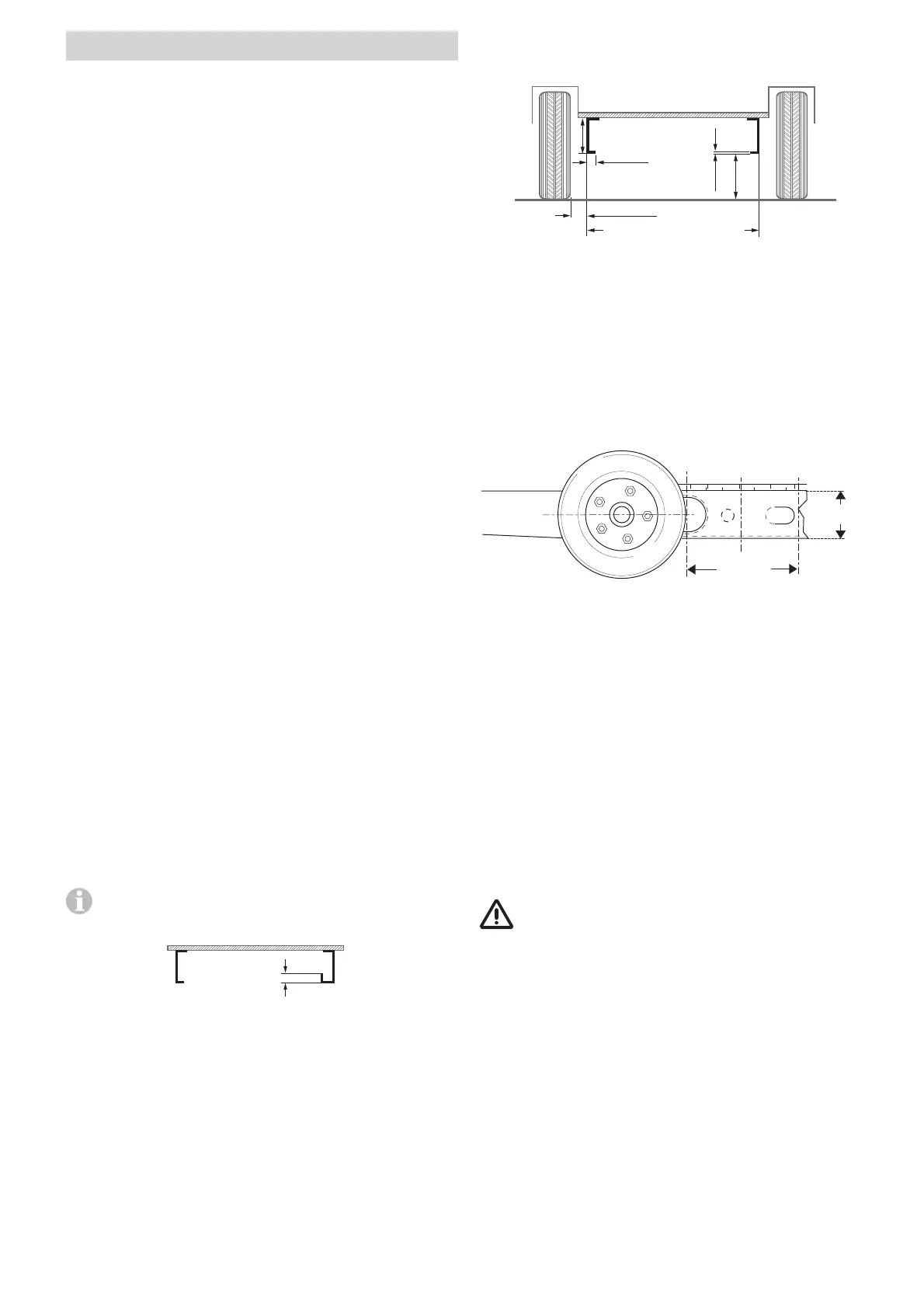

The equipment can only be fitted to caravans / trailers within
the following dimensions.
min.
170*
min. 1200 / max. 2000
min. 50 / max. 180
min. 25
min. 35 **
170
min. 2.8
Caravan floor
Fig. 5
All dimensions in mm.
* for a loaded vehicle with a max. allowed gross weight
** for U-profile
Measuring the frame height
A frame height of min. 170 mm is required about 340 mm
from the outer edge of the tyre at the height of the wheel
hub / centre.
340
min. 170
Fig. 6
Determining the installation type
1. Standard installation
Standard installation is used with a U-profile or L-profile chas-
sis and a frame height of approx. 170 mm. No special
accessories are required.
2. Installation with chassis with U-profile or L-profile
and frame height of between 125 and less 170 mm
With a chassis with a frame height of 125 mm to less
170 mm, 1, 2 or 3 spacer plate sets and the screw set are
needed to compensate for the height.
3. Installation with chassis with U-profiles or L-profiles
with frame height of less than 125 mm
With a chassis with a frame height of less than 125 mm a low
chassis kit must be fitted to compensate for the height.
In Germany, the low chassis kit installation must
be accepted by a vehicle expert.
4. The AL-KO Vario III / AV installation kit must be used
with the AL-KO Vario III / AV chassis with a frame thickness of
less than 2.8 mm.
5. For attachment in front of the axle on the AL-KO
chassis M with adjustable beams
The AL-KO chassis M adapter set (part no. 60030-38600)
must be used in order to compensate for overlapping frame
edges
6. For attachment in front of the axle on the AL-KO
chassis M with continuous frame
The AL-KO chassis M adapter set (part no. 60031-02000)
must be used in order to compensate for overlapping frame
edges
7. Installation with Eriba Touring chassis
The Eriba Touring mounting set is needed for the
Eriba Touring chassis.
Installation instructions
Read the installation instructions prior to starting work and
follow them carefully!
Please ensure that no metal chips or other contaminants get
into the controller during installation.
Intended use
The Caravan Mover® has been built for use with single-axis
caravans with a gross weight of up to 2000 kg.
The Caravan Mover® weighs approx. 34 kg with the
cross actuation device attached.
Check the towing load of your vehicle and the gross weight of
your caravan in order to establish whether they are designed
for the additional weight.
Approval
The Caravan Mover® satisfies other requirements stated in the
EU directives and standards (see declaration of conformity).
The technical and administrative regulations of the country in
which the vehicle is initially registered must be complied with
when the Caravan Mover® is being installed.
Any modifications to the unit, or the use of spare parts and
accessories that are important to the operation of the system
that are not original Truma parts and failure to follow the in-
stallation and operating instructions will cancel the warranty
and indemnify Truma from any liability claims. In addition to
this, the operational approval for the device will be cancelled.
Tools and facilities required
To install the unit you will need:
– 13 mm, 17 mm, 10 mm socket wrench, ring spanner or
open-jawed spanner
– Allen key 4
– Torque wrench (5 – 40 Nm)
– Cable cutter / Crimping tool
– Power drill / screwdrivers / 25 mm hole cutter
– Portable 2 tonne trolley jack and axle stands to suit
– Appropriate lighting
Minimum installation dimensions
A distinction is made between L-profiled and U-profiled
chassis as shown in the illustration.
Caravan floor
L-profiile
U-profile
max. 20
Fig. 4
