8
8. For attachment behind the axle on an Eriba Troll
chassis
The Eriba Troll mounting set is needed for the Eriba Troll
chassis.
9. Installation on chassis with L-profile and with a lim-
ited amount of space
The short mounting system is required to compensate for
the height (30 or 60 mm) with substructures such as tanks.

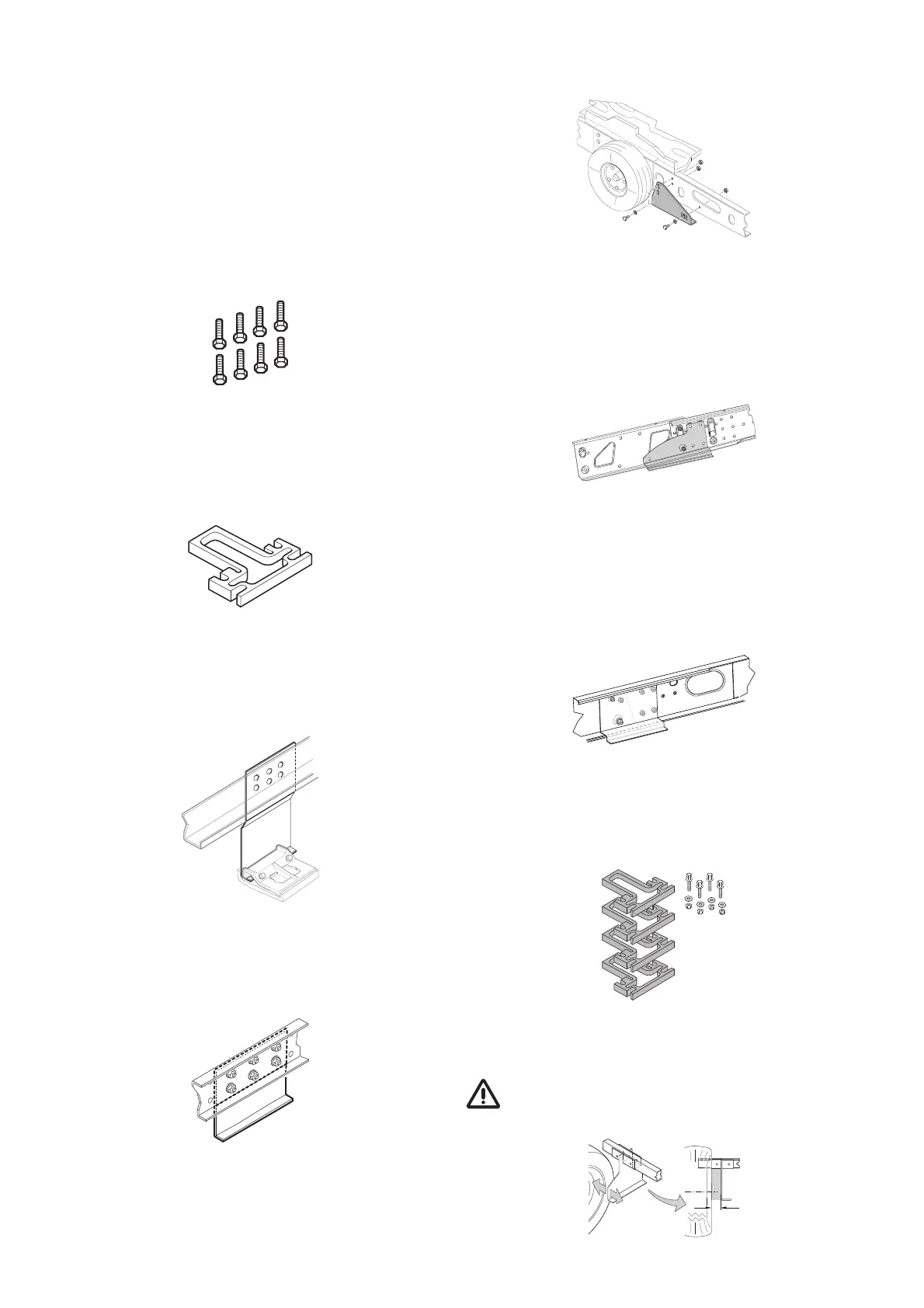

Special accessory installation
1. Set of screws
For height compensation with spacer plates, max. 45 mm
eight DIN 933 screws M10 x 95 8.8, galvanized,
part no. 60010-70000.
Fig. 7
2. Spacer plate kit
(two 15 mm spacer plates)
For height compensation max. 45 mm (3 plates) at each side
(e.g. installed behind axle),
part no. 60010-66000.
Fig. 8
3. Low chassis kit
To compensate for the height difference for caravans / trailers
with a frame height of less than 125 mm and / or for bridg-
ing struts,
part no. 60010-64900.
Fig. 9
4. Low chassis kit, short
To compensate for the height difference for caravans / trailers
with a frame height of less than 125 mm,
part no. 60030-37600.
Fig. 10
5. AL-KO Vario III / AV
Installation kit for caravans with AL-KO Vario III / AV Chassis
(frame thickness less than 2.8 mm) mandatory,
part no. 60010-21500.
Fig. 11
6. AL-KO Chassis M
adapter kit for chassis with axial displacement with a
permitted gross weight of 1800kg
Mounting set to compensate for frame edges for caravans
with AL-KO Chassis M. Mounting set is needed for mounting
in front of the axle,
part no. 60030-38600.
Fig. 12
7. AL-KO Chassis M
adapter kit for chassis with a continuous frame and a
permitted gross weight of 1900kg to 2000 kg
Mounting set for compensating for frame edges for cara-
vans with AL-KO Chassis M. The mounting set is needed for
mounting in front of the axle,
part no. 60031-02000
Fig. 13
8. Spacer plate set for single-axle
caravans up to a total weight of 1700 kg with chassis AL-KO
Vario III / AV (2 x 4 spacer plates à 15 mm) to compensate
height differences of up to 60 mm,
part no. 60010-70500.
Fig. 14
9. Caravan Mover® mounting set for Eriba-Touring,
part no. 60030-09000.
Installation is not possible in some cases because of
attachments to the underbody.Contact your dealer if
necessary.
60 - 100 mm
Fig. 15
