S1/S2 Assembly Instructions – Rev N Page 24
18. ARM TRAVEL LIMITER INSTALLATION

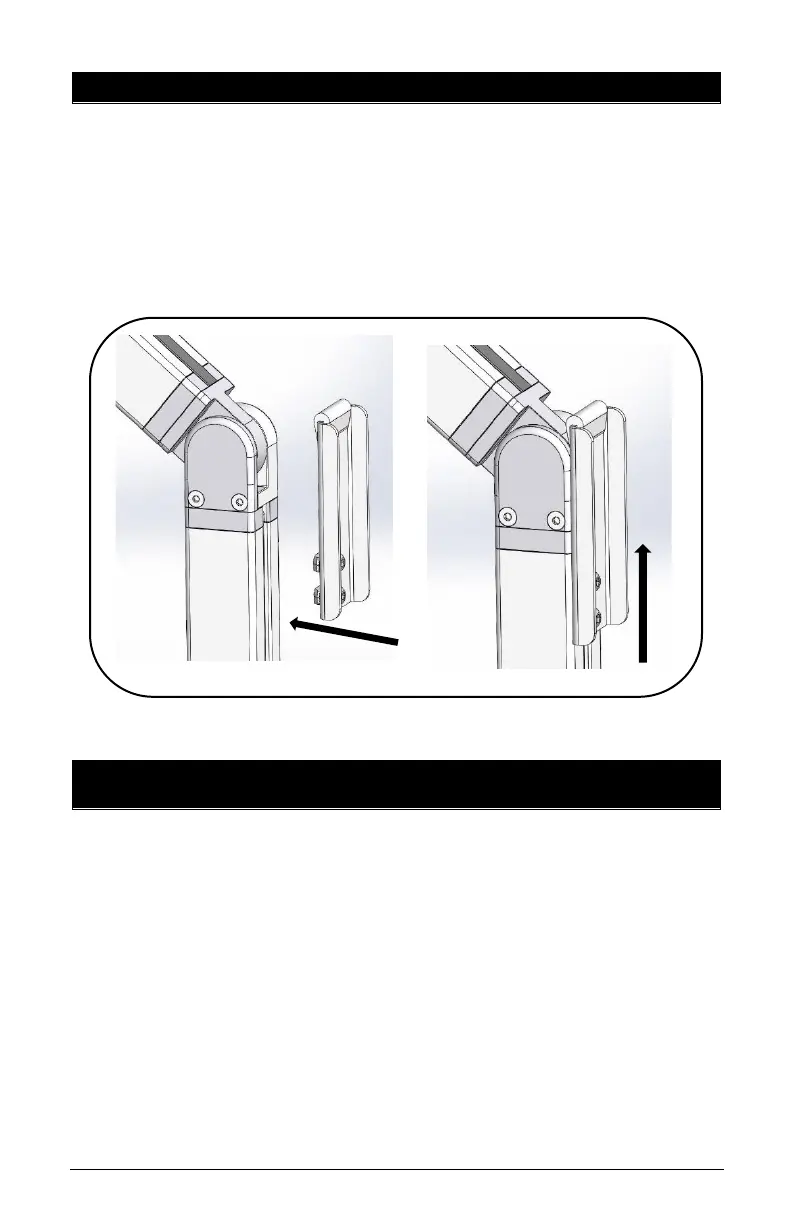

• Remove channel cover strip (ref. point 5).
• Install Travel Limiter bracket to extrusion with two (2)
screws and two (2) Z-nuts.
• Slide bracket up until it stops.
• Tighten 2 screws using Hex L-Key provided.
END OF ASSEMBLY INSTRUCTIONS
