TSC DA210 Series Service Manual

DA210/ DA310/ DA220/ DA320
Bar Code Printer Service Manual
14

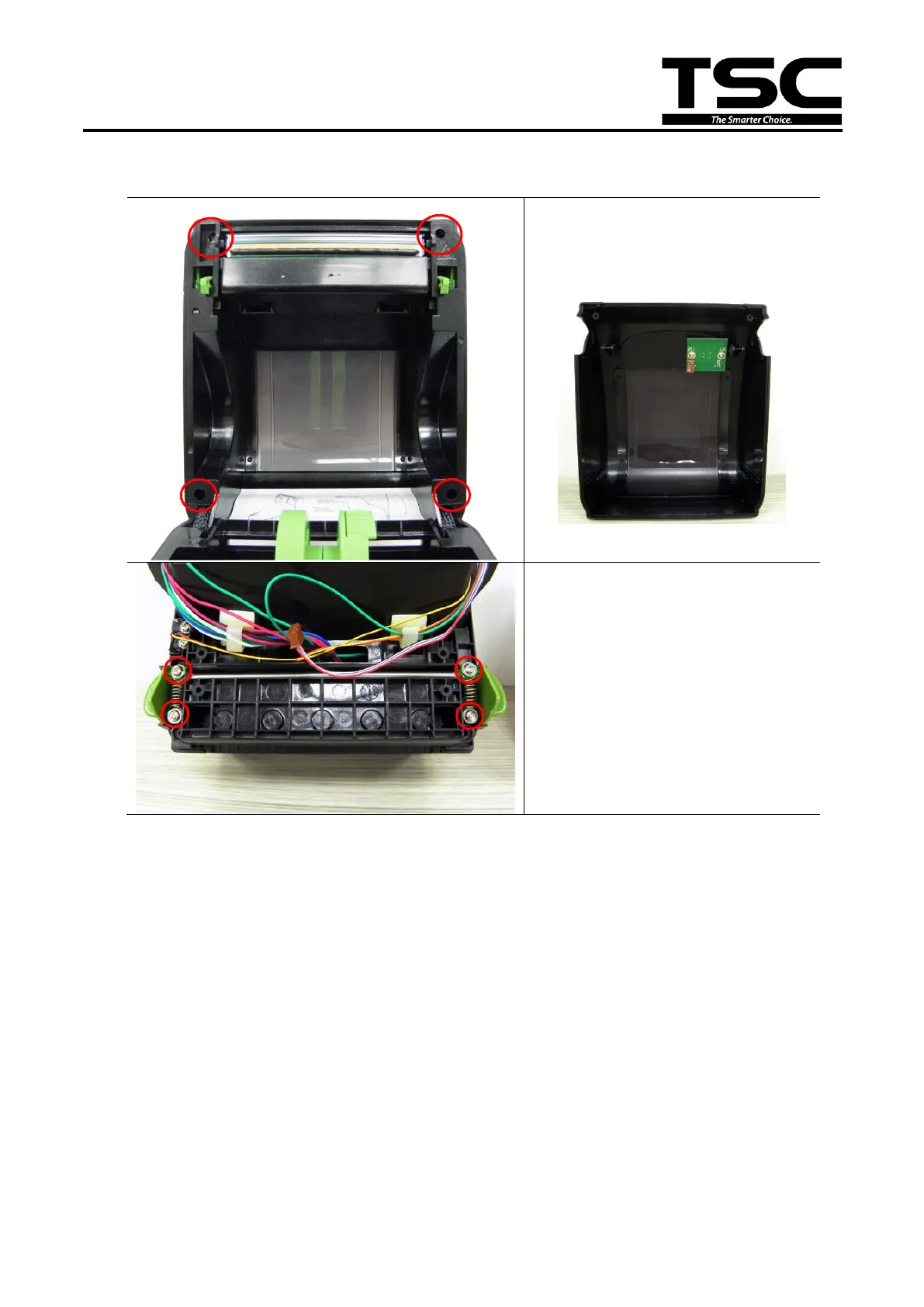

3.2 Replacing the Top Cover Open Lever Assembly
1. Please refer to section 3.1 to
remover the top cover.
2. Remove four screws on as
picture shown on the levers.
3. Take out two springs.
4. Remove/Replace the top
cover open lever assembly.
5. Reassemble the parts in the
reverse procedure.

TSC DA210 Series Specifications

General

Resolution	203 dpi / 300 dpi
Print Speed	Up to 6 ips (inches per second)
Processor	32-bit RISC
Interface	USB 2.0
Scanning Technology	Thermal transfer / Direct thermal
Scanning Speed	Up to 6 ips (inches per second)
Scanning Resolution	203 dpi / 300 dpi
Scanning Distance	N/A (Not applicable for barcode printers)
Additional Interface	Bluetooth (optional)
Power Supply	AC 100-240V, 50/60Hz
Operating Temperature	5 ~ 40°C (41 ~ 104°F)
Storage Temperature	-40 ~ 60°C (-40 ~ 140°F)
Humidity	20% to 85% (non-condensing)
Supported Barcode Types	Code 39, Code 128, UPC-A, UPC-E, EAN-8, EAN-13, PDF-417, DataMatrix, QR code
