TSC DA210 Series Service Manual

DA210/ DA310/ DA220/ DA320
Bar Code Printer Service Manual
15

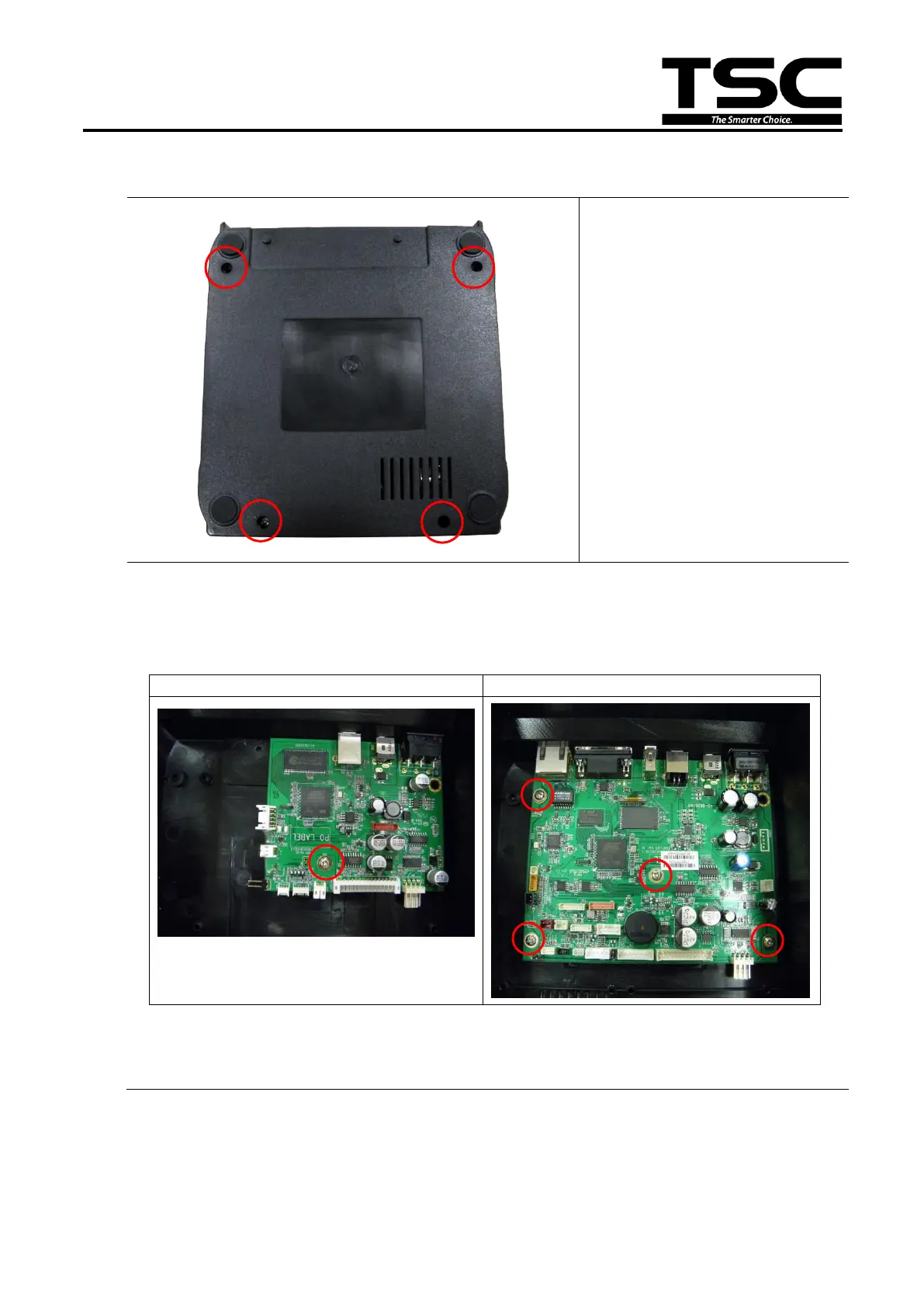

3.3 Replacing the Main Board Assembly
1. Remove four screws on the
printer lower cover.
2. Disconnect all connectors on the main board.
3. For DA210 series, remove one screw to replace the main board assembly.
For DA220 series, remove four screws to replace the main board assembly.
DA210/DA310 series
DA220/DA320 series
4. Reassemble the parts in the reverse procedure.
