TSC DA210 Series Service Manual

DA210/ DA310/ DA220/ DA320
Bar Code Printer Service Manual
32

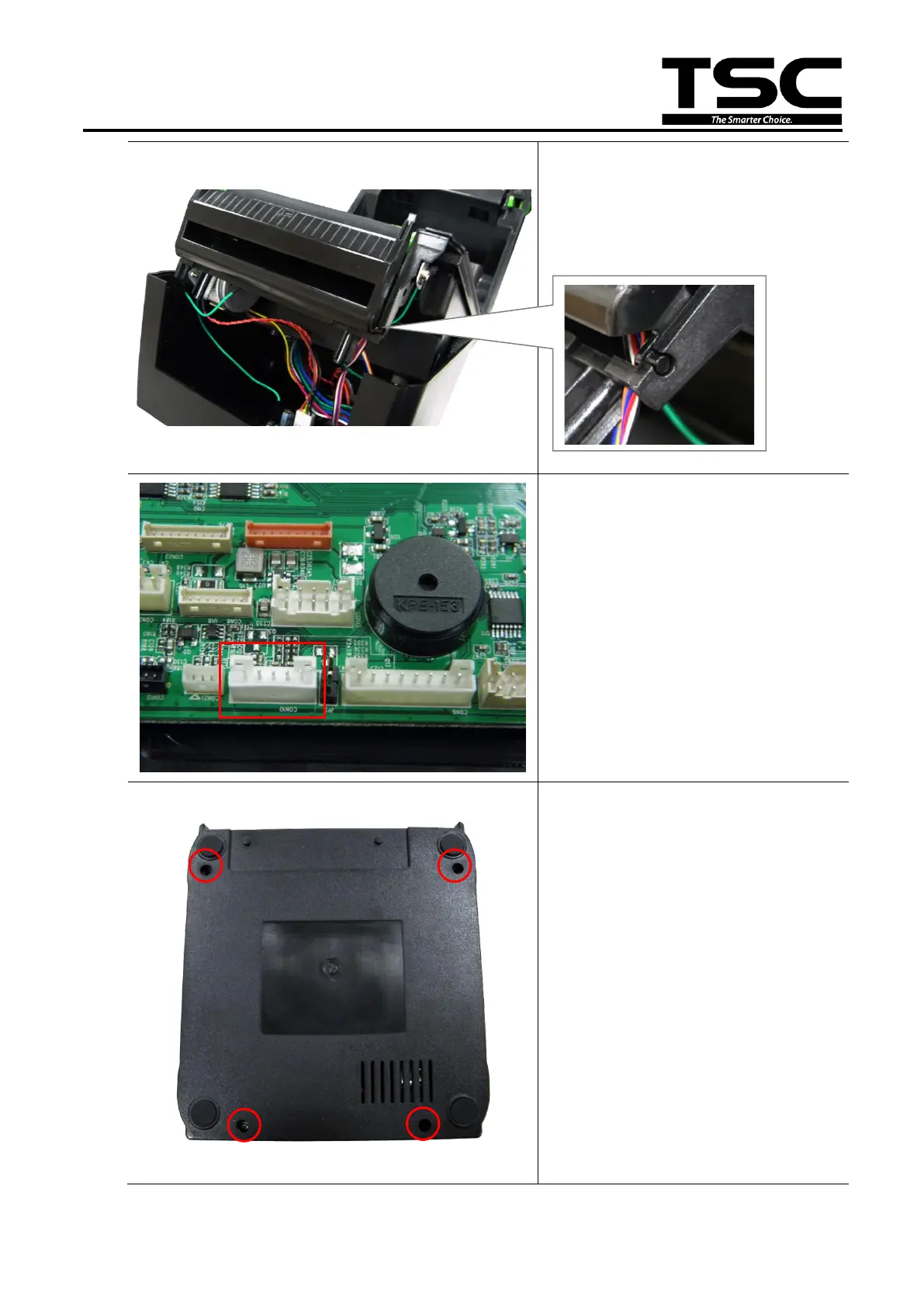

5. Embed the tenons into the
both sides mortise of lower
inner cover and close the
peel-off cover.
6. Connect the peel-off module
harness connector to the
5-pin socket on the printer
main board as shown.
7. Fasten 4 screws back on the
printer lower cover.

TSC DA210 Series Specifications

General

Resolution	203 dpi / 300 dpi
Print Speed	Up to 6 ips (inches per second)
Processor	32-bit RISC
Interface	USB 2.0
Scanning Technology	Thermal transfer / Direct thermal
Scanning Speed	Up to 6 ips (inches per second)
Scanning Resolution	203 dpi / 300 dpi
Scanning Distance	N/A (Not applicable for barcode printers)
Additional Interface	Bluetooth (optional)
Power Supply	AC 100-240V, 50/60Hz
Operating Temperature	5 ~ 40°C (41 ~ 104°F)
Storage Temperature	-40 ~ 60°C (-40 ~ 140°F)
Humidity	20% to 85% (non-condensing)
Supported Barcode Types	Code 39, Code 128, UPC-A, UPC-E, EAN-8, EAN-13, PDF-417, DataMatrix, QR code
