TSC DA210 Series Service Manual

DA210/ DA310/ DA220/ DA320
Bar Code Printer Service Manual
8
8

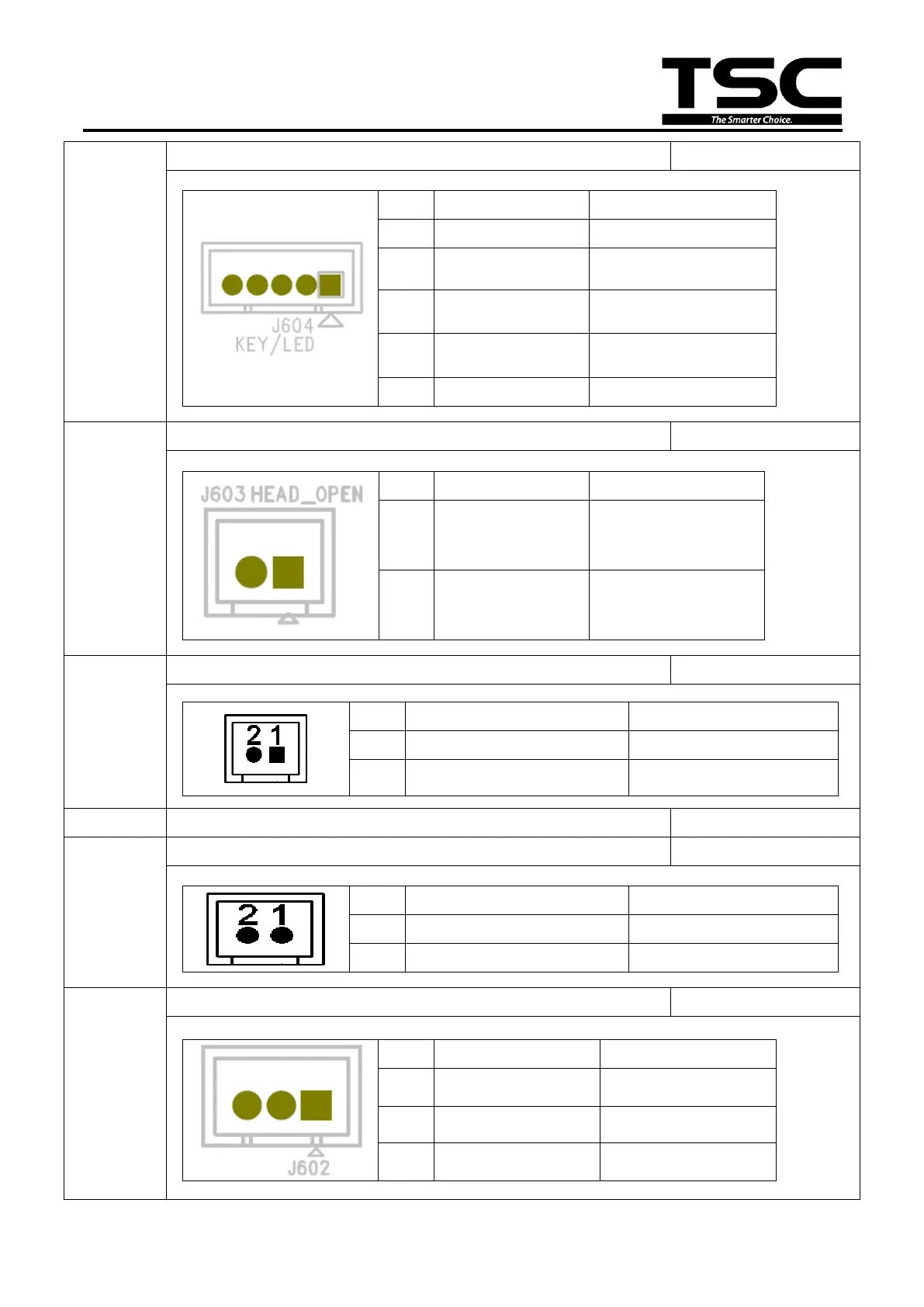

LED & KEY connector
CON19
Pin
Description
Voltage
1
POWER
3.3V
2
LED Green
LED light on:1.1~1.4V
LED light off:1.6~1.9V
3
LED Red
LED light on:1.4~1.7V
LED light off:1.8~2.1V
4
KEY
0V: Push key
3.3V: Stand-by
5
GND
0V
9
Head open sensor connector
CON1
Pin
Description
Voltage
1
Head open switch
0V : Head close
3.3V : Head open
2
GND
0V
10
GAP sensor connector (for Transmit signals)
CON20
Pin
Description
Voltage
1
Power
3.3V
2
Gap sensor emitter
Emitter on : 2.1~2.3V
Emitter off: 2.6~2.8V
11
Wi-Fi / Bluetooth connector
CON13
12
ESD_GND_PIN
JP1
Pin
Description
Voltage
1
GND
0V
2
GND
0V
13
BM sensor connector
CON21
Pin
Description
Voltage
1
Power
3.3V
2
BM sensor emitter
2.1~2.2V: Emitter on
2.6~2.7V: Emitter off
3
BM sensor receiver
A/D : 0~3.3V

TSC DA210 Series Specifications

General

Resolution	203 dpi / 300 dpi
Print Speed	Up to 6 ips (inches per second)
Processor	32-bit RISC
Interface	USB 2.0
Scanning Technology	Thermal transfer / Direct thermal
Scanning Speed	Up to 6 ips (inches per second)
Scanning Resolution	203 dpi / 300 dpi
Scanning Distance	N/A (Not applicable for barcode printers)
Additional Interface	Bluetooth (optional)
Power Supply	AC 100-240V, 50/60Hz
Operating Temperature	5 ~ 40°C (41 ~ 104°F)
Storage Temperature	-40 ~ 60°C (-40 ~ 140°F)
Humidity	20% to 85% (non-condensing)
Supported Barcode Types	Code 39, Code 128, UPC-A, UPC-E, EAN-8, EAN-13, PDF-417, DataMatrix, QR code
