- 28 -

4.2 Ribbon Tension Adjustment Knob Module

Ribbon Tension Adjustment Knob has five positions for adjustment. Because the printer’s ribbon alignment is

to the left side of mechanism, different ribbon or media widths require different ribbon tension to print

correctly. Therefore, it may require to adjust the ribbon tension adjustment knob to avoid wrinkle and get the

best print quality.

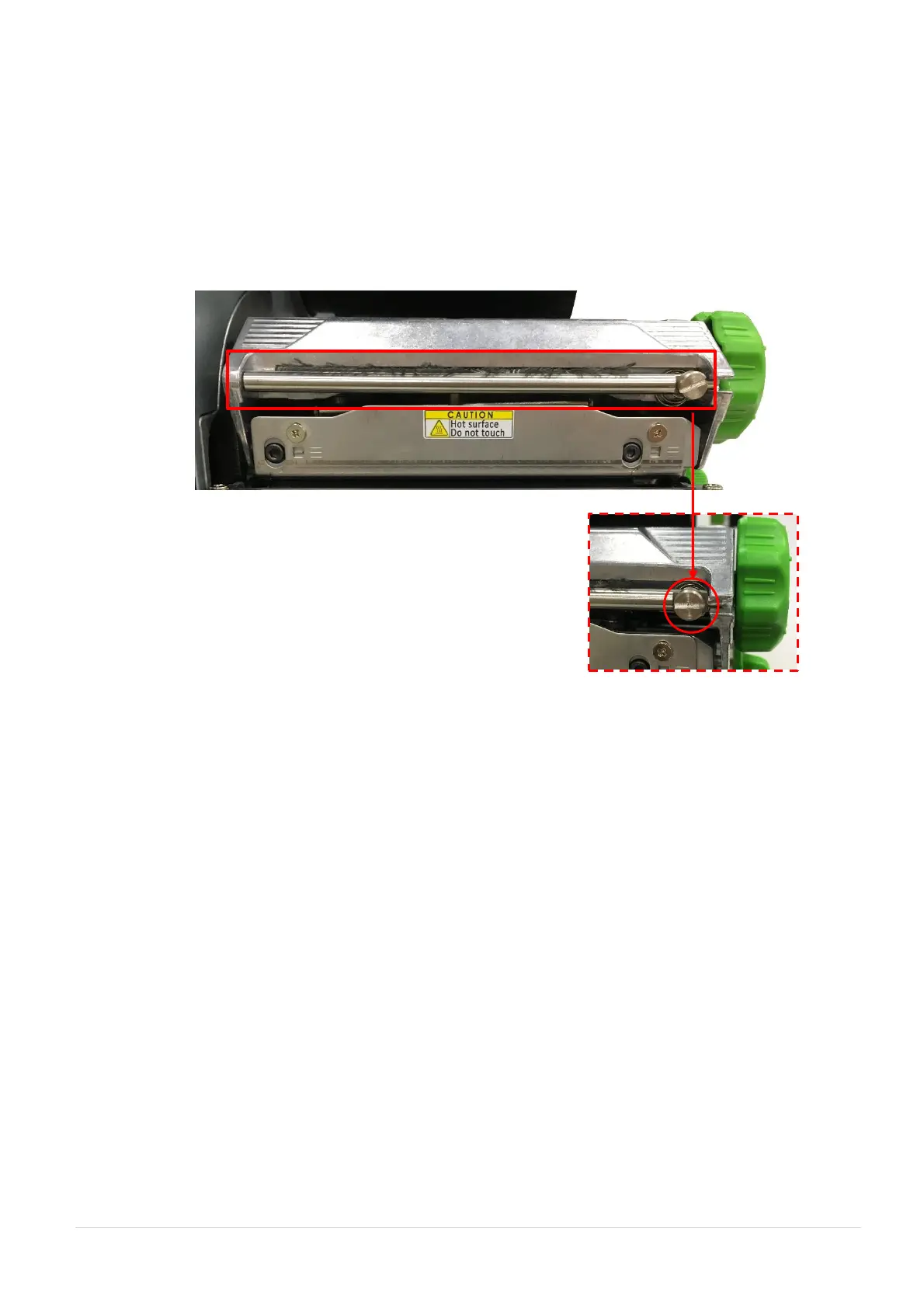

Ribbon Tension Adjustment Knob
