21

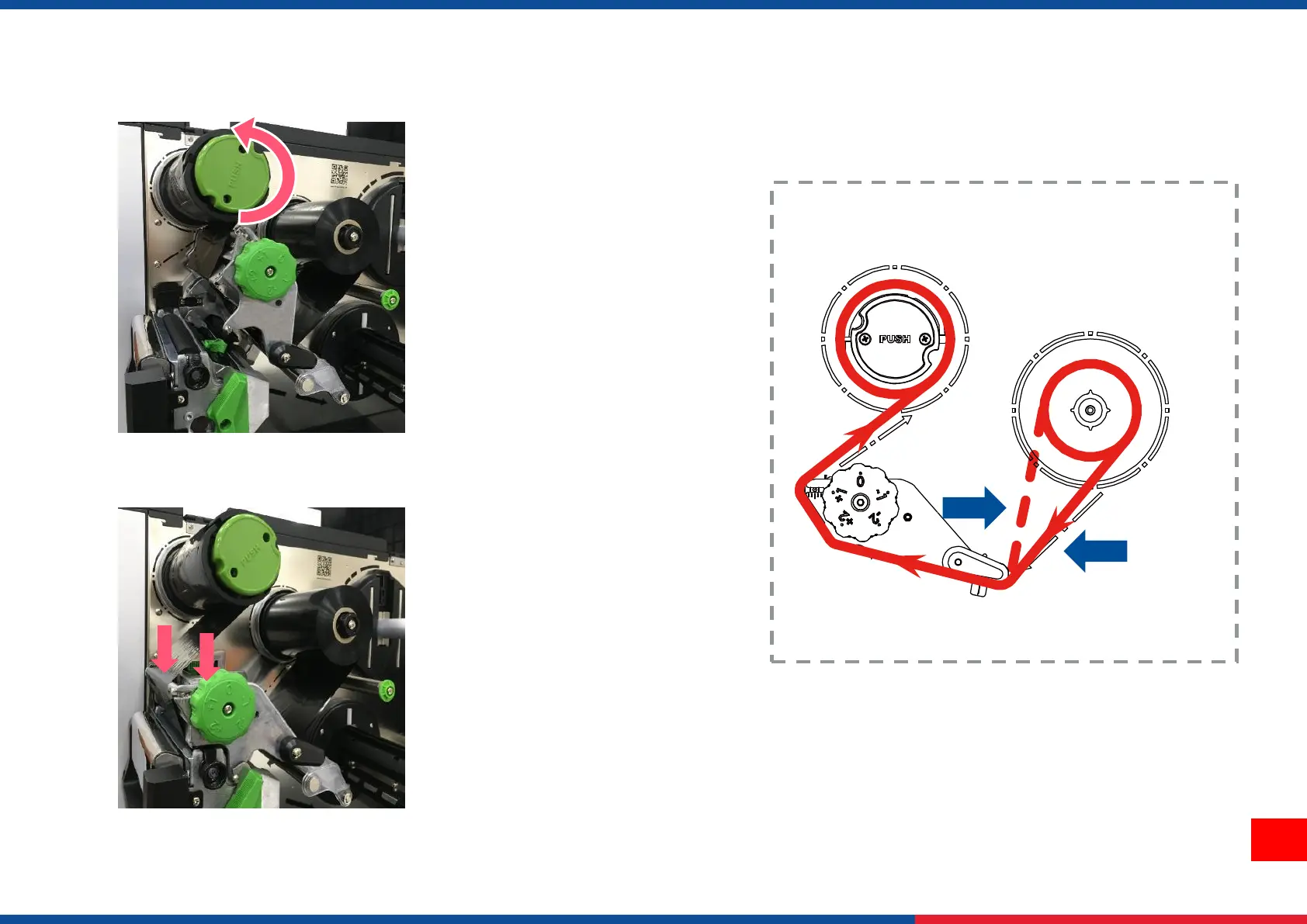

5.
W
ind the
ribbon rewind spind
le
counterclockwise roughly 3~5
circles until the ribbon
is
smooth, properly stretched and
wrinkle-free.
6.
Close the print head mechanism
and the lever
.
Ribbon L
oading Path
Ink coated inside
Ink coated ou
tside
25
27
