TSC MH240 User Manual

25

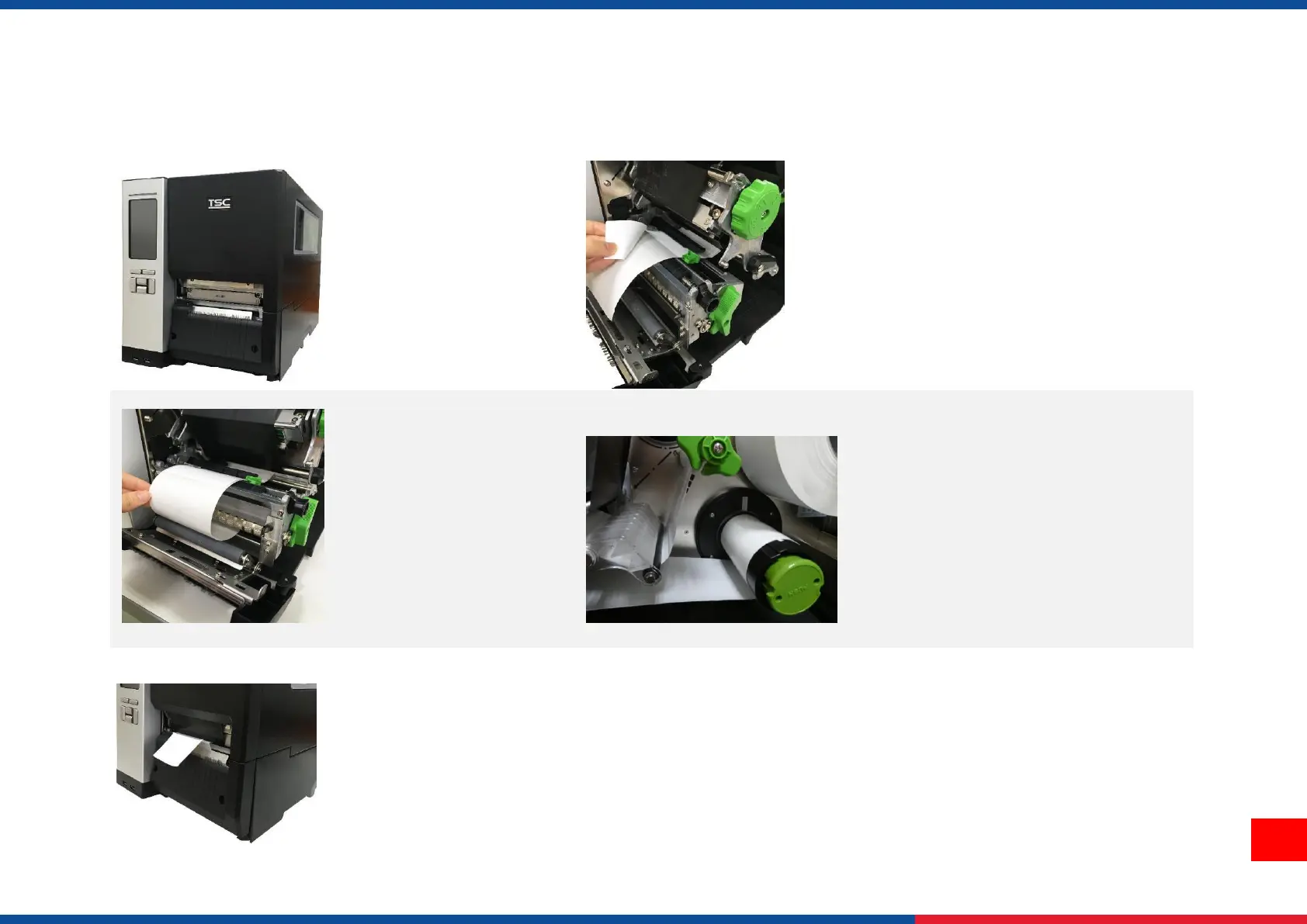

3.5 Loading Media in Peel-off Mode (Option)
1. Open the media
cover and load the
meida.
2. Release lever, pull the label off
about 650mm and remove the
label. Remove several labels to
leave liner.
3. Theread the label as
indicated and set
printer mode to
Peeler Mode.
4. Feed the leading edge of liner
through the peel-off module slot as
indicated and attach the liner to the
liner rewind spindle and turn
several circles
5. Close print head
release lever and
use the front display
panel to set the print
mode to “Peel
off”.Press the FEED
button to test.

TSC MH240 Specifications

General

Print technology	Direct thermal / Thermal transfer
Maximum resolution	203 x 203 DPI
Maximum printing width	104 mm
Display type	LCD
Product color	Black
Built-in display	Yes
Display resolution	320 x 240 pixels
Maximum media length	25400 mm
Maximum roll diameter	203.2 mm
Supported paper width	20 - 114 mm
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Serial interface type	RS-232
Connectivity technology	Wired & Wireless
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	5 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	25 - 85 %
Sustainability certificates	ENERGY STAR
Ethernet LAN data rates	10, 100 Mbit/s
Flash memory	512 MB
Storage media	Flash
Internal memory	256 MB
Built-in barcodes	1D, 2D, AZTECCODE, Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Code-128 Codabar Library, Data Matrix, EAN128, EAN13, EAN8, GS1 DataBar, Interleaved 2/5, MaxiCode, MicroPDF417, PDF417, QR Code, UPC-A, UPC-E
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	32 GB
Page description languages	TSPL-EZ

Weight and Dimensions

Depth	502 mm
Width	276 mm
Height	326 mm
