23

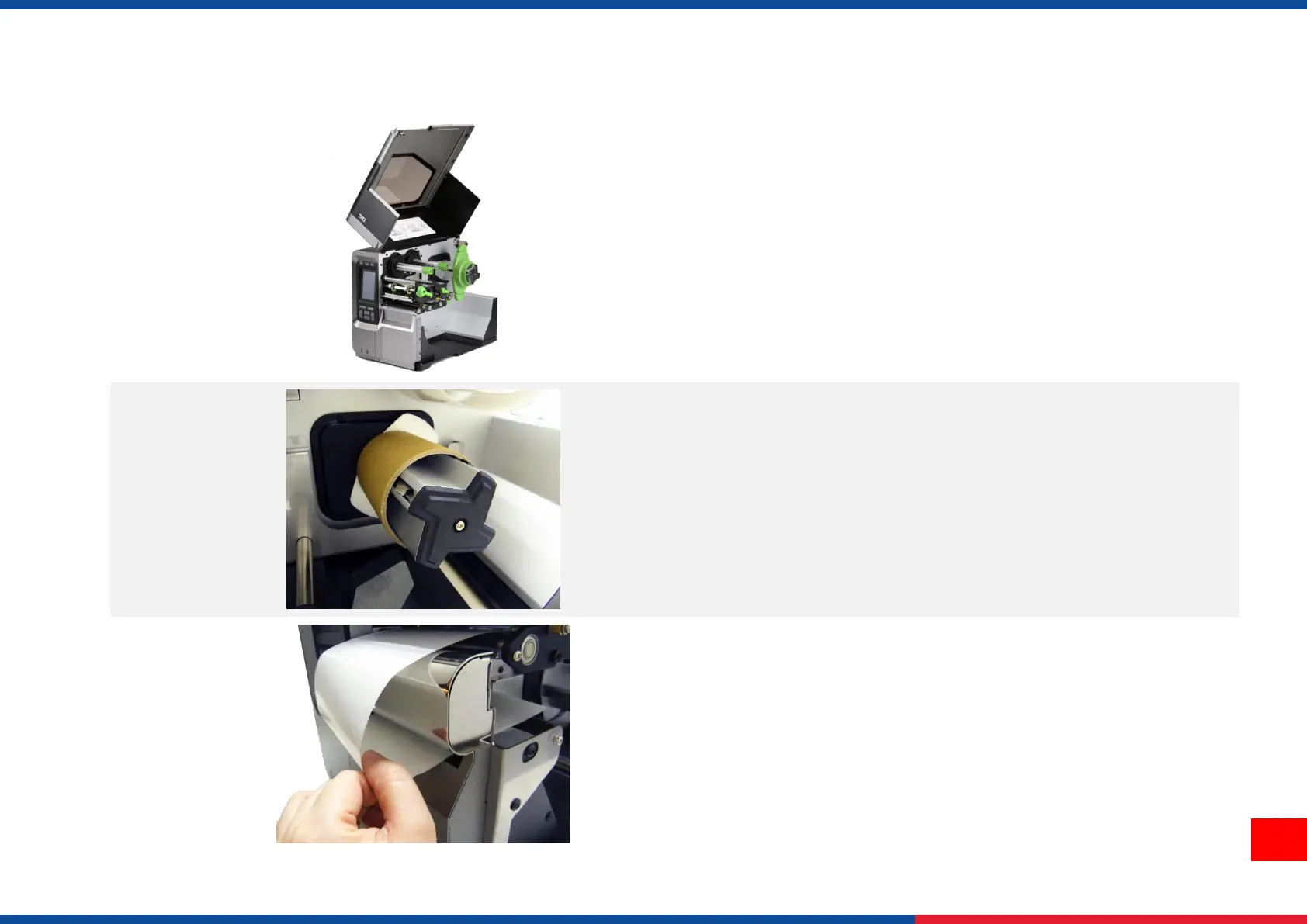

3.6 Loading Media in Rewinder Mode (Option)
1.
Open the meida cover
.
2.
Install the paper core on the rewind spindle.
3.
Open print head release lever and label guide
bar
release lever to pull approximately 650mm of label
through the front of the printer
.
4.
Feed the leading edge of media through the r
edirect
front panel as picture shown.
27
29
Table of Contents
Table of Contents
3
Introduction
6
Product Specification
7
Operation Overview
10
Unpacking and Inspection
10
Printer Overview
11
Front View
11
Interior View
12
Rear View
13
Operator Control
14
LED Indication and Keypads
15
Touch Screen Manipulation
17
Setup
18
Setting up the Printer
18
Loading the Ribbon
19
Loading the Media
21
Loading the Fanfold/External Media
24
Loading Media in Peel-Off Mode (Option)
25
Loading Media in Rewinder Mode (Option)
28
Knob Adjustment
30
Ribbon Tension Adjustment Knob
31
Mechanism Fine Adjustment to Avoid Ribbon Wrinkles
32
Suggestion of Ribbon Tension Adjustment
35
TSC Console
37
Start TSC Console
37
Setup Ethernet Interface
39
Set Wifi and Add to TSC Console Interface
41
Initialize the Printer Wifi Setting
44
TPH Care
45
Printer Function
46
Setting Post-Print Action
47
LCD Menu Function
48
Enter the Menu
48
Menu Overview
49
Setting
50
Tspl
51
Zpl2
53
Sensor
56
Interface
57
Serial Comm
58
Ehernet
59
Wi-Fi
60
Bluetooth
61
Gpio
62
Advanced
67
File Manager
69
Diagnostic
70
Favorites
71
Troubleshooting
72
Maintenance
75
Angency Complicance and Approvals
77
Revise History
83
