For 3” width ribbon
If the ribbon width is 3”, adjust both ribbon tension adjustment knobs to the #2 on ribbon supply & rewind spindles.
For 2” width ribbon
If the ribbon width is 2”, adjust both ribbon tension adjustment knobs to the #3 on ribbon supply & rewind spindles.

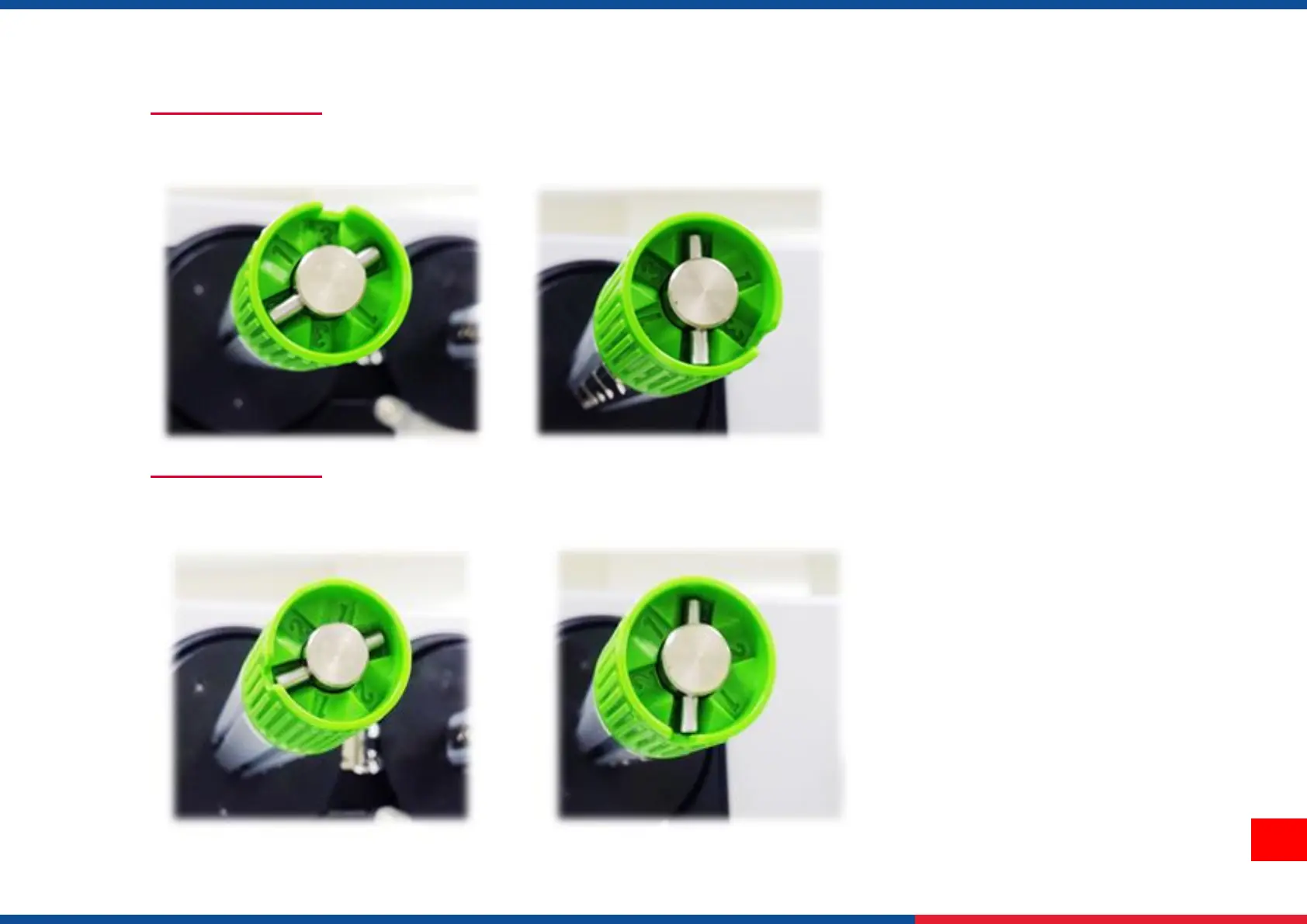

Ribbon Supply Spindle Tension # 2
Ribbon Rewind Spindle Tension # 2
Ribbon Rewind Spindle Tension # 3
Ribbon Supply Spindle Tension # 3
