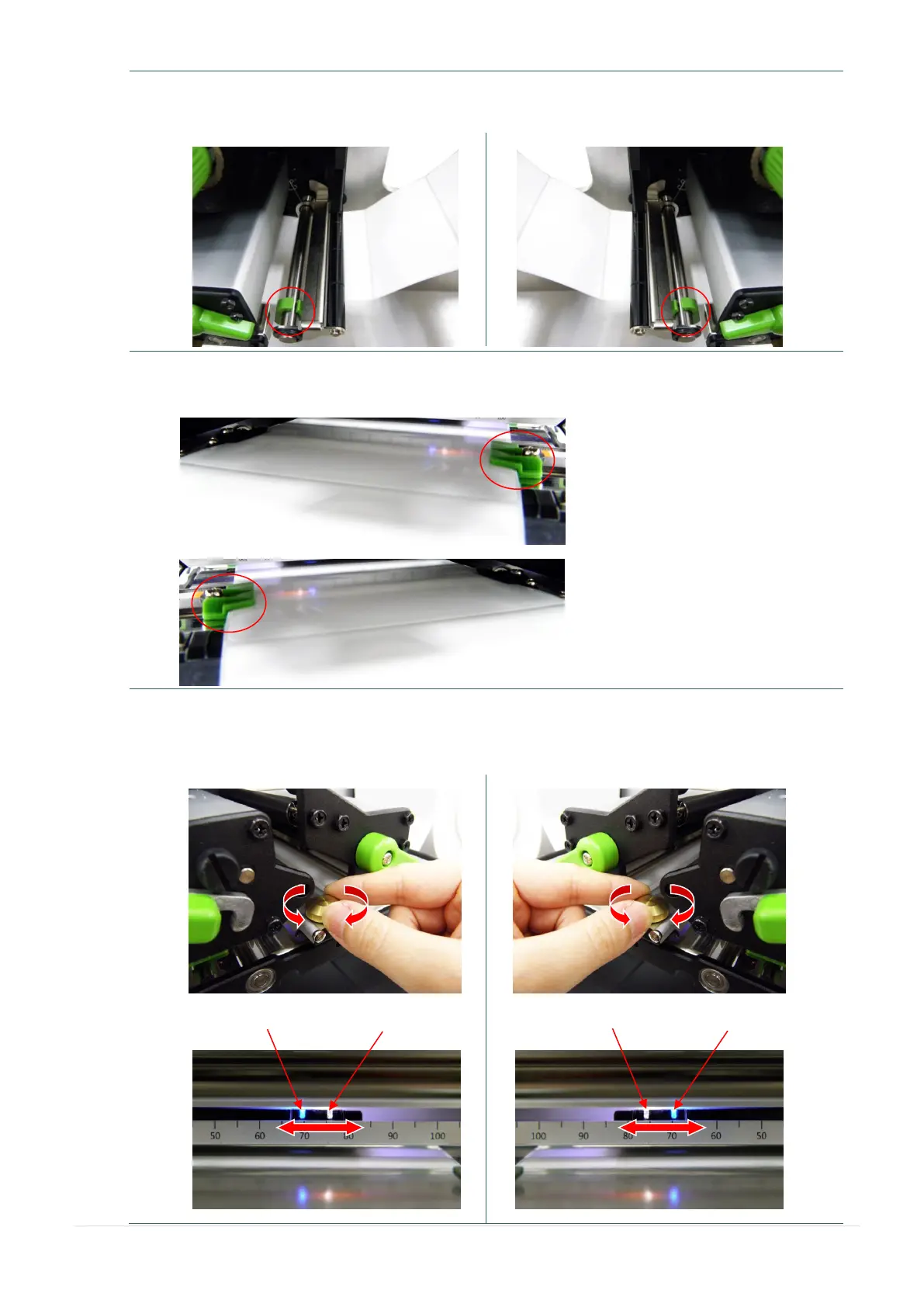

4. Adjust the rear label guide (green) to fit the label width.
Left-hand model
Right –hand model
5. Adjust the front label guide (green) to fit the label width.
Left-hand model
Right –hand model
6. Move the media sensor by adjusting the media sensor position adjustment knob, make sure the
gap or black mark sensor is at the location where media gap/black mark will pass through for
sensing.
Left-hand model
Right –hand model
Black mark (Blue)
Print head
GAP (White)
Print
head
Black mark (Blue)
Print head
GAP (White)
Print
head
