TSC PRINTRONIX TX210 Series - Interior View

8

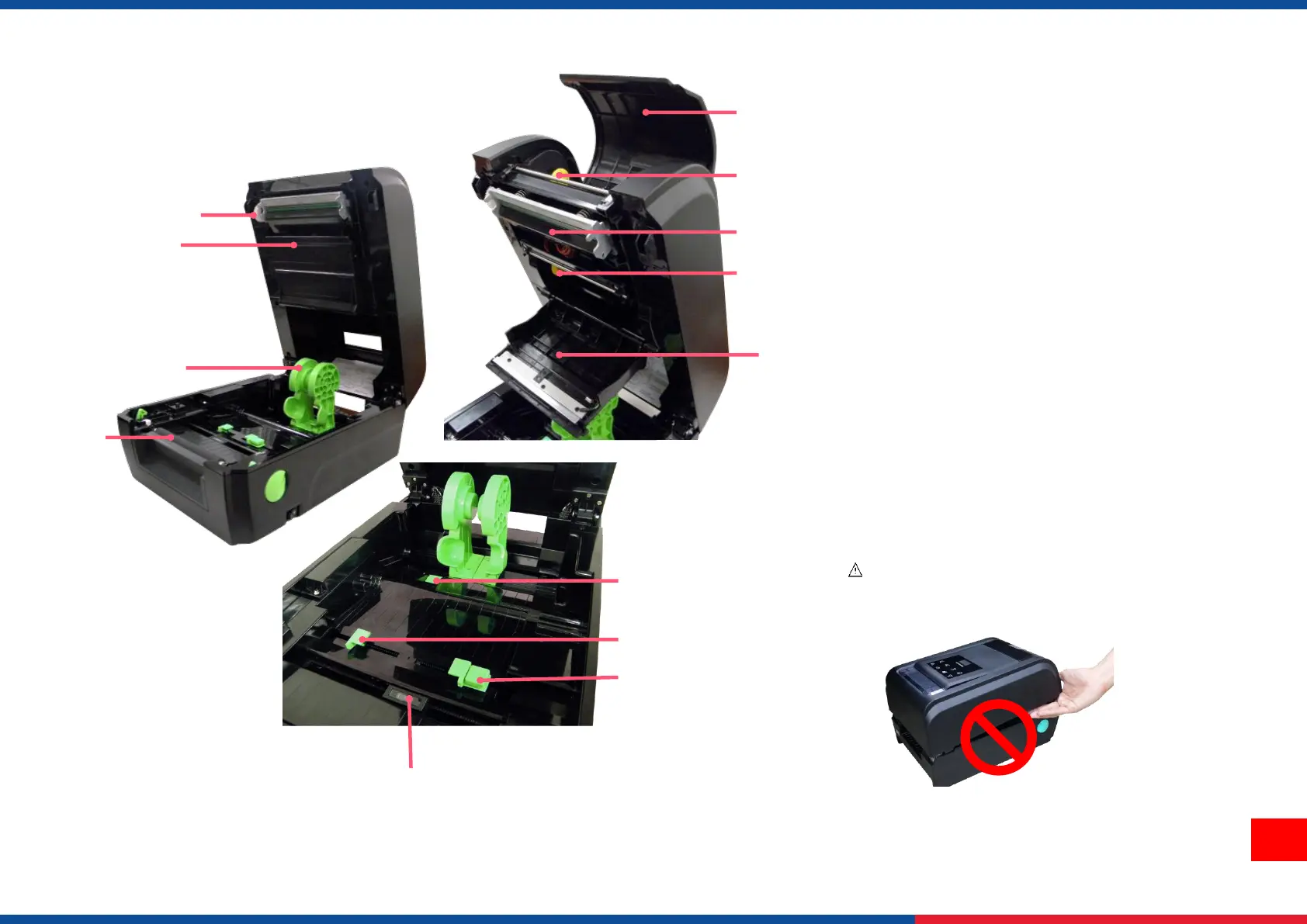

2.2.2 Interior View
7
6
1
2
3
4
10
12
8
5
9
13
11
Caution:
Keep fingers and other body parts
away from the printer cover.
1. Ribbon rewind gear
2. Gap sensor (transmitter)
3. Media holder
4. Platen roller
5. Ribbon access cover
6. Ribbon rewind hub
7. Print head
8. Ribbon supply hub
9. Ribbon cover
10. Media holder locking switch
11. Media guides
12. Media guide adjustment button
13. Black mark sensor/ Gap sensor (receiver)
