TC200/ TC300/ TC210/ TC310
Bar Code Printer Service Manual
14
3. MECHANISM
Please turn off the power switch and unplug the power adapter before replacing parts.

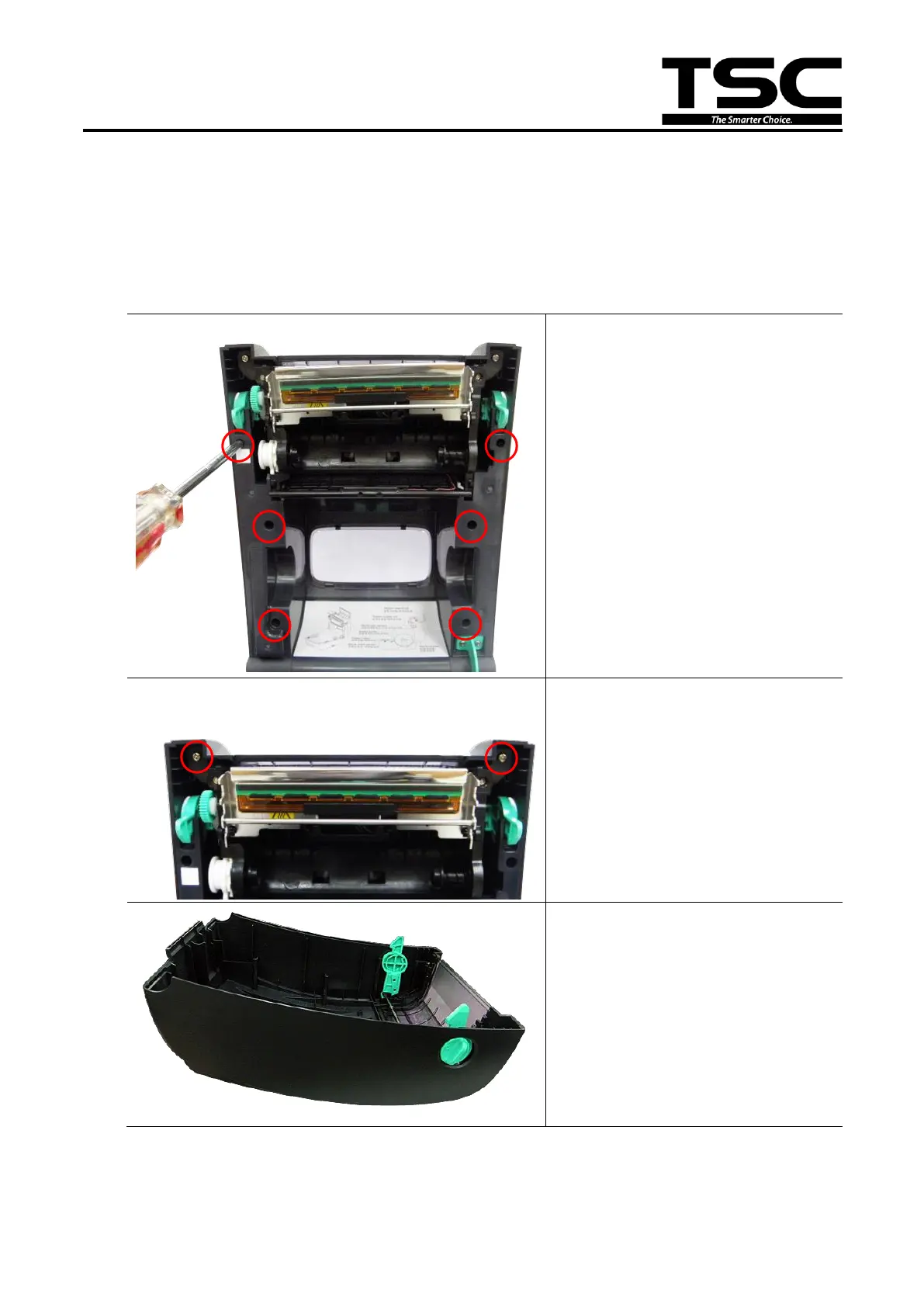

3.1 Replacing LED (Or LCD) Module
1. Open the printer top cover.
Remove 6 screws from the top
inner cover.
2. Remove 2 screws that hold
the print head bracket.
3. Disconnect the harness from
the LCD (or LED) PCB to
remove the top cover.
To Next Page
