TSC TC210 Series User Manual

TC200/ TC300/ TC210/ TC310
Bar Code Printer Service Manual
20

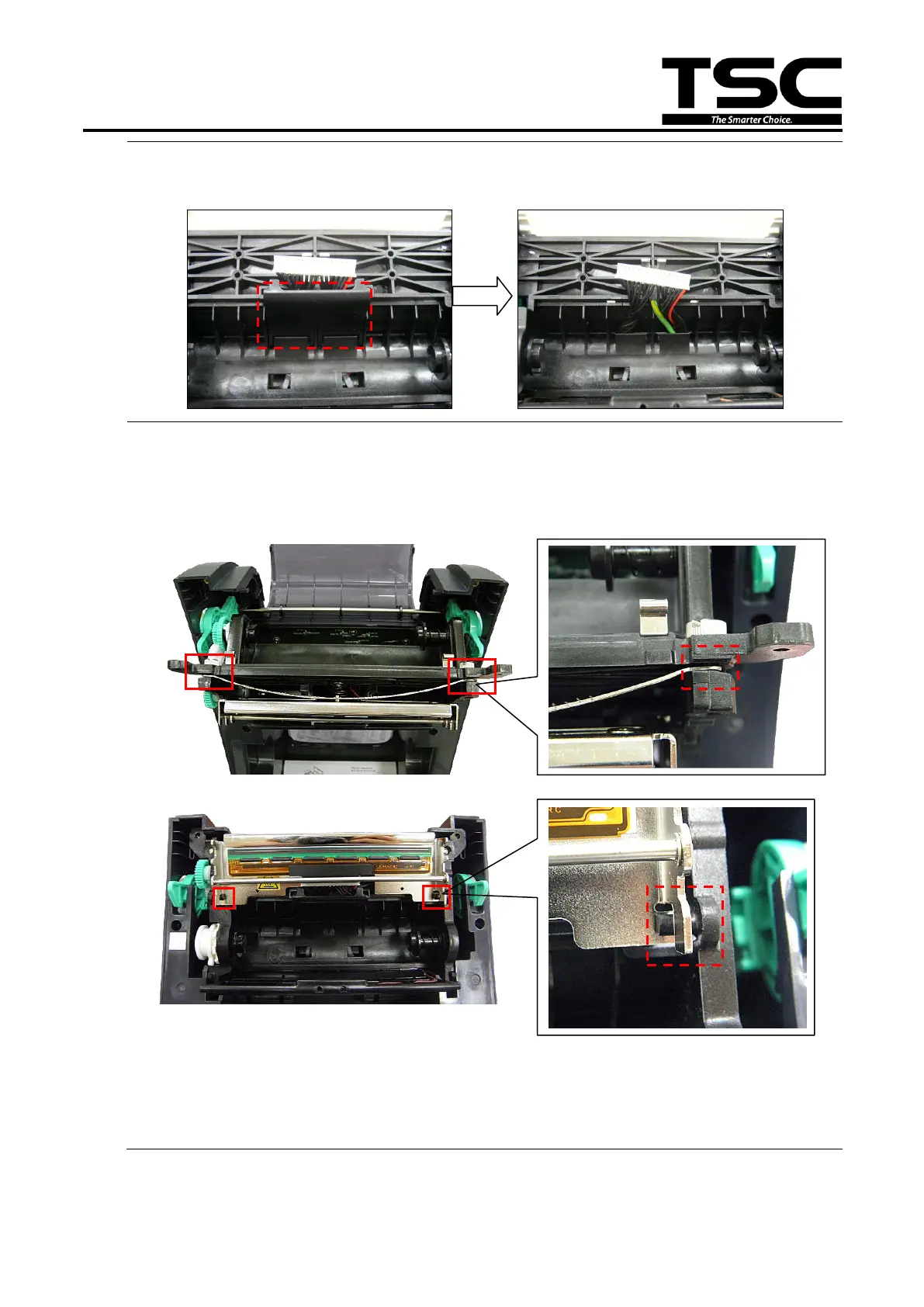

6. Remove the print head harness cover to connect the print head harness for new
print head module then install back the cover.
7. Insert the new print head module spring plate into the ribbon base print head
spring plate slot. Make sure the TPH bracket hinge slots are engaged with the
hinges at both sides. Reassemble the parts in the reverse procedures.
Note:
There is static brush adhered on the print head spring plate. The static
brush free end side is toward the paper feed direction.
