C–2 Series 3080 Electrostatic Classifiers
54321
9876

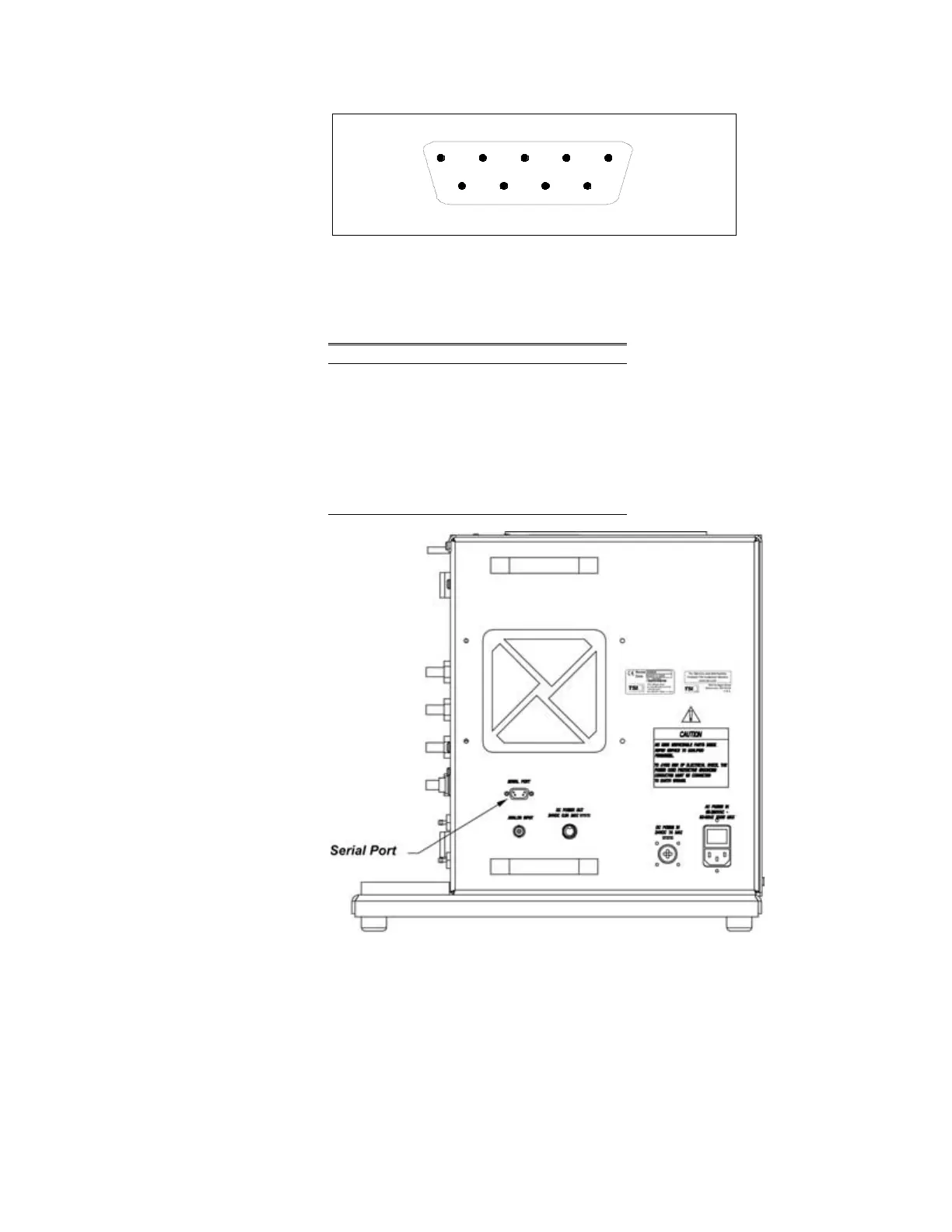

Figure C-1
Serial Port Pin Designations
Table C-1
Signal Connections for RS-232 Configurations
Pin Number RS-232 Signal
1 —
2 Transmit Output
3 Receive Input
4 —
5 GND
6 —
7 —
8 —
9 —
Figure C-2
Serial Port Connector on the Back of the Classifier
