3–4 Series 3080 Electrostatic Classifiers

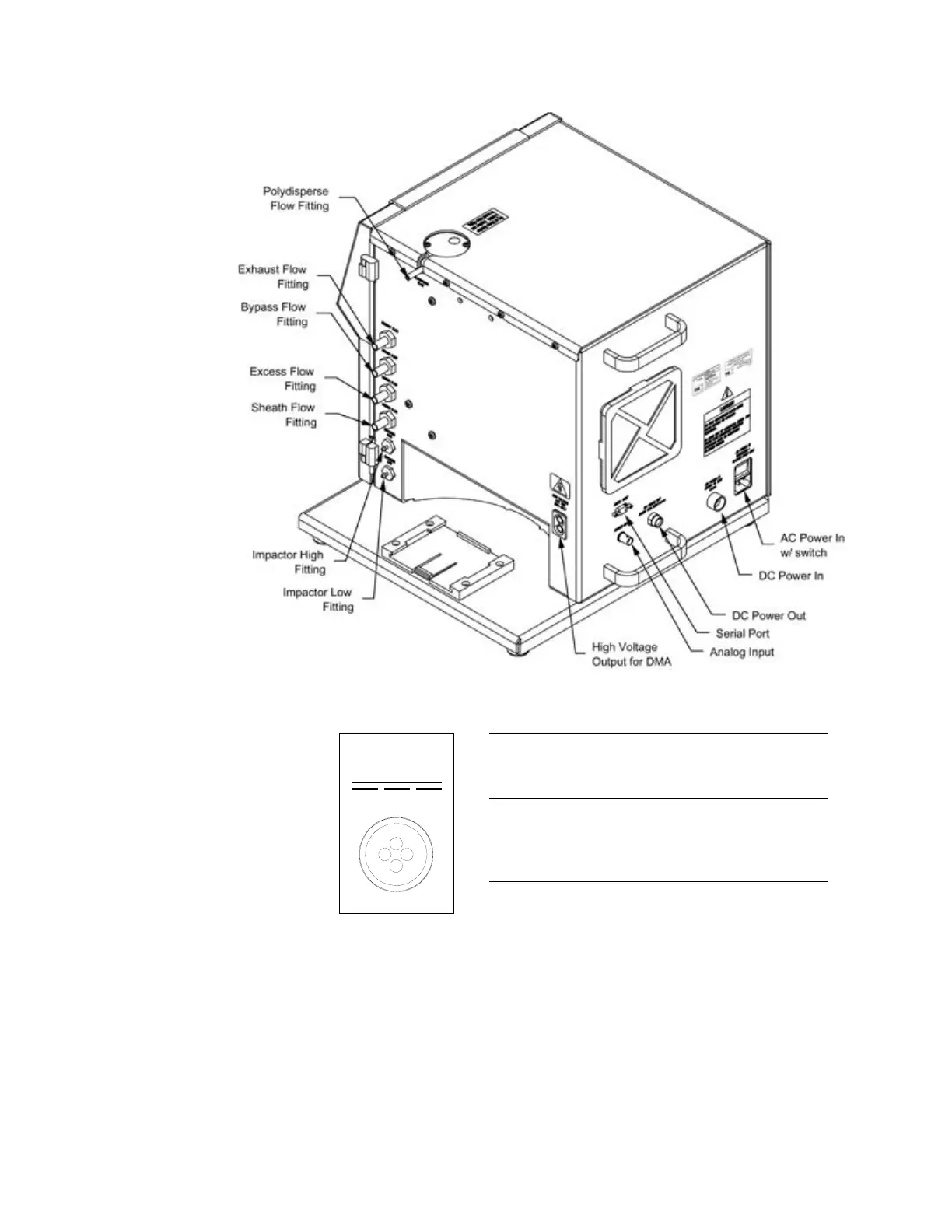

Figure 3-3
Back Panel and Side Panel of the Model 3080 Electrostatic Classifier
1
2
4
3
DC POWER IN
24VDC, 7A MAX
Pin Number Signal
1 GND Chassis Green
2 +24V Blue
3 GND Brown Shield
4 Not Used
Figure 3-4
24V DC Power Input Pin Designations
Serial Port
The Serial Port is a standard RS-232 serial connection that allows
communications between the system computer and the Classifier.
Serial commands are sent to and from the computer to collect
instrument status and provide control information.
