Maintenance and Service 6–17
19. Apply power to the instrument with the switch on the back
panel.
20. Check that the version shown under the menu screen (near the
bottom of the list) matches the new version of the EPROM.
21. Insert the small black bezel back to the hole around the
sample inlet on the front panel.
Replace Negative High-Voltage Controller
with Positive High-Voltage Controller
The Model 3080 Electrostatic Classifier has a negative polarity
high-voltage (HV) controller by default for the Long or Nano DMA to
select positively-charged particles. Researchers that are interested
in negatively charged particles can order an optional positive HV
controller (P/N 1030354) from TSI to size classify negatively
charged particles. The location of the HV controller in the Classifier
is shown in
294HFigure 6-11 and the optional positive HV controller is
shown in
295HFigure 6-12.

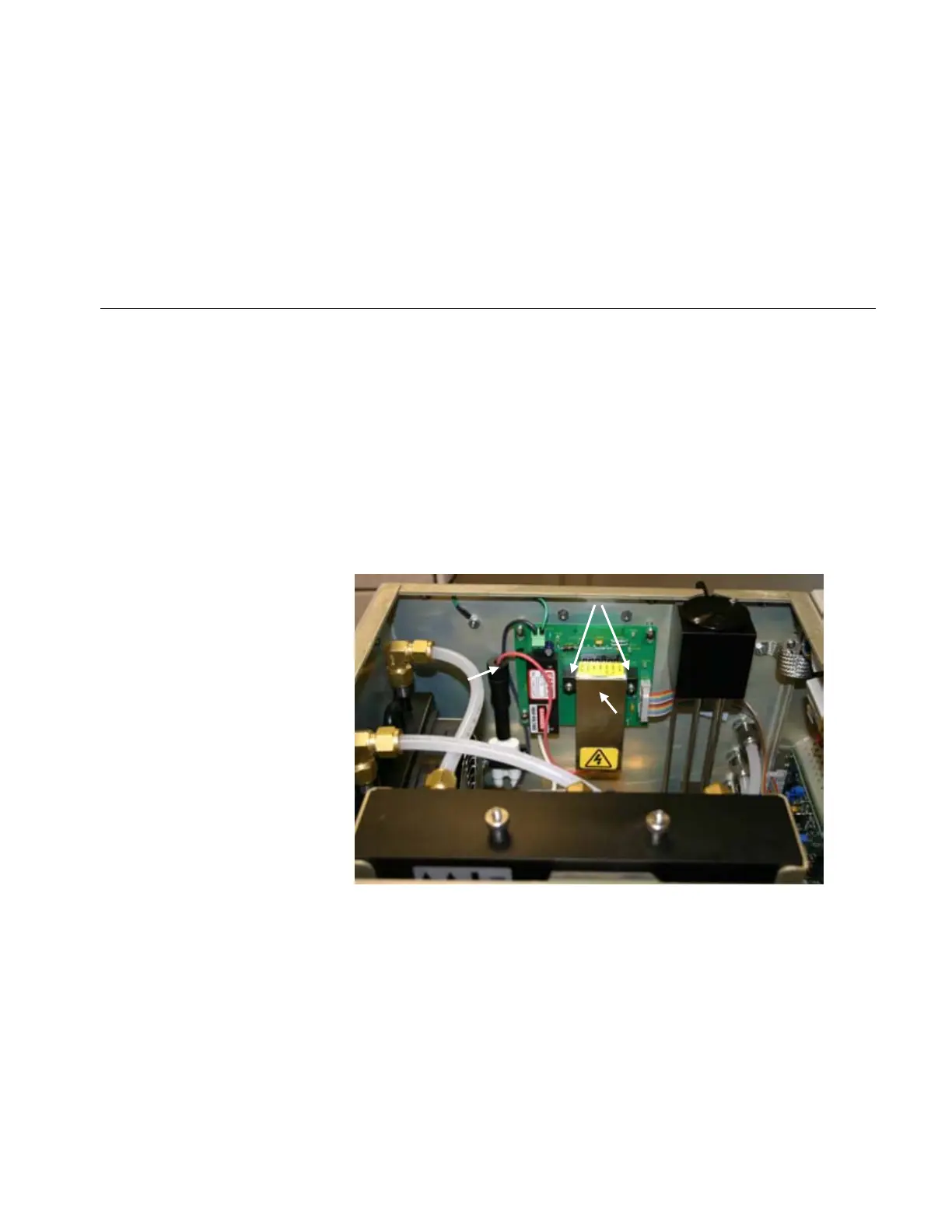

Figure 6-11
Location of High-Voltage Controller in 3080 Electrostatic Classifier
Neutralizer
Chamber
Screws
HV Controller
Connector
HV Controller
Body
Filter Assembly
