3-10 AeroTrak
®
Handheld Airborne Particle Counter
To Delete A Zone
To delete a zone from the configuration screen, select (highlight) the
zone name and press Delete. A verification message “Are you sure you
want to delete this Zone?” appears. Press Yes to delete the zone.
A zone that has data associated with it cannot be deleted. The data
associated with the zone must be deleted from the instrument before the
zone can be deleted.
To Add a Zone

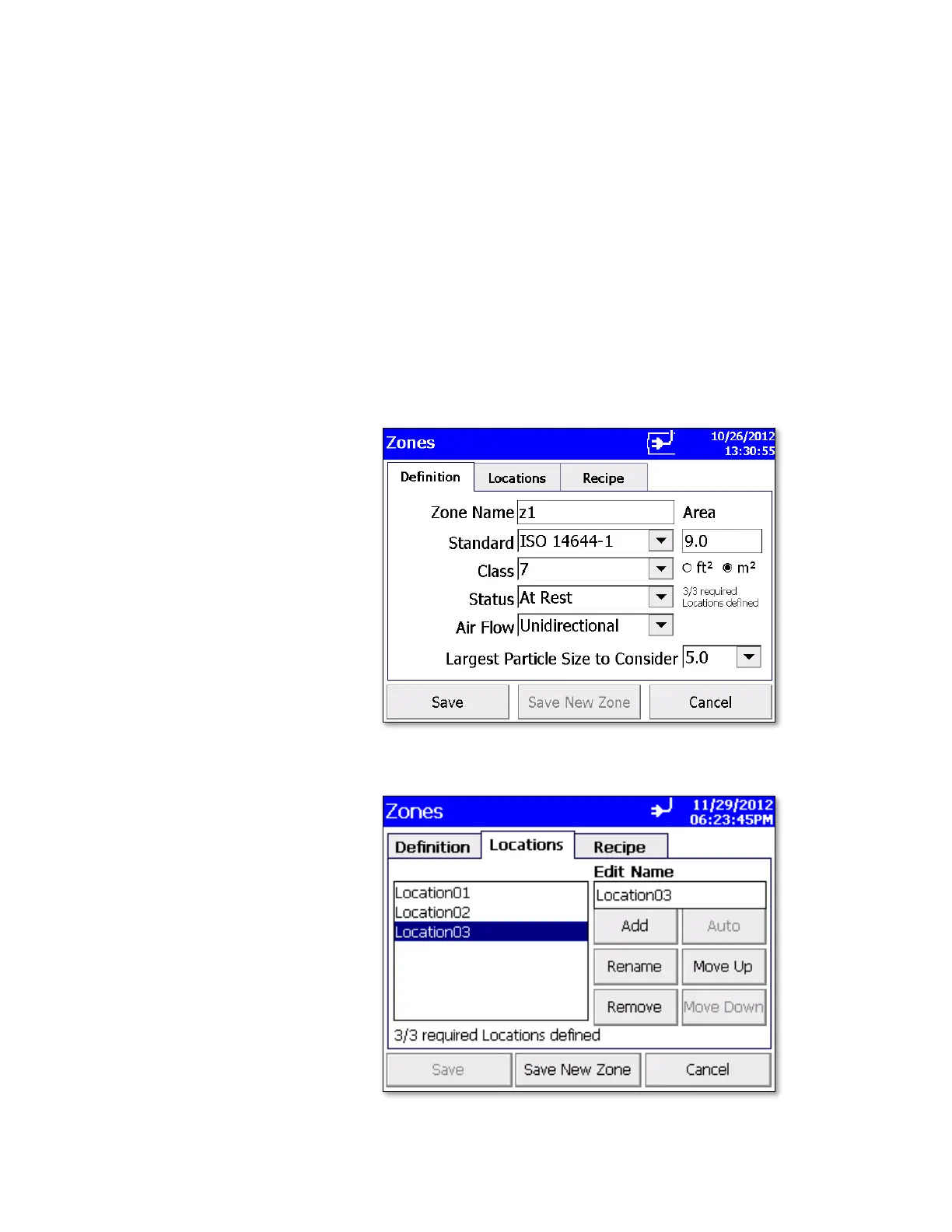

To add a zone, press Add. The Definition screen is displayed.
1. Enter a name for the zone and select the Standard, Class, Status,
Airflow and Largest Particle Size to Consider options from the
drop-down boxes. Input the Area using the keypad and select either
ft
2
or m
2
to describe the area of the zone.
2. Press the Locations tab. The Locations screen is displayed.
