Chapter 2
Setting Up
Supplying Power to the DUSTTRAK™ II Aerosol Monitor
The DUSTTRAK™ II Aerosol Monitor must be powered by either batteries or
use of the external AC adapter.
WARNING
The instrument has been design to be used with
batteries supplied by TSI. Do not use a substitute.
WARNING
Do not use non-rechargeable batteries in this
instrument. Fire, explosions, or other hazards may result.
Installing the Batteries in Model 8530/8531 Desktop
Remove the battery cover and slide one or two batteries into the battery
slots. A single battery can be put into either slot. Orient the batteries with the
label side facing up (see figure 2-1).

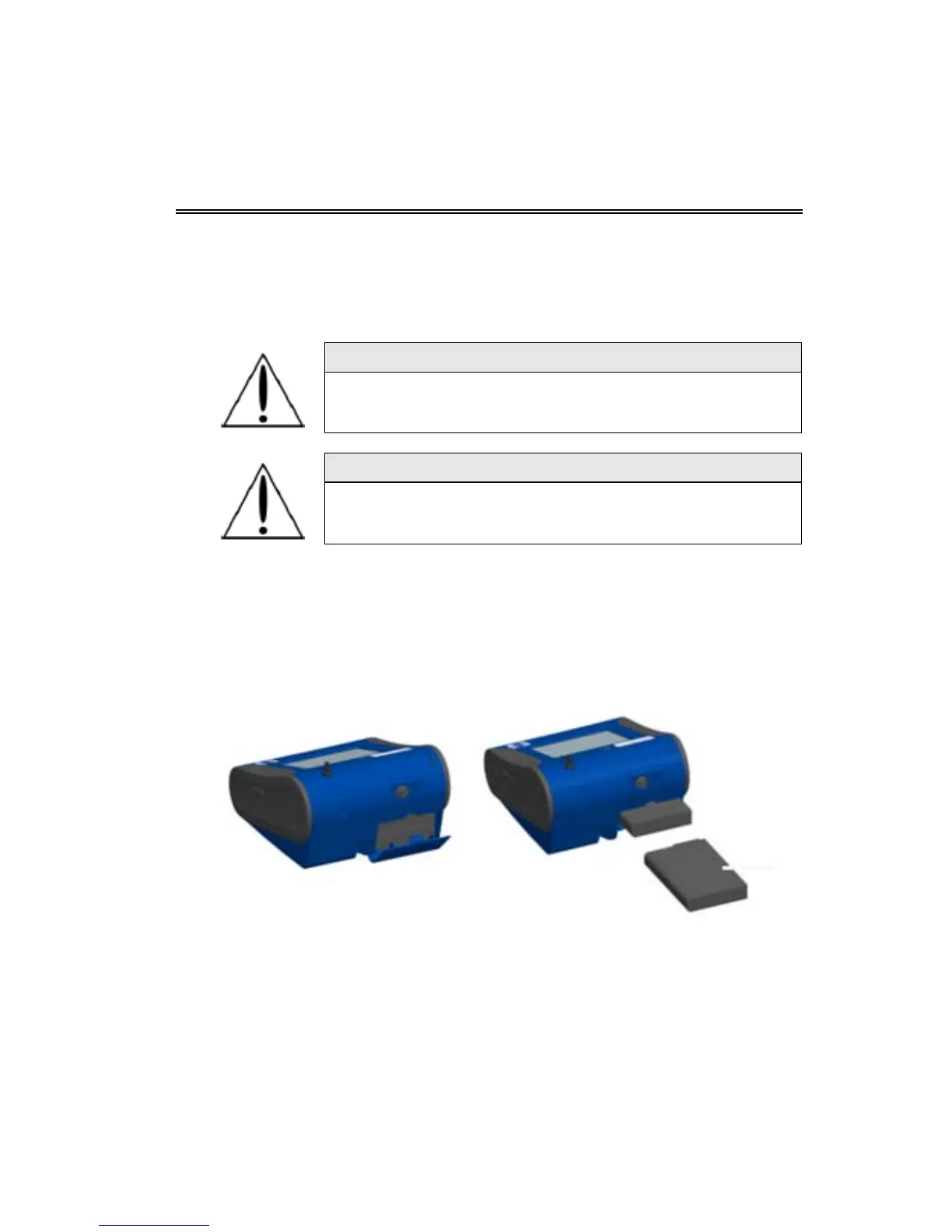

Figure 2-1: Batteries into Desktop Unit
Installing the Batteries in Model 8532 Handheld
Remove the battery cover by loosening captured screw on the bottom of the
unit. Orient battery with brass connectors facing forward. Insert battery into
cavity and slide forward to engage into pins. Replace the battery cover and
secure by tightening screw (see figure 2-2).
