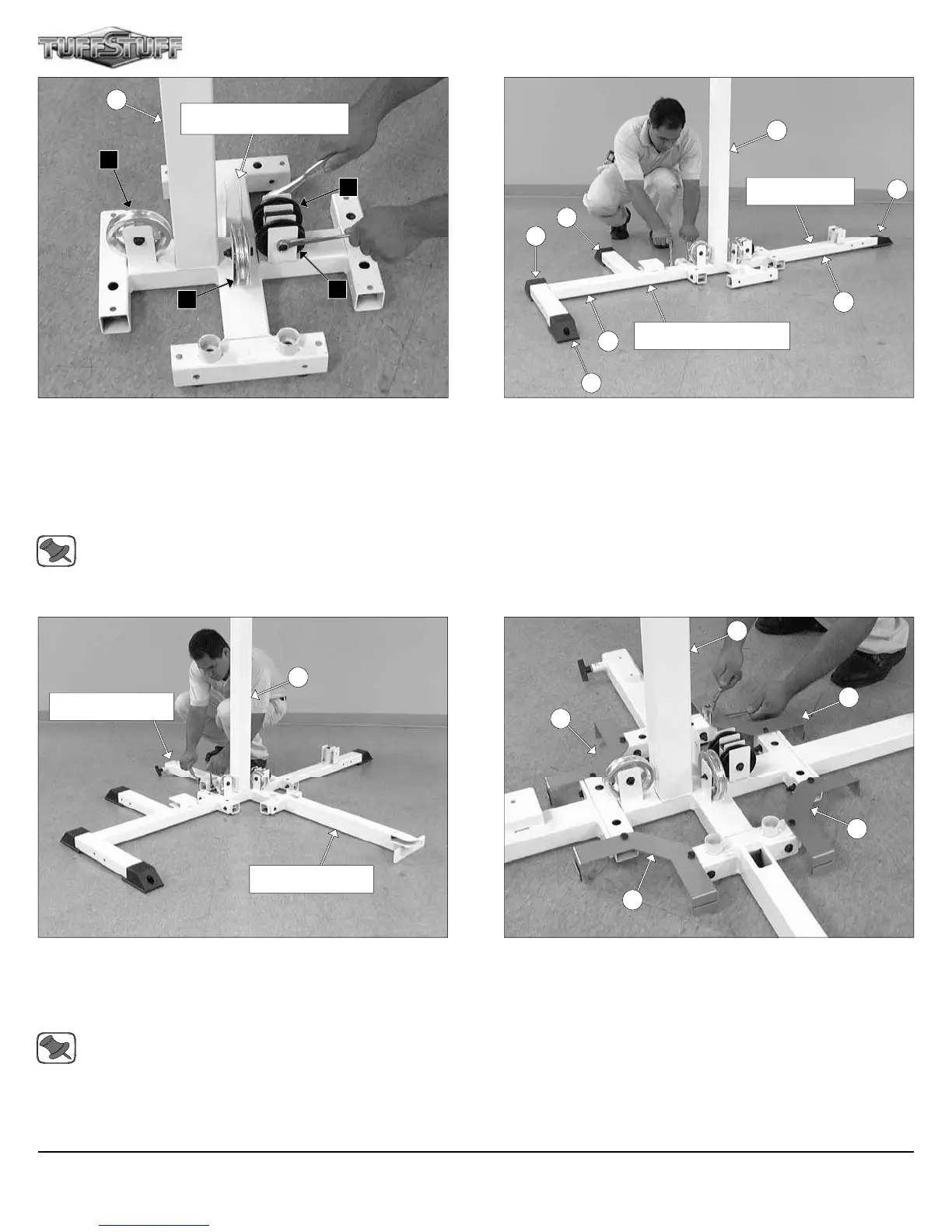

FIG. 1 Locate the Weight Stack Frame (#53) and attach two
Pulleys 4 1/2 Rd (#67-Labeled C3, D6) using two Hex Head Cap
Screws 3/8-16 X 1 3/4 (#97), four Flat Washers SAE 3/8” (#93), and
two Nylon Insert Jam Lock Nuts 3/8-16 (#118). Next, attach two
Pulleys 3 1/2 Rd (#66-Labeled B3, B5) to the Weight Stack Frame
(#53) brackets using one Hex Head Cap Screw 3/8-16 X 4 (#103), two
Flat Washers SAE 3/8” (#93), and one Nylon Insert Jam Lock Nut 3/8-
16 (#118).
Note: The black boxed letters pointing to the pulleys are used
throughout this manual as reference to the Cable Mapping
Diagrams. These black boxed letters will be primarily used for
locating certain pulleys during the cable routing process.
FIG. 3 Attach the Leg Press Bottom Connector and the Bottom
Upright Connector to the Weight Stack Frame (#53), in the position
as shown above, using four Hex Head Cap Screws 3/8-16 X 3 1/4
(#101), eight Flat Washers SAE 3/8 (#93), and four Nylon Insert Lock
Nuts 3/8-16 (#119).
Note: Depending on what optional Stations your system may in-
clude, the bottom connectors of these stations (Ab/Back, Inner
Outer Thigh, Multi-Press) can be attach to the Weight Stack
Frame (#53) as described above.
FIG. 2 Using a rubber mallet, insert one Plastic End Cap 2 X 3
(#122) onto the tube-end of the Bottom Connector Press Bar/Pec Fly
(#7), Next, insert three Plastic End Caps 2 X 3 (#122) onto the tube-
ends of the Leg Extension Bottom Frame (#25). Secure the Bottom
Connector Press Bar/Pec Fly (#7) and the Leg Extension Bottom
Frame (#25) to the Weight Stack Frame (#53), in the position as
shown above, using four Hex Head Cap Screws 3/8-16 X 3 1/4 (#101),
eight Flat Washers SAE 3/8 (#93), and four Nylon Insert Lock Nuts 3/8-
16 (#119).
FIG. 4 Next, affix four Weight Shield Holders (#52) to the Weight
Stack Frame (#53) using eight Hex Head Cap Screws 3/8-16 X 3/4
(#102), and eight Nylon Insert Lock Nuts 3/8-16 (#119).
B5
B3
C3
D6
53
53
7
25
122
122
122
122
53
53
52
52
52
52
For the Single Column Station
no pulley needed here
Leg Extension/Curl Station
Press Bar Station
Leg Press Station
Single Column Station
3 Apollo Modular Gym System (Base Unit)
