TuffStuff Apollo - Assembly: Guide Rods and Plates; Inserting Guide Rods and Donuts; Installing Weight Plates; Assembling Selector Bars and Pins

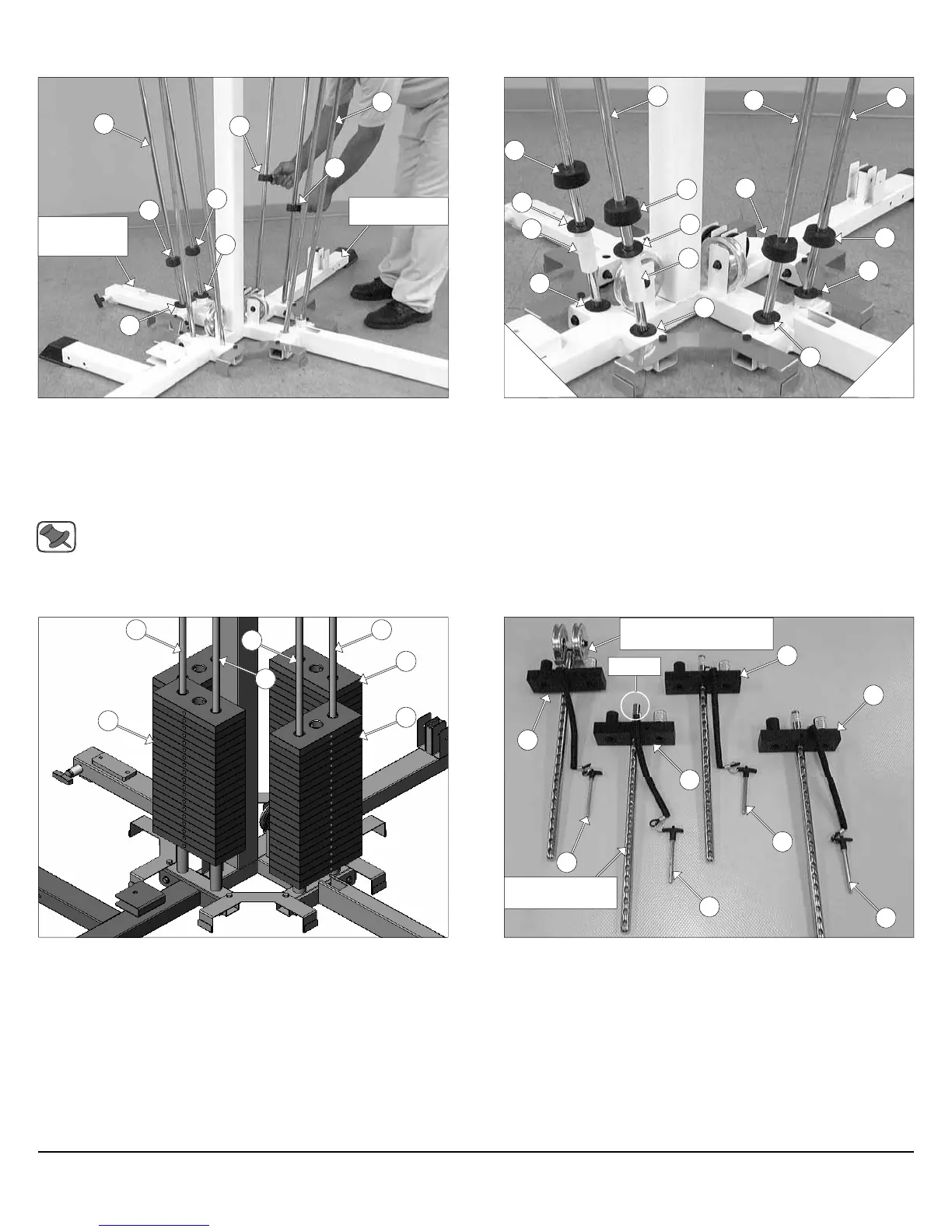

FIG. 5 Insert the eight Guide Rods (#10) into the receptacles of the
Weight Stack Frame (#53). Next, insert two Rubber Donuts (#136)
onto the Guide Rods (#10) located at the side of the Press Bar Station.
Next, on the side of the Single Column Station insert onto the Guide
Rods (#10) the following:
1. Two Flat Washers 3/4 X 2 (#92)
2. Two Rubber Donuts (#136)
Note: Lubricate the Guide Rods (#10) with a silcone or teflon
lubricant at this time.
FIG. 7 Carefully begin sliding the nineteen (19) 10 Lb. Weight
Plates (#56) over the Guide Rods (#10). Repeat the same process for
the other three stations.
FIG. 8 Locate the four Top Plate Selector Bars (#58) and assemble
Magnetic Selector Pins W/Coil 3/8 X 4 (#31) in the position as shown
above.
10
136
92
92
136
10
10
10
10
136
136
136
136
92
92
92
54
92
92
54
92
31
31
31
58
58
Assembled to be used on
the Single Pulley Station
To be used on the
Leg Press Station
31
No Label
56
10
56
10
10
Single Column
Station
Press Bar Station
Leg Extension
Leg Pre
s
s
FIG. 6 On the Leg Extension/Curl Station insert onto the Guide
Rods (#10) the following:
1. Two Flat Washers 3/4 X 2 (#92)
2. Two Weight Stack Spacers (#54)
3. Two Flat Washers 3/4 X 2 (#92)
4. Two Rubber Donuts (#136)
On the Leg Press Station insert onto the Guide Rods (#10) the follow-
ing:
1. Two Flat Washers 3/4 X 2 (#92)
2. Two Rubber Donuts (#136)
4
58
58
Assembly Instructions
Apollo Modular Gym System (Base Unit)
136
136
10
56
