Quick troubleshooting Guide
TUN-QTSG-0519-EN_A3
For power inverter models M1500 – M2000 – M2500 – M3000
ANNEX 3
Tel.: 450.649.2470 / 1.877.964.2582 Fax.: 1.888.855.9834
TUNDRAINVERTERS.COM
INSTALLATION – INSIDE THE CAB 2-5
DETERMINING THE BEST LOCATION

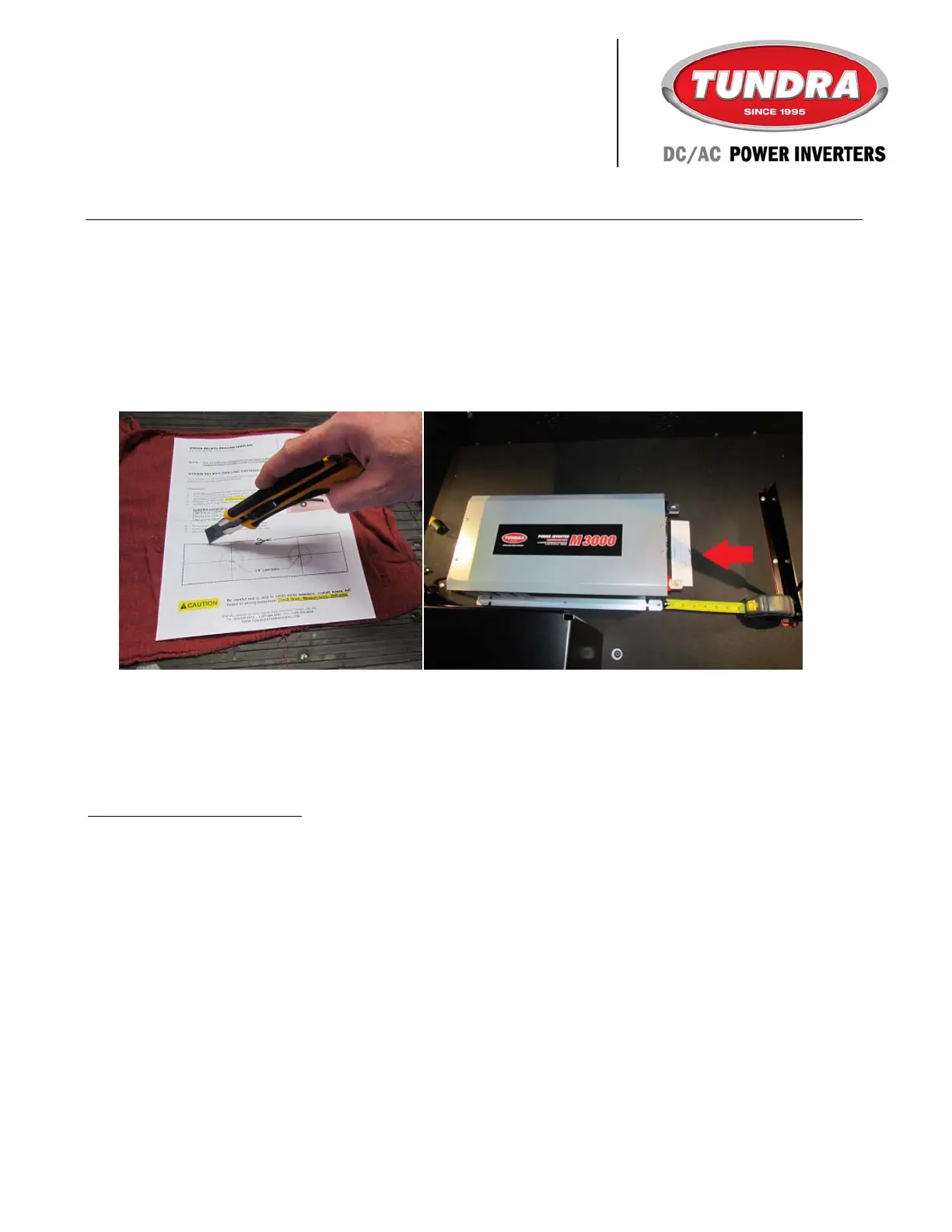

1. Using the power inverter and the template included in the CM installation kit, determine the best location
to install the power inverter.
VALIDATING YOUR LOCATION CHOICE
Observe the following 5 criteria
1. The power inverter mounting holes must not damage wires, hoses or other parts under the cab.
2. Floor adapter holes must not damage wires, hoses or other parts under the cab.
3. Do not drill into the cab cross-member.
4. The cables should be kept close to the power inverter, but not too close. They need to be easily installed on
the inverter’s DC inputs.
5. Be aware of the cylinders used to lift the bed. They must not come into contact with the power inverter or its
cables during bed operation.
