Tundra M2000 - INSTALLATION - INSIDE THE CAB 2-9; Power Inverter Mounting Procedure

Quick troubleshooting Guide
TUN-QTSG-0519-EN_A3
For power inverter models M1500 – M2000 – M2500 – M3000
ANNEX 3
Tel.: 450.649.2470 / 1.877.964.2582 Fax.: 1.888.855.9834
TUNDRAINVERTERS.COM
INSTALLATION – INSIDE THE CAB 2-9
POWER INVERTER – INSTALLATION

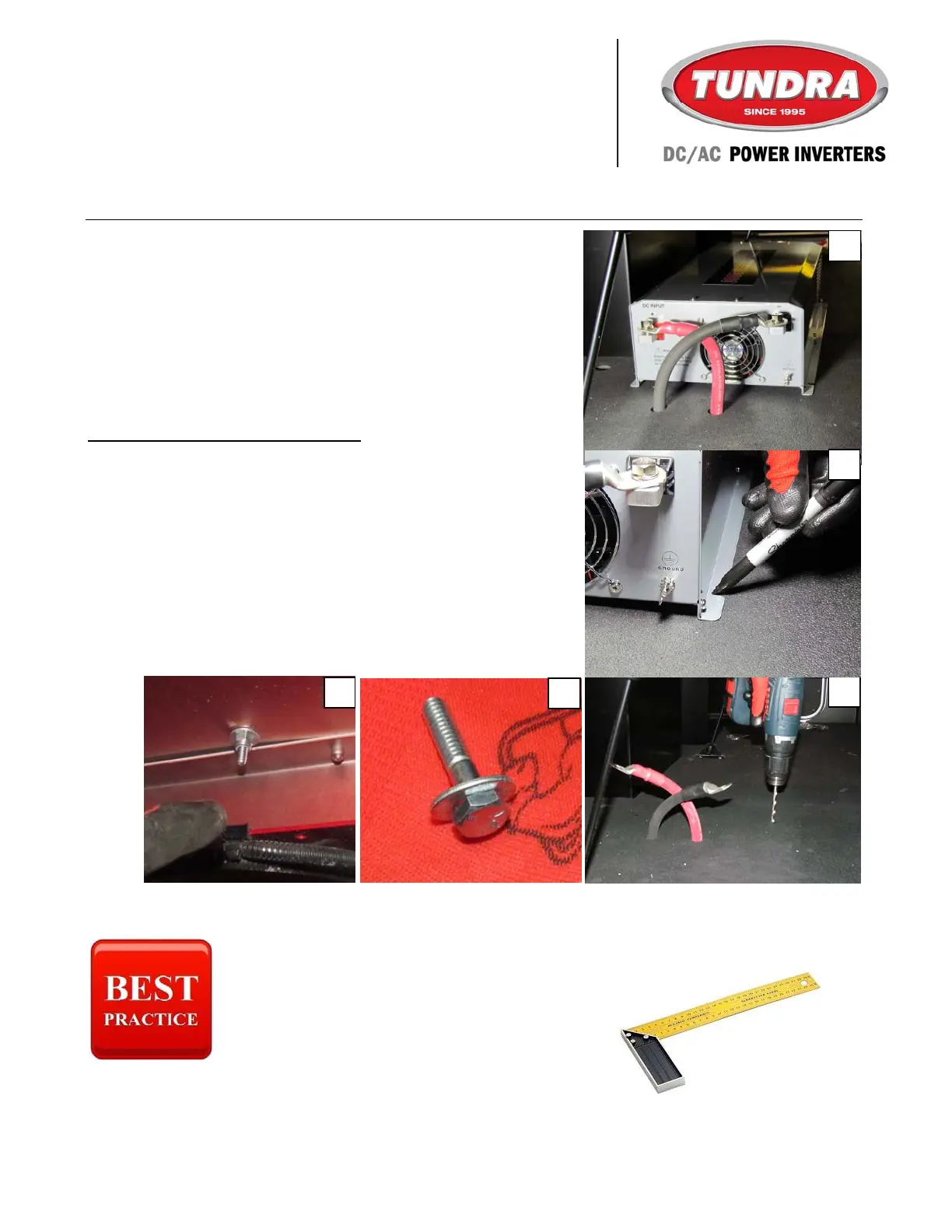

1. Place the power inverter in the designated
location.
2. Using the included bolts, temporarily install the
cables to the DC inputs of the power inverter to
validate its position.
Relocate the power inverter if required
3. Using the power inverter as a template, mark the
location of the 4 required mounting holes.
4. Remove the power inverter and drill the 4 holes
of 9/32 inches.
5. Secure the power inverter firmly to the vehicle
using the included bolts and self-locking nuts.
Make sure the power inverter is square with the
surrounding surfaces before drilling. Your work will
look much better!
CONTINUED ON P. 2-10
