INSTALLATION – INSIDE THE CAB 2-14
MULTIDATA LCD MONITOR
RECESSED INSTALLATION p. 2-14
SURFACE INSTALLATION p. 2-15

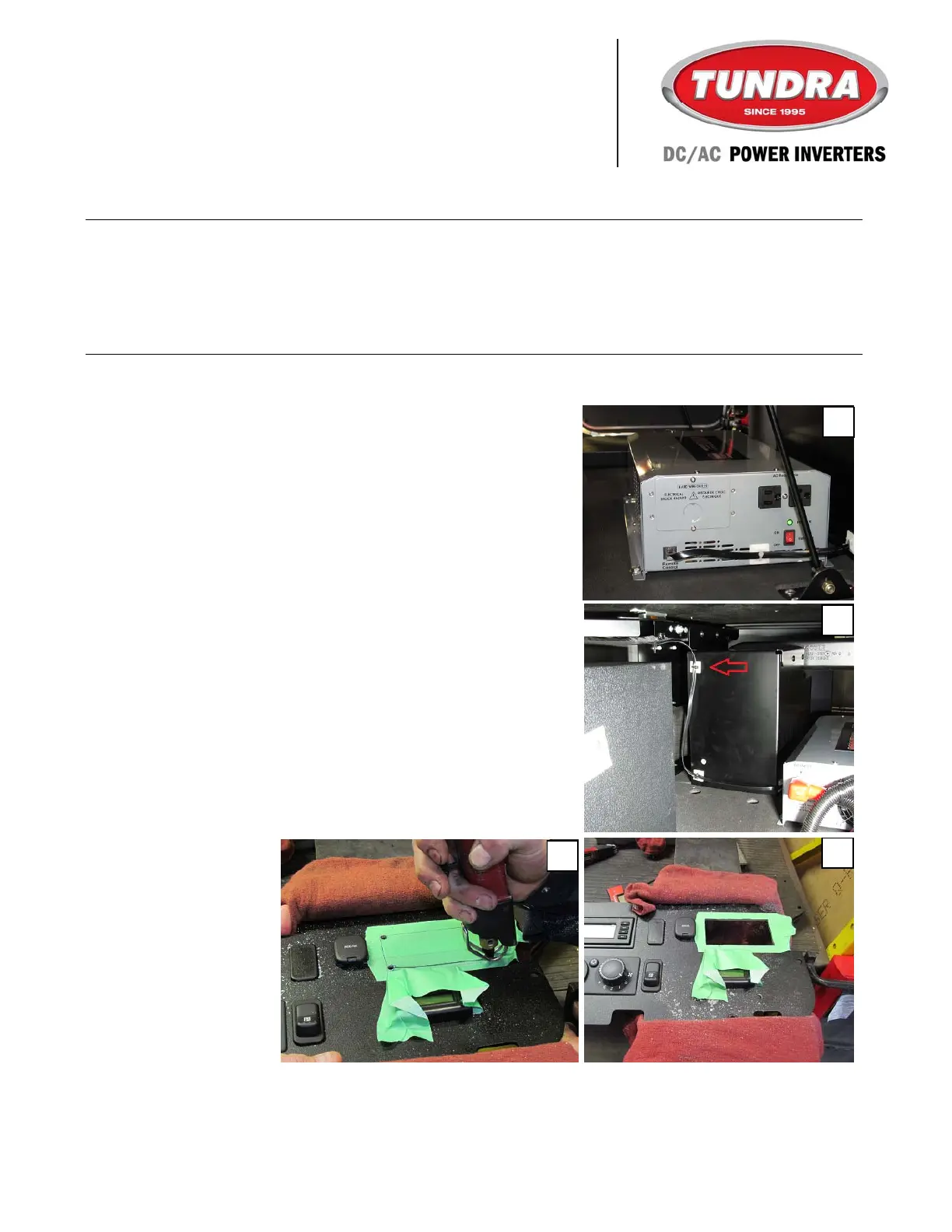

MULTIDATA LCD MONITOR – RECESSED INSTALLATION
1. From the front panel of the power inverter, route the
20 ft. (6 m) cable from the multidata LCD monitor to the
desired location.
2. Make sure the monitor cable does not come into contact with
sharp edges that could damage it.
3. If necessary, use self-adhesive retainers or plastic ties.
4. Using the template included with the power inverter, drill
a hole to insert the rear embossed part of the multidata
LCD monitor.
5. Connect the monitor cable to the multidata LCD monitor
and attach the monitor to the panel using the included
screws or any other type of bolts or screws with a
maximum diameter of 1/8″ (0.125″).
1
3
4
4
19
