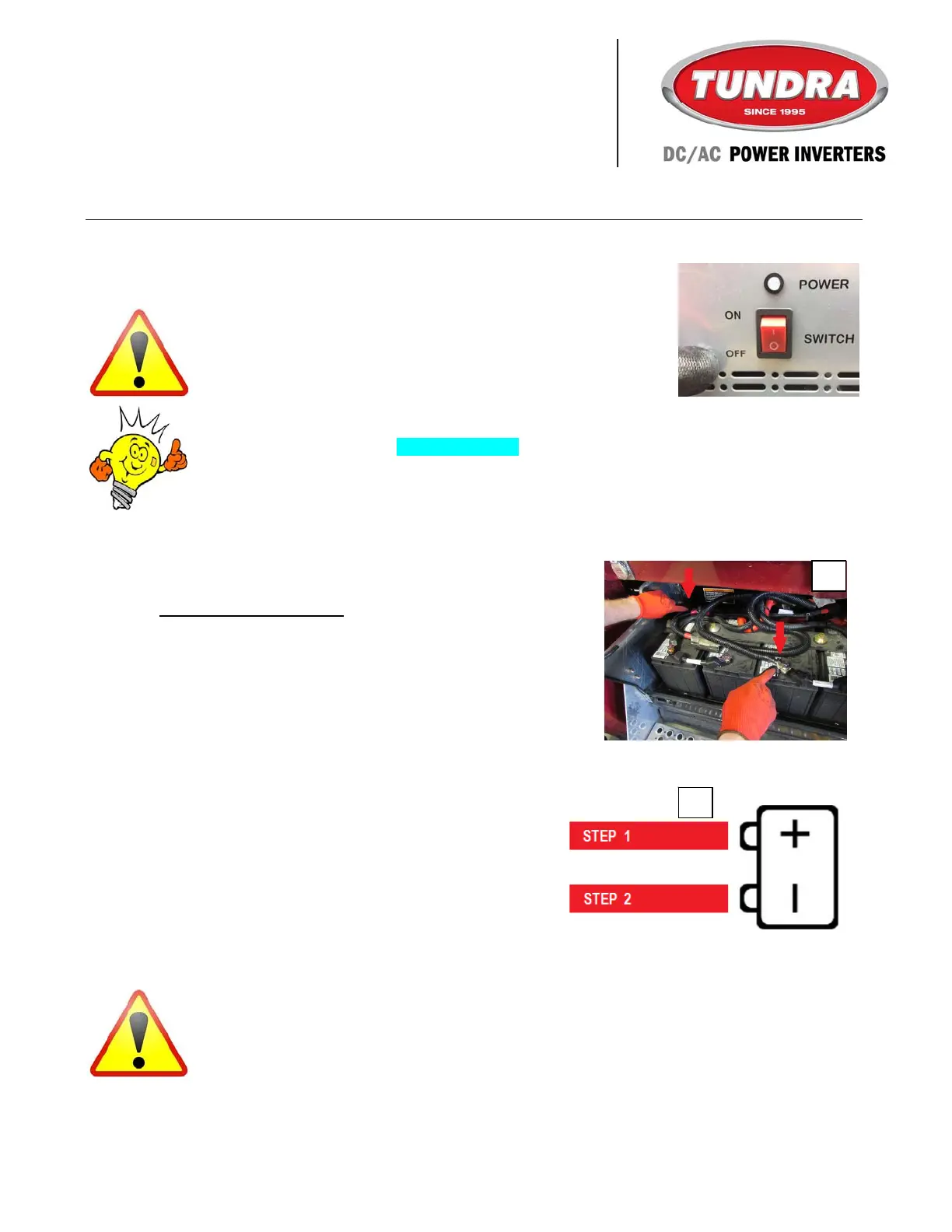

INSTALLATION – UNDER THE CAB 3-5
BATTERIES – CONNECTING CABLES
Before connecting the cables to the batteries,
make sure that the switch on the front panel of
the power inverter is OFF.
If the vehicle is equipped with Dynacraft battery interconnectors, we suggest following
the procedure in the Technical Bulletin section to maximize connectivity and ensure
proper operation of the power inverter. Ignoring our instructions may result in the
inverter not operating at full power.
1. The power inverter cables must be connected to
the batteries in order to distribute the charge
evenly between the four batteries.
A. The positive and negative cables must be as
far apart as possible from one another.
B. Maximum of three terminals per battery post.
C. The power inverter cables must be placed
above the interconnectors and not underneath.
D. Do not install other accessories where there is
a power inverter cable.
2. Connexion of the cables must be made in the
following order:
1. Positive – 2. Negative
A spark may occur when connecting the negative cable. This is normal if the power
inverter capacitors are not charged.
