INSTALLATION – INSIDE THE CAB 2-15

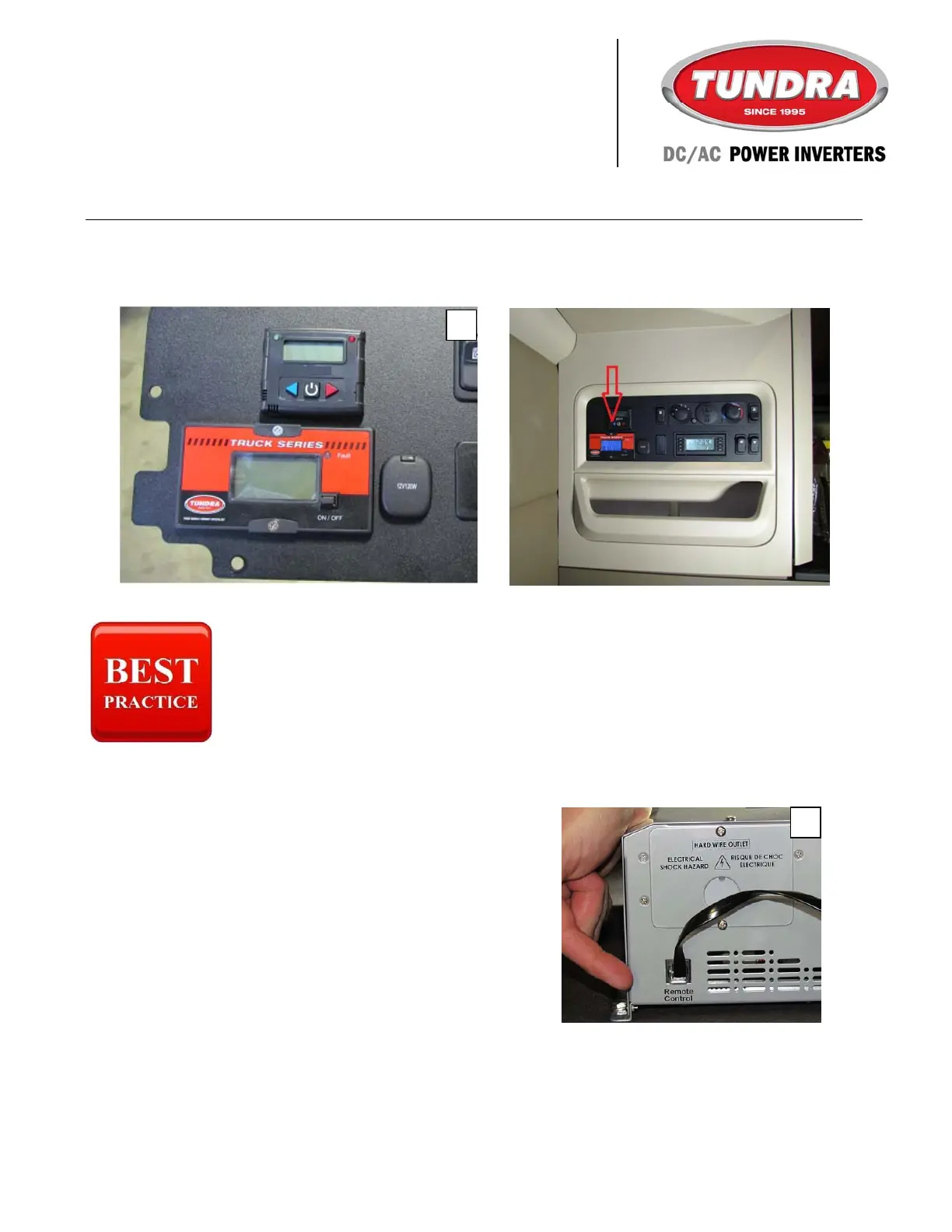

MULTIDATA LCD MONITOR – RECESSED INSTALLATION (cont’d)
We suggest validating your cutting measurements more than once so as to minimize
the chances of damaging the panel. Moreover, we suggest using masking tape to avoid
scratches during cutting.
MULTIDATA LCD MONITOR – SURFACE INSTALLATION
1. From the front panel of the power inverter, route
the 20 ft. (6 m) cable from the multidata LCD
monitor to the desired location.
2. Make sure the monitor cable does not come into
contact with sharp edges that could damage it.
5
1
