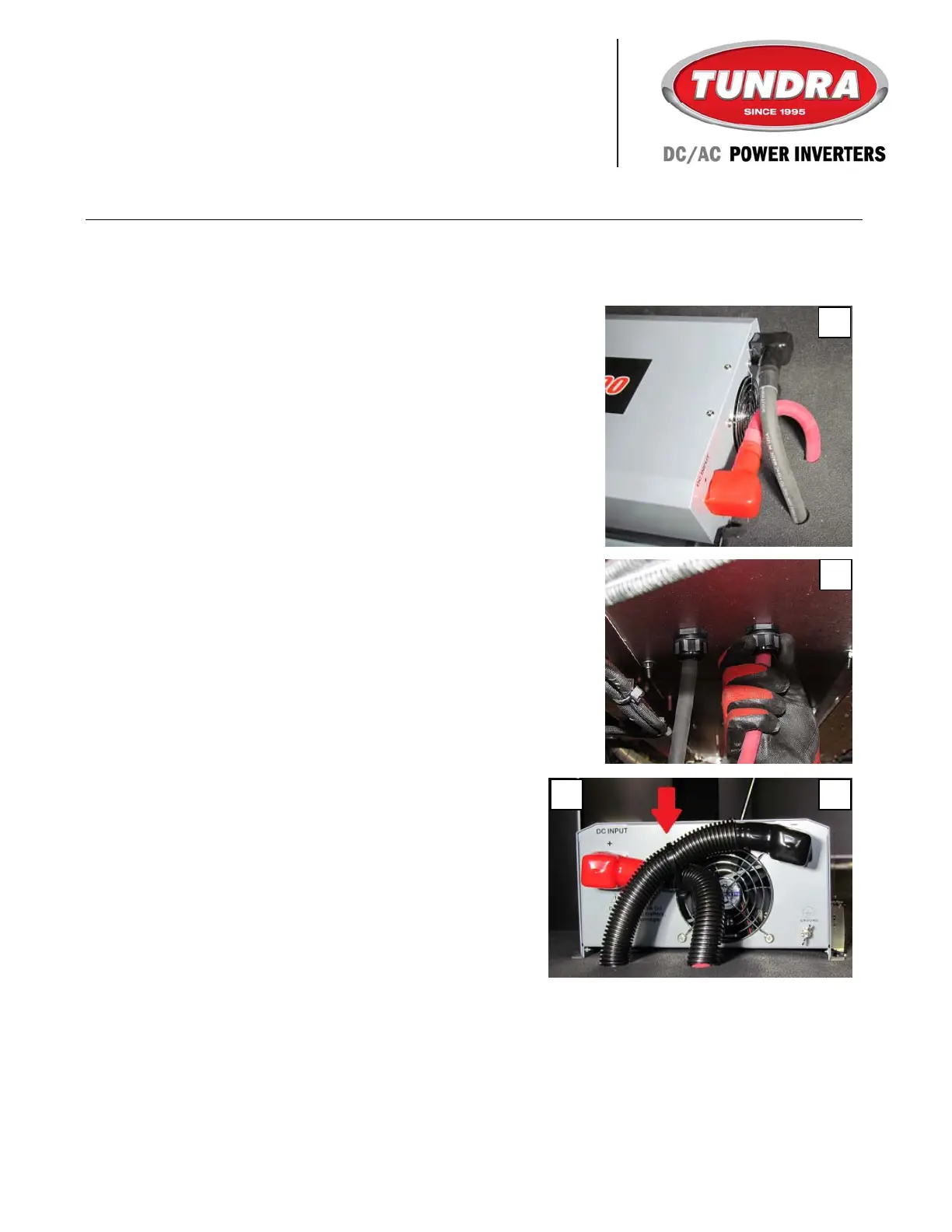

INSTALLATION – INSIDE THE CAB 2-11
CONNECTING THE 12 V CABLES TO THE POWER INVERTER (cont’d)
3. Slide the rubber insulators on each of the cables to
protect the inverter’s DC inputs.
4. Adjust the cables so that they do not create
pressure on the inverter’s DC inputs.
5. Underneath the cab, tighten the floor adapter caps
by hand to secure the cables in place. Do not use
pliers as they may damage them.
6. Install the plastic loom over both cable sections.
Use the loom included in the CM installation kit.
7. Using a plastic tie, secure the cables together so
they do not vibrate.
3
5
76
