EN
UNI 30 E 17261 - 561.228 5 - INSTALLATION
Cap. 5 - Pag. 1/5
THIS MANUAL IS PROPERTY OF - ANY TOTAL OR PARTIAL REPRODUCTION IS STRICTLY FORBIDDEN
5.1 POSITIONING THE MACHINE

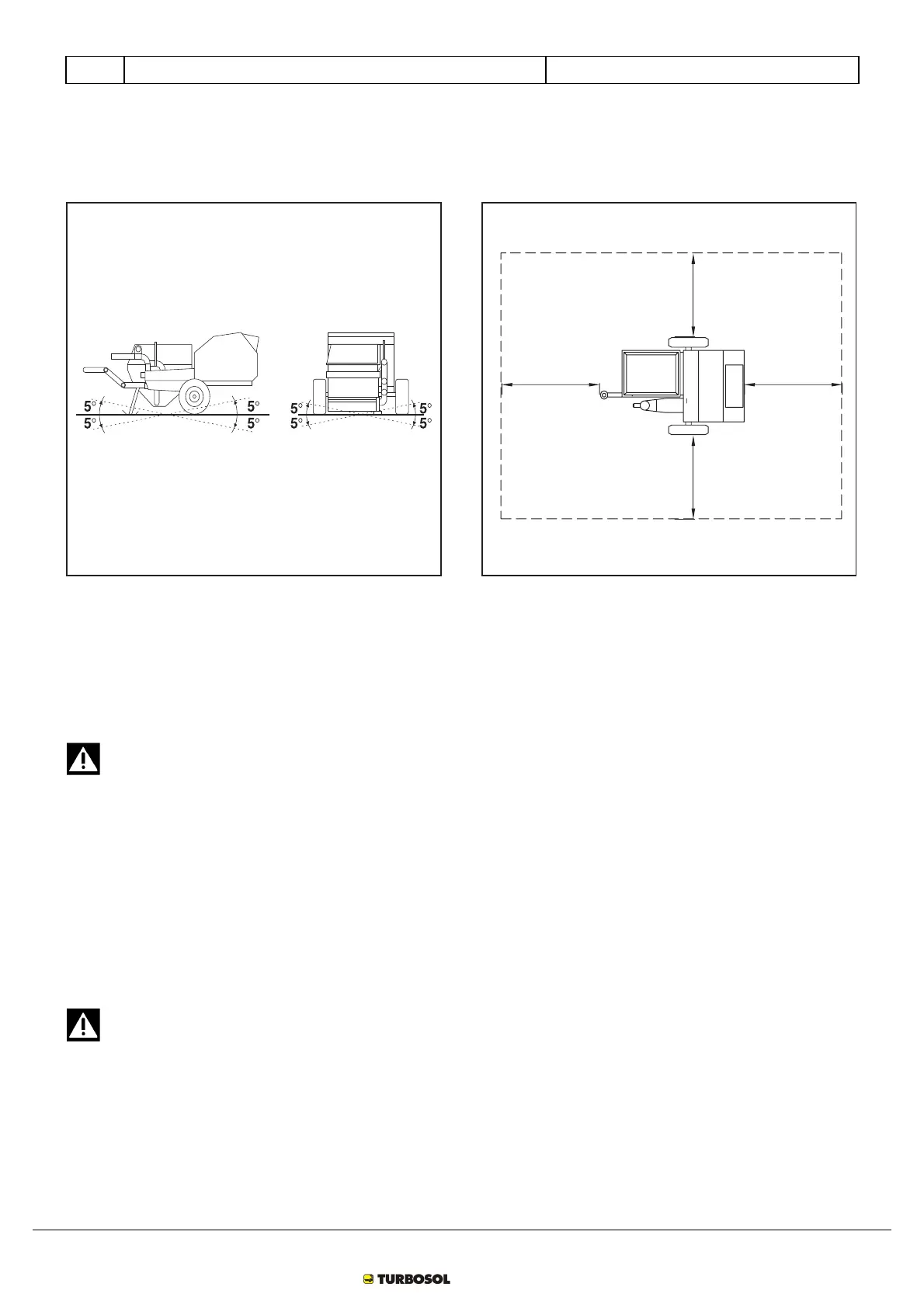

Place the machine in a horizontal position; the maximum allowed gradient is 5°, both lengthwise and crosswise (FIG. 09).
140 cm140 cm
120 cm120 cm
FIG.09 FIG.10
The machine must be positioned in the point of the worksite that allows the pipes and hoses to their full extension.
- Make sure that the machine rests on the bracket positioned under the hopper.
Be sure to leave a passageway all around the machine (FIG.10) clear of any obstacles and with no holes or
hazardous projections.
5.2 PIPING
Lay out the piping optimising their length (to reduce transport time and limit wear) and make sure the pipes are in good
condition.
Use only original pipes and fittings.
The pipes must be fitted by TURBOSOL PRODUZIONE S.p.A. or by companies expressly authorised by
TURBOSOL.
TURBOSOL PRODUZIONE S.p.A. shall not be held responsible for injury/damage to persons or property caused
by using non-original piping or fittings.
