Turbosol UNI 30 E - Connections

EN
UNI 30 E 17261 - 561.228 5 - INSTALLATION
Cap. 5 - Pag. 3/5
THIS MANUAL IS PROPERTY OF - ANY TOTAL OR PARTIAL REPRODUCTION IS STRICTLY FORBIDDEN
1
1

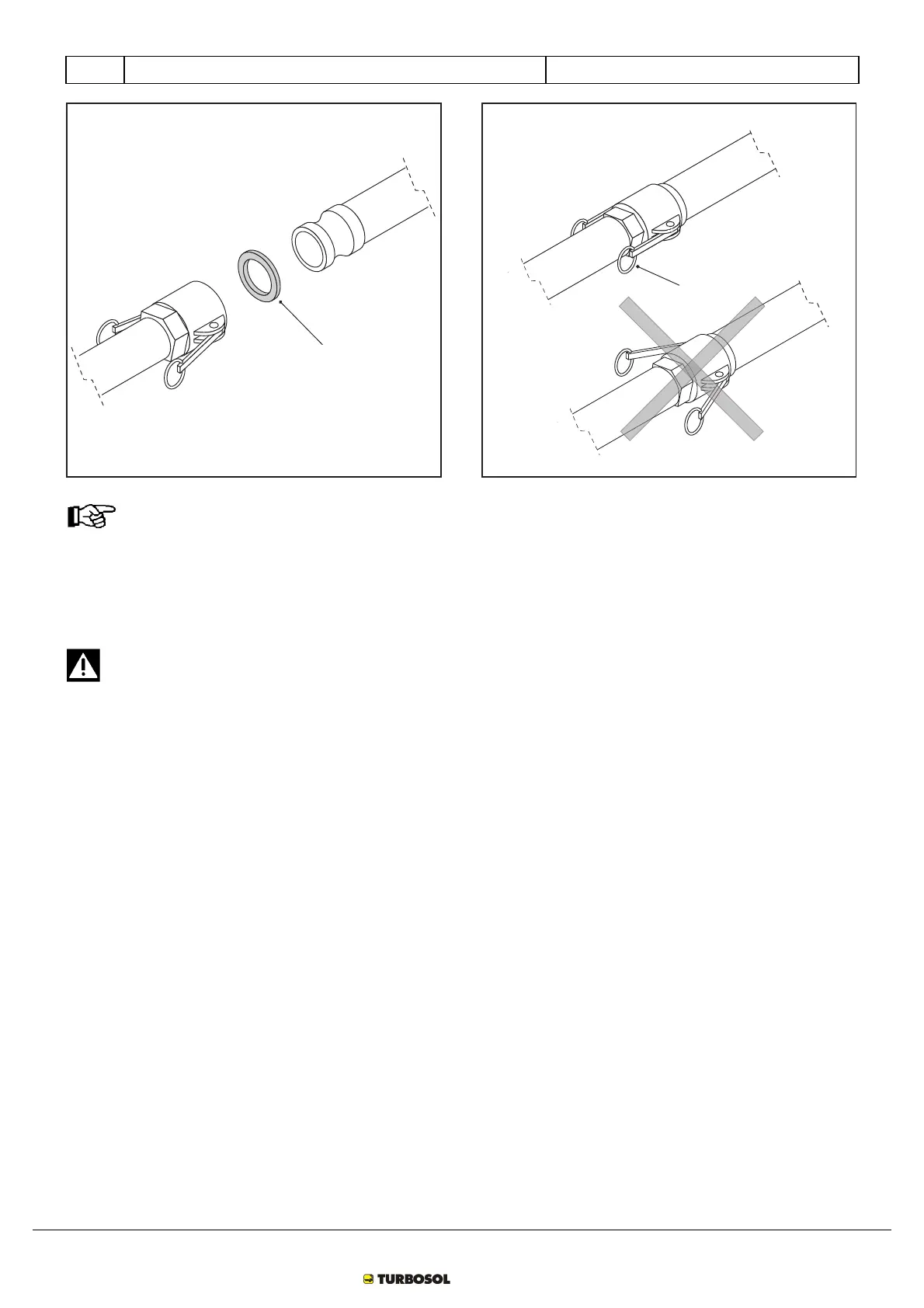

FIG.12 FIG.13
The pipes must be connected to each other with the longest pieces (20 mt) connected to the machine and so
on until the shortest pieces are connected to the gun.
5.4 CONNECTIONS
The machine must never operate if the rubber pipe is not connected to the flow connector of the machine and to
the gun.
PIPING
Connect the various pieces of material pipe to the pump unit (FIG.14-REF.1) and the air pipe to the quick-release coupling of
the air unit (FIG.15-REF.2).
Then connect the gun to the end part of the material pipe (FIG.15-REF.3), connect the air pipe (FIG.15-REF.1) tightening the
fittings well.
