7.4 CONTROLS
765
8
10
9
11
1
2
3
4

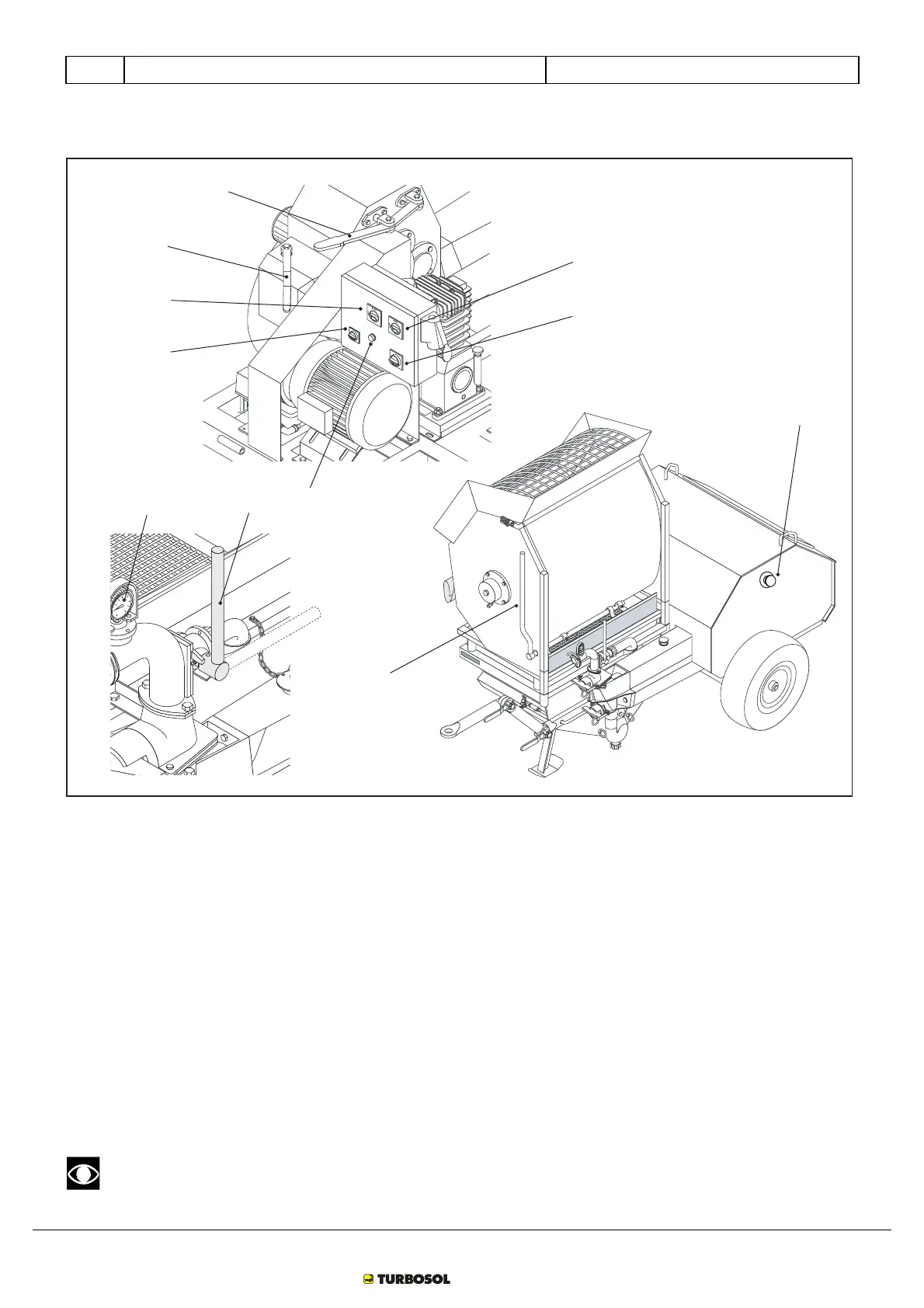

FIG.27
KEY:
1) Mortar pump motor switch.
2) Master switch.
3) Emergency button.
4) Material discharge lever (in hopper).
5) Emergency indicator (signals the incorrect position of the mixer safety grill or hopper safety grill).
6) By-pass lever (material recycle in hopper).
7) Mortar piping pressure manometer.
8) Sieve vibrator switch.
9) Mixer motor switch.
10) Safety lever.
11) Gear lever (2 speed reducer).
7.5 EMERGENCY STOP
The mushroom-shaped emergency button allows immediate switch-off of the electric engine.
