Using the Device as PROFINET Device
Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F
+49 208 4952-264 |
more@t
urck.com | www.turck.com
38
Which data will be mapped into
the configured input and output
data, depends on assignments in
the PLC program or in the I/O mapping of the TBEN-L
-PLC-
.

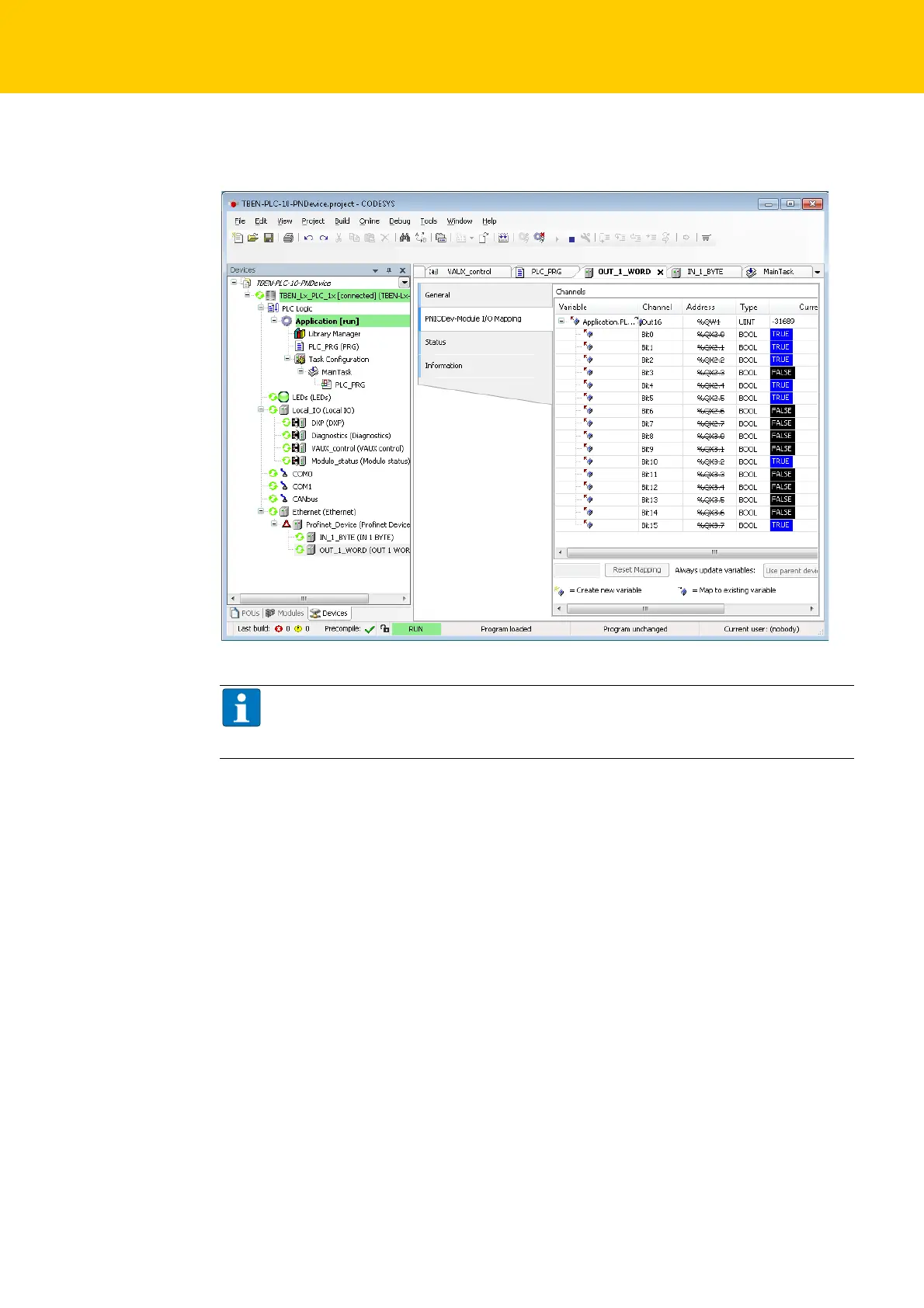

Fig. 32: PROFINET Device data mapping
NOTE
The PROFINET De
vice shows an error
as long
as a connection to th
e PROFINET Controller
is established.
39
41
