BAT
[OPTION]

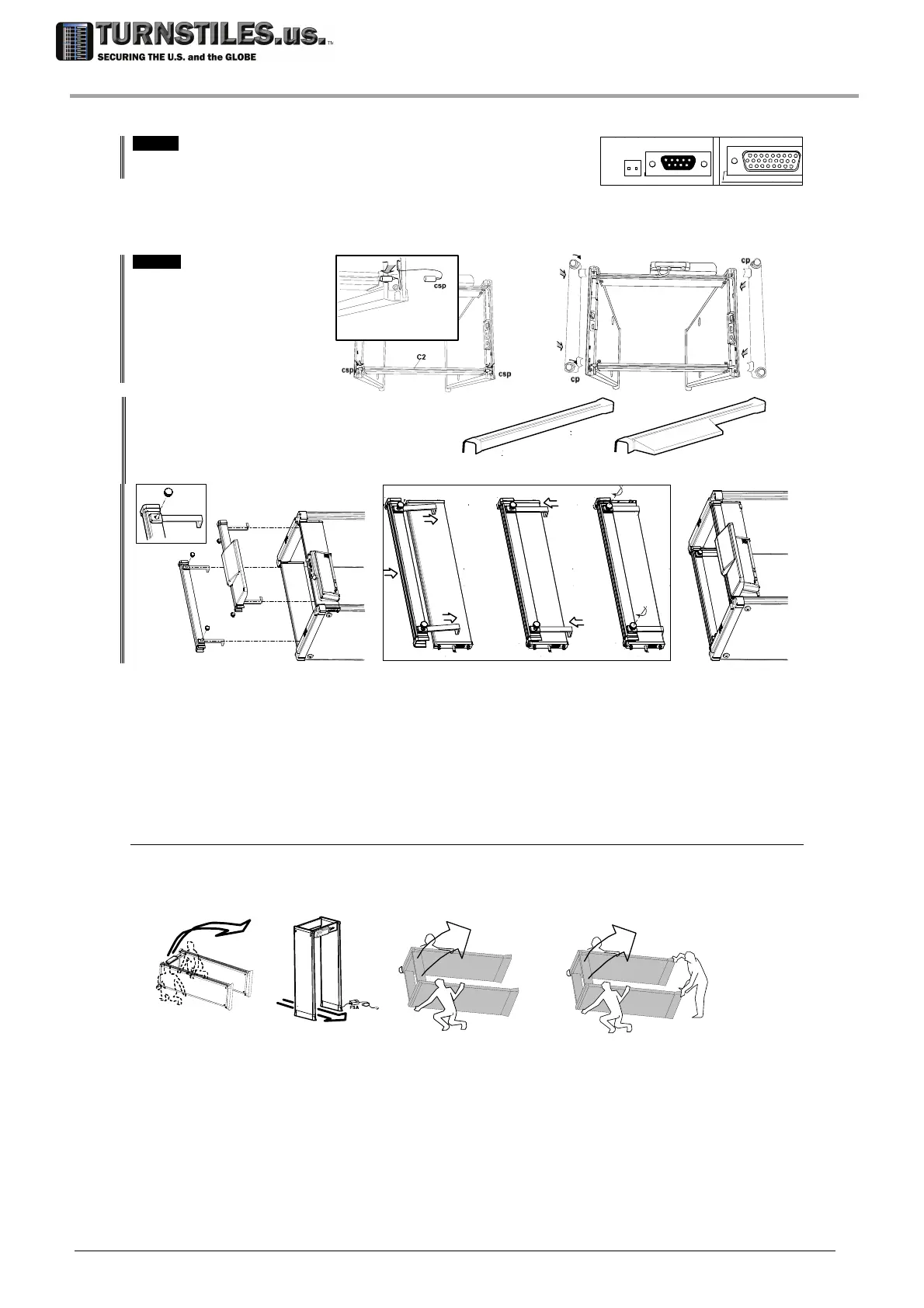

Version with Long Life Crossbar Battery Back-Up
Connect the cable coming from the battery compartment to the 2-pole connector
(BAT) located close to the 9-pole D-Sub “PS/COM” connector of the TX panel.
[OPTION]
Version with protection
covers
Insert caps csp into the grooves
of the panels, located close to the
crossbar C2. Each cap s secured
by a short cord to a cable clip.
Remount covers cp .
Attach the protection cover ccp of the crossbar C1, using
the hooks h and the knobs vp, taking care to push it
towards the panel covers cp.
Attach the protection cover tp of the crossbar C2, using
the hooks h and the knobs vp, taking care to push it
towards the panel covers cp
ccp cp
.
vp
h
vp
h
vp
h
Lifting the archway up
Lift up the assembled archway from the floor.
Remark: it is mandatory that this operation is performed by two or more people!
