Tuthill T650 - T650;T950 H Assembly Drawing and Parts List - Stage Two

11
26 17 16 15 13 14 9
7
8
32
TABLE TOP
22
21
23
25
11
4
5
1018
20
27
6
12
19
24
ASSEMBLED
IN STAGE 1

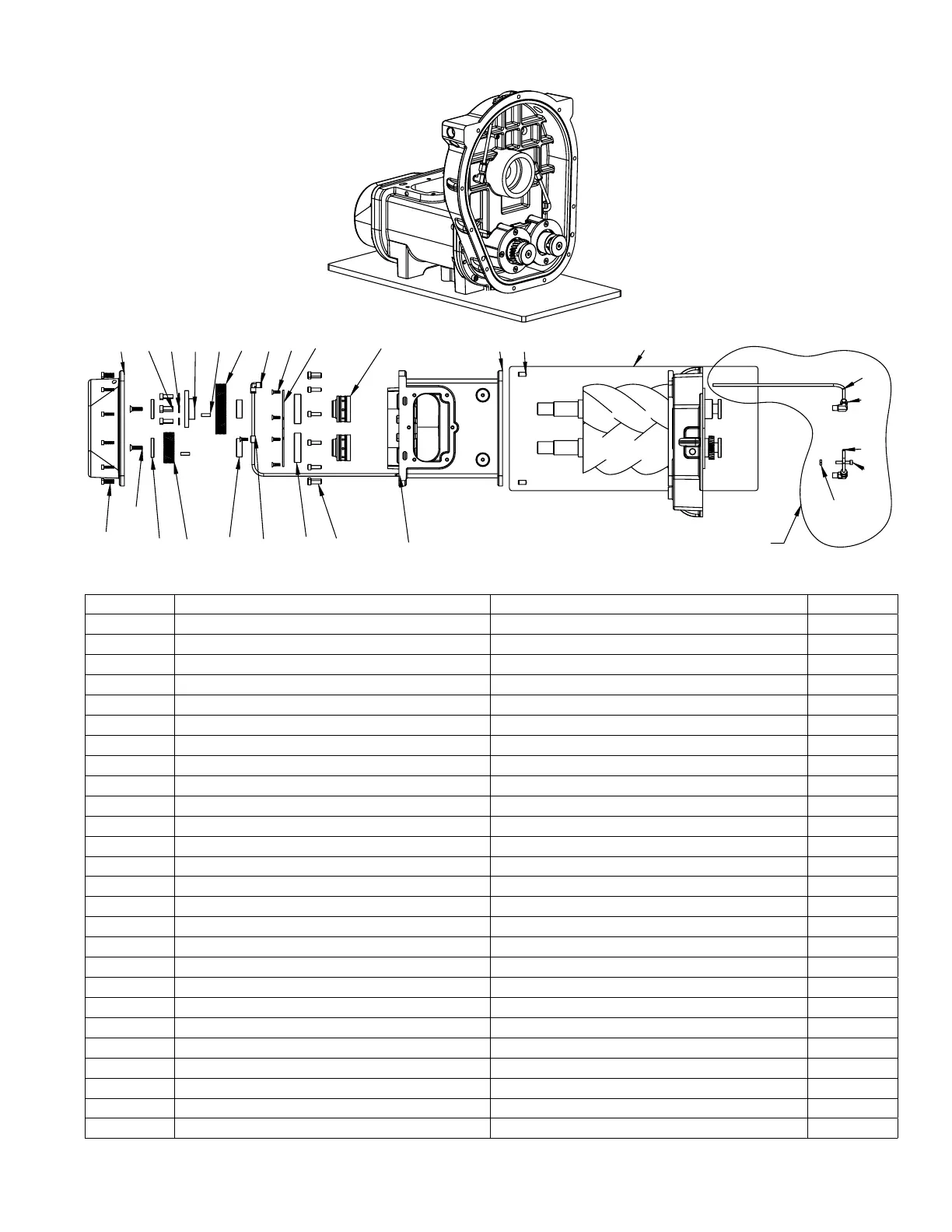

T650/T950H ASSEMBLY DRAWING AND PARTS LIST — STAGE TWO
ITEM NO. PART NUMBER DESCRIPTION QTY.
2 80050-20 PIN, DOWEL 10 × 20 MM 2
3 81003-101 (Consult factory for T950H P/N) HSG, AC C.I. T650 1
4 80046-25 SCREW, CAP, SOC HEAD M8 10
5 1730X-2 LEFT OR RIGHT HAND SEAL ASSEMBLY 2
6 30410-207 BRG, ROLL CYL 2
7 81055 RETAINER BEARING INLET END 2
8 80057-16 SCREW, CAP, SOC HEAD M6 6
9 93378 ELL, TUBE 1/4 × 1/4T 1
10 91210-025 CLAMP, LOOP 1
11 81057 TUBE, INJECTION 1
12 81028-30 SPACER, GEAR 2
13 80051-22 KEY, MM 8 × 7 × 22 2
14 81010 GEAR TIMING FEMALE 1
15 81011 HUB TIMING GEA 1
16 80040-8 LOCK WASHER 6
17 80046-25 SCREW, CAP, SOC HEAD M8 6
18 81012 GEAR TIMING MALE 1
19 81027-2 WASHER, ROTOR SHAFT 2
20 80058 SCREW, CAP, SOC HEAD M8 2
21 92690-062 ELL, TUBE 1/4×1/4 MPT 2
22 OIL TUBING TUBING, RD 1018 STEEL 1
23 PICK UP TUBE TUBING, RD 1018 STEEL 1
24 B18.2.4.5M - HEX JAM NUT M6 HEX NUT 1
25 80045-35 SCREW, CAP, SOC HEAD M6 1
26 81005-117 COVER, MACH C.I. 1
27 80045-20 SCREW, CAP, SOC HEAD M6 12
