Tuttnauer 2340EA - Control Panel and Interface

13

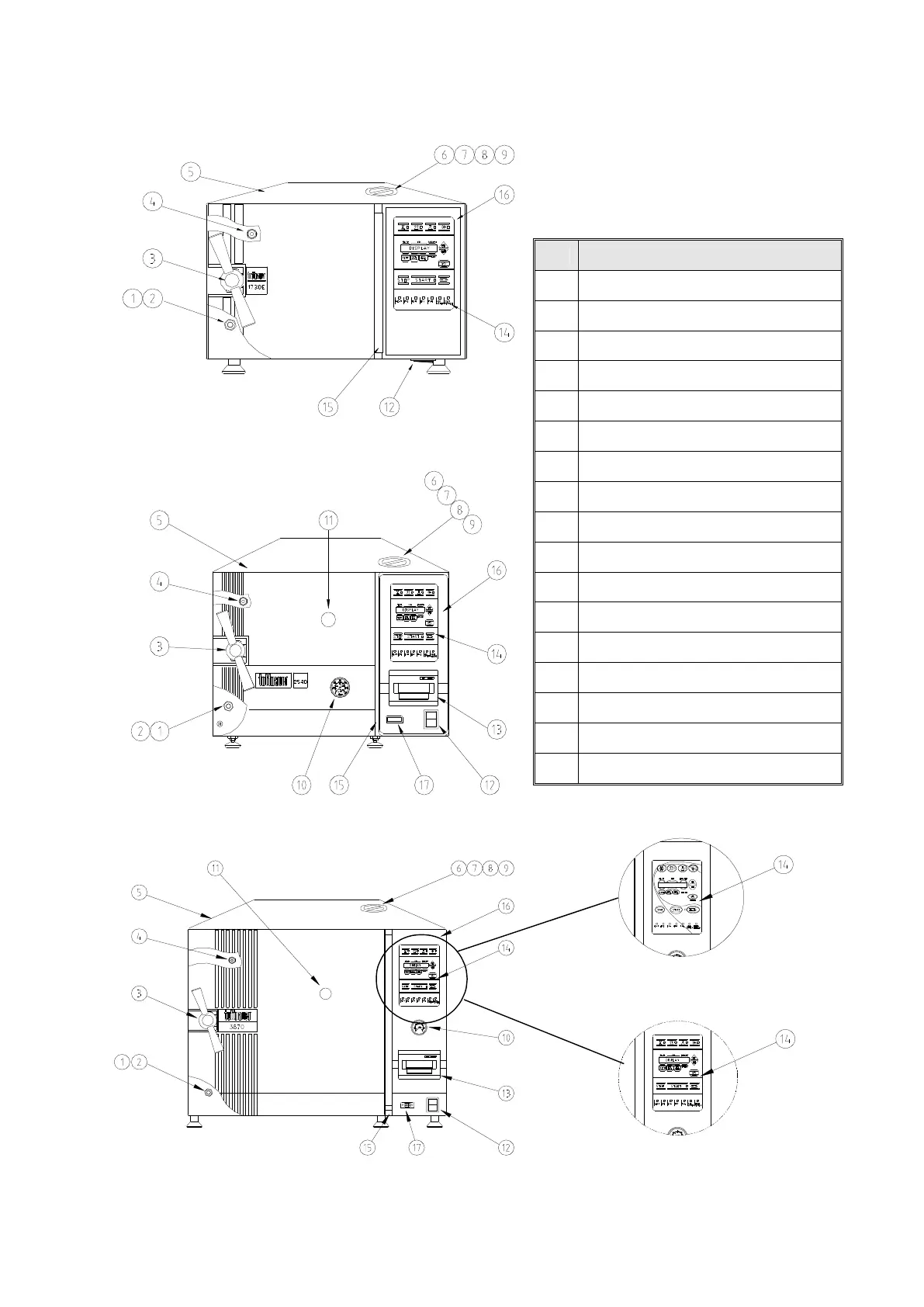

FRONT VIEW
No.
Description
1 Reservoir water drain valve
2 Ring for drain valve
3 Door closing device
4 Door switch
5 Autoclave cover
6 Water reservoir cover
7 Water reservoir – assembly
8 Safety valve
9 Air relief valve
10 Pressure gauge
11 Validation port cover
12 Main switch
13 Printer
14 Front panel key board
15 Completion to panel
16 Panel base
17 RS232 port cover
Model 1730
Models 2340/2540
Models 3140/3850/3870
Old (gray) control panel
New (blue) control panel
