TVLogic F-7HS User Manual

30
FHD Hight Bright Field Monitor
07 OTHER FUNCTIONS
[5] LUMA (Y') ZONE CHECK
• COLOR PATTERN TYPE
- Displays the pixels with the designated
Luma(Y’) levels of the input image in colors.
Pixels whose Y’ level is over 100% are displayed
as Red.
Pixels whose Y’ level is below 0% are displayed
as Green.
- Pixels with Y’ levels which are designated by the
user are displayed in following colors - yellow,
pink, cyan.
- Factory Default Y’ (Border line between pink and
yellow) level is 70%. The upper 2.5% and lower
2.5% zone from the Y’ level set in [LUMA(Y’)
ZONE ADJUST] menu is displayed in Pink.
The upper 10% zone from the Pink zone is
displayed in Yellow, and the lower 10% zone
from the Pink zone is displayed in Cyan. So, 25%
zone is displayed in colors and the other 75%
zone is displayed mono and white.
• LUMA(Y’) ZONE CHECK function is convenient
to set the exposure or the lighting so that the
skin tone or the specic color tone is correctly
shot.
• ZEBRA PATTERN TYPE
- Displays the pixels with the designated
Luma(Y’) levels of the input image in zebra
pattern. Pixels whose Y’ level is over 100% are
displayed as red diagonal stripes.
Pixels whose Y’ level is below 0% are displayed
as green diagonal stripes.
- Pixels with Y’ levels which are designated by the
user are displayed as black diagonal stripes.
- Factory Default Y’ level is 70%. The pixels with Y’
level from 65% to 75% are displayed as black
zebra pattern.
So, totally 10% zone is displayed as black
diagonal stripes.

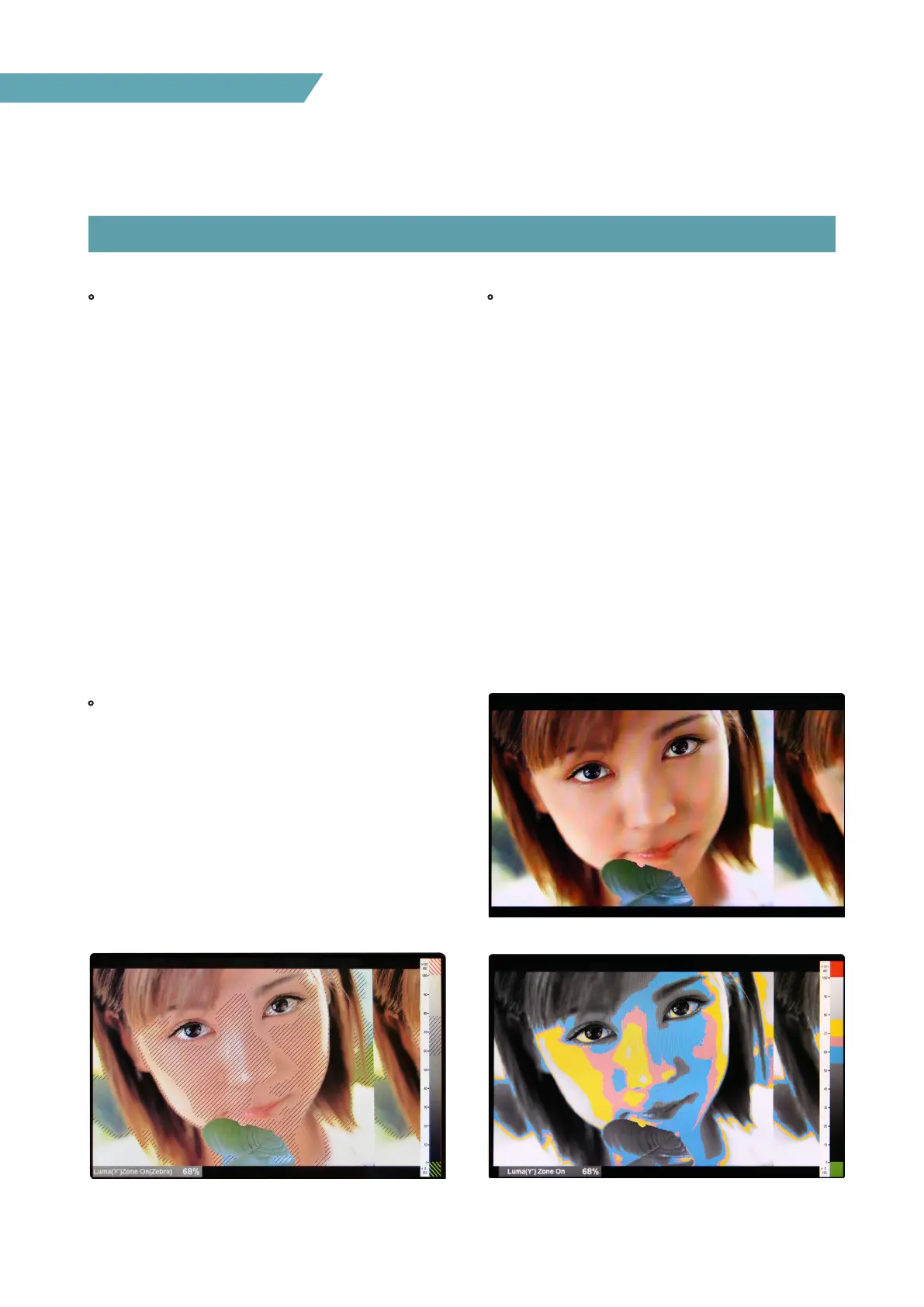

<Luma Zone Check OFF>
<Luma Zone Check ON_Color Pattern Type>
<Luma Zone Check ON_Zebra Pattern Type>
