07 OTHER FUNCTIONS
[8] DSLR SCALE
• This function is designed for some DSLR cameras of Canon(7D) that output dierent resolution from
the operation mode (StandBy, Record, Play Back)
• Select the Camera model in the [Display/Vide]- [DSLR Camera Sel.] menu.
• CANON (5D/550D)
- In StandBy mode of Canon 5D Mark II, 1080i of HD resolution is indicated. However, real output resolution
is 1620x1080 so blank area is displayed on the screen because the 16:9 aspect ratio is not realized.
- In this case, use DSLR SCALE function to enlarge the 1920x1080 image and display full screen.
- In Recording mode of CANON 5D Mark II, the output resolution is SD(480p).
- Although it is SD, the real output resolution is 640x390 not 720x480.
- DSLR SCALE function scales the 640×390 image to 1280x800(panel resolution) and display full screen.
※
Note
1. When you compare the circle chart or the camera shooting chart with DSLR connected monitor(HDMI)
and HDMI to SDI Conversion connected monitor, The function of Live/Rec 16:9 mode should be selected
to compare circle and it is equal to its actual. If the circle is compared in Live/Rec Full mode, the output
of the circle is deformed.
2. Both the DSLR Camera connected monitor and HDMI to SDI Conversion connected monitor should be
compared to circle in Zeroscan mode. It is deformed if user selects in Overscan and Underscan mode.

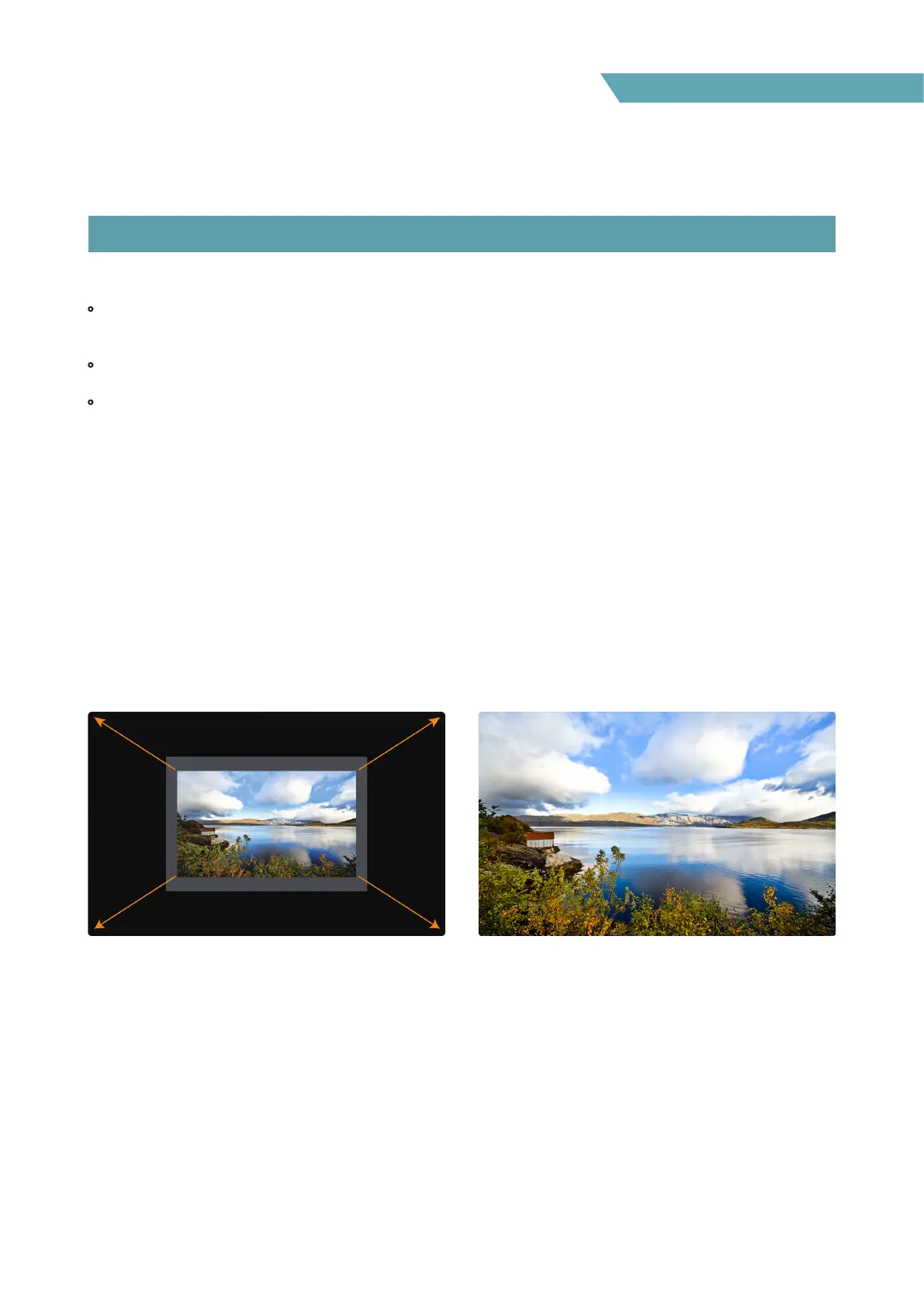

<DSLR Scale O> <DSLR Scale On>
