TVLogic F-7HS User Manual

03 CONTROLS & FUNCTIONS
9
FHD Hight Bright Field Monitor
SIDE & BOTTOM / REAR
• [REAR TALLY]
- Activates same as [SCREEN TALLY].
• [SDI OUT] (BNC)
- Signal output terminal for HD/SD/3G SDI signal.
- Video source from HDMI input terminal can be
converted to SDI format.
* SDI Output is not activated when the
unit is turned o or in Standby mode.
• [SDI IN] (BNC)
- Signal input terminal for HD/SD/3G SDI signal.
• [POWER] Switch
- Used to turn the power on and o.

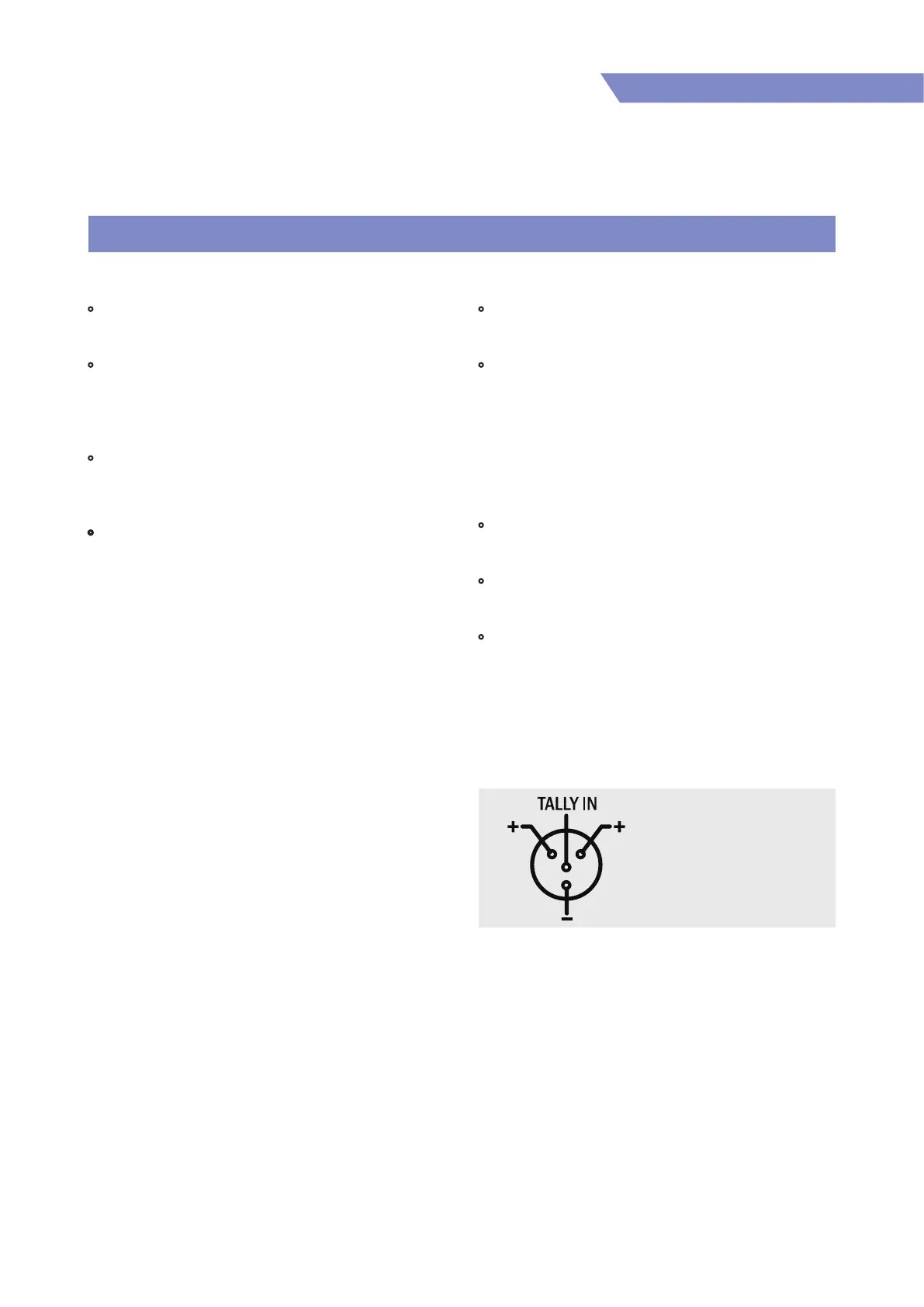

• [DC POWER / TALLY] (XLR 4P)
- Tally Signal In Level DC 5V ±2V
- Battery Power Input terminal for DC 12V
- Rated Power Input : DC 12V 1.8A / 34V 0.6A
* When using a DC Adapter other than the one
supplied by the manufacturer, please be advised
that the adapter with DC 12V/3A ~ 6A can be
compatible with the monitor.
< Warning! >
When using the product make sure to ground,
whenever possible, before connecting the input
signal cable in order to prevent any possible
damage to the product or connected devices.
The damage may include signal noise, malfunction
of main board or display panel. And the connected
devices such as camera or video source player
may also be inuenced through signal cable.
Please check if the AC power source and the power
extender or power distributor is grounded.
• [HDMI IN]
- Signal input terminal for HDMI signal.
• [HDMI OUT]
- Signal output terminal for HDMI signal.
- Video source from SDI input terminal can be
converted to HDMI format.
• [HEADPHONE] (Phone Jack)
- Used for Stereo Audio Output through Phone
Jack. (video signals with embedded audio only)
• [USB]
- This terminal is used to upgrade the rmware or
color calibration made by TVLogic.
