TVS electronics RP-4150 - LABEL PAPER SPECIFICATIONS AND USE; Label Paper Dimensions and Requirements

Item
ItemItem
Item Dimensions
DimensionsDimensions
Dimensions
A Liner width
0
58 to 112
-1
B Label width
54 to 108 +_ 0.5
C Left edge of label 2 + 0.5
D Print width 50 to 104
E Top margin
2 +_ 1
F Print length 21 to 296
G Bottom margin
2 +_ 1
H Cut position between labels 1/2 x (Size I)
I Gap between labels 4 to 30
J Label length 25 to 300
K Label pitch I+J
L Left margin
2 +_ 1
M Right margin
2 +_ 1
Item
ItemItem
Item
Dimensions
DimensionsDimensions
Dimensions

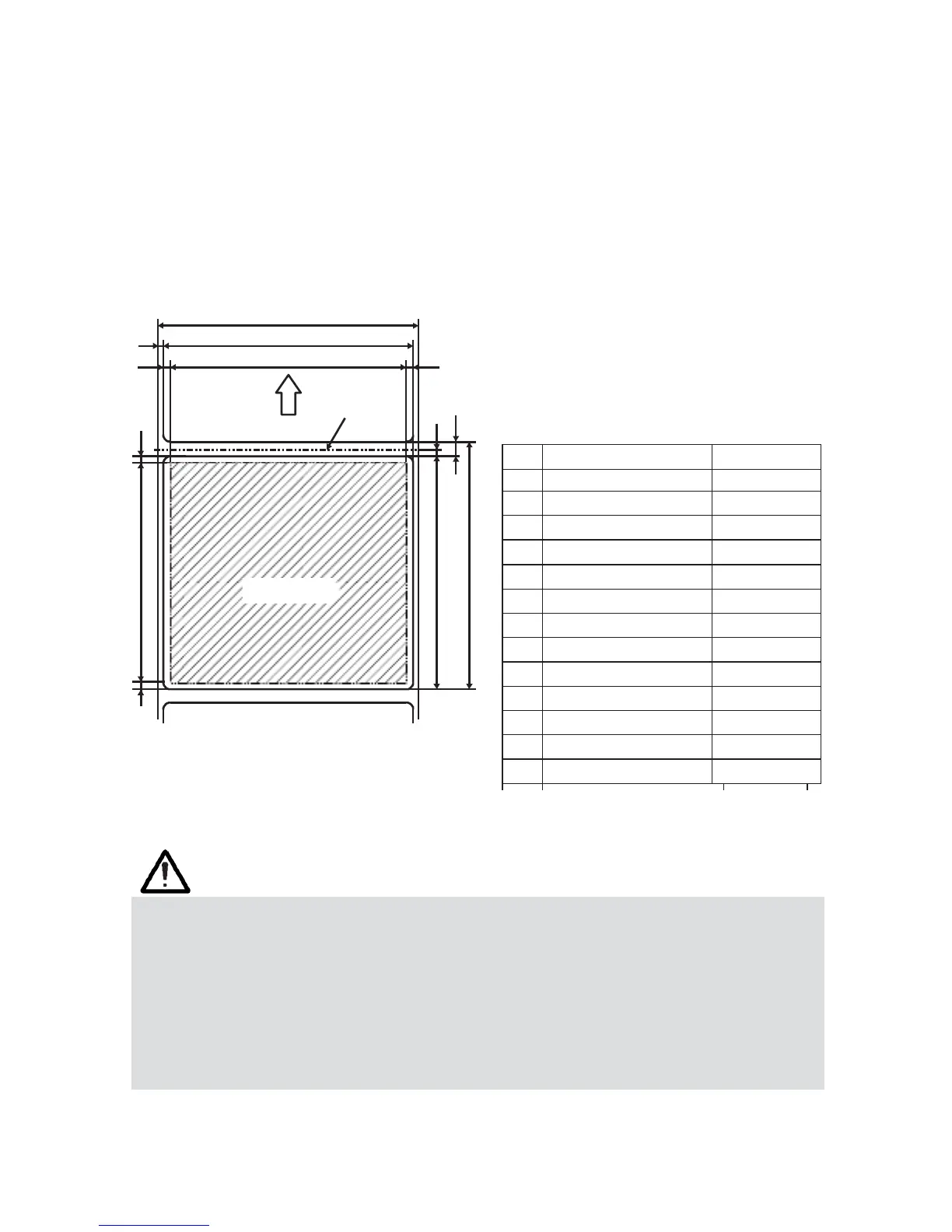

a) Label paper *L
A
C B
L D
Full cut
position
M
E
F
Paper feeding
direction
H I
J K
Unit: mm
Printable area
G
CAUTION!
CAUTION!CAUTION!
CAUTION!
Pay attention to the following when using Auto Cutter. Otherwise, a cutter lock or a
cutter failure may occur.
■ Set the cut length of paper to 25 mm or more.
■ When using label paper, cut the gap between labels (liner sheet). Do not cut the label
paper (tack paper).
■ Adusting the paper sensor must be carried when the type of liner is changed.
