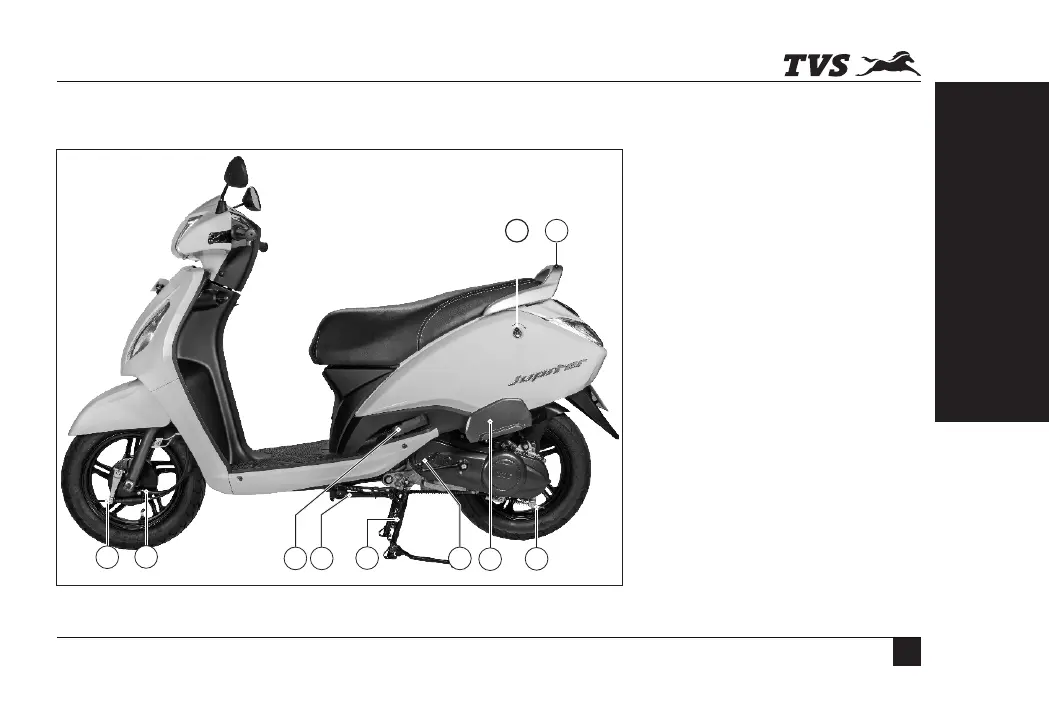

LOCATION OF PARTS - VEHICLE LEFT SIDE
1. Rear brake adjusting nut
2. Lady foot rest - foldable*
3. Kickstarter lever
4. Effortless easy center stand
5. Side stand*
6. Pillion foot rest L
7. Speedometer cable
8. Front brake adjusting nut
9. Seat cum fuel tank cap lock
10. Pillion handle
1
2
4
7
8
109
5
3
* Mandatory and optional accessory will be charged extra
6
13
KNOW YOUR TVS JUPITER
KNOW YOUR TVS JUPITER
