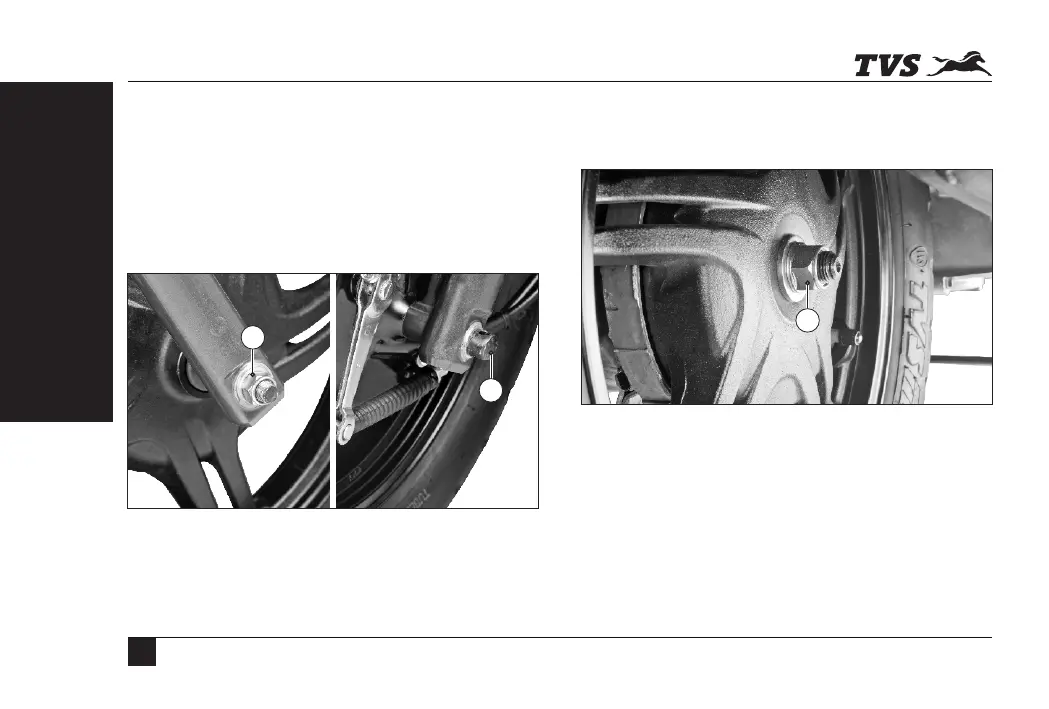

3. Place a support below the foot board to prevent vehicle
from falling and lift the vehicle up.
4. Dislocate the wheel assembly along with brake panel
from front fork. Separate the brake panel from the
wheel and take out the wheel.
5. Reverse the procedure for reassembling. while
reassembling ensure to locate the lug on fork leg L to
the slot in the brake panel.
1
2
A
REAR WHEEL REMOVAL
1. Place the vehicle on the centre stand.
2. Hold the rear brake firmly and loosen the wheel
mounting nut (A). Remove the wheel mounting nut
along with a washer.
3. Slightly tilt the vehicle and take out the wheel from rear
axle.
4. Reverse the procedure for reassembly.
MAINTENANCE
44
MAINTENANCE
STORAGE PROCEDURES
For storage of your scooter for longer period of over a
month and above, we recommend to carry out the following
steps:
1. Clean the vehicle thoroughly. Park the vehicle on centre
stand.
2. Warm up the engine. Drain engine oil and transmission
oil. Store the oil, if new, in a dust free container.
3. Empty the fuel tank.
