4. Turn the adjuster nut clockwise to reduce the
free play or turn it in anti-clockwise direction to
increase the free play.
Rear brake

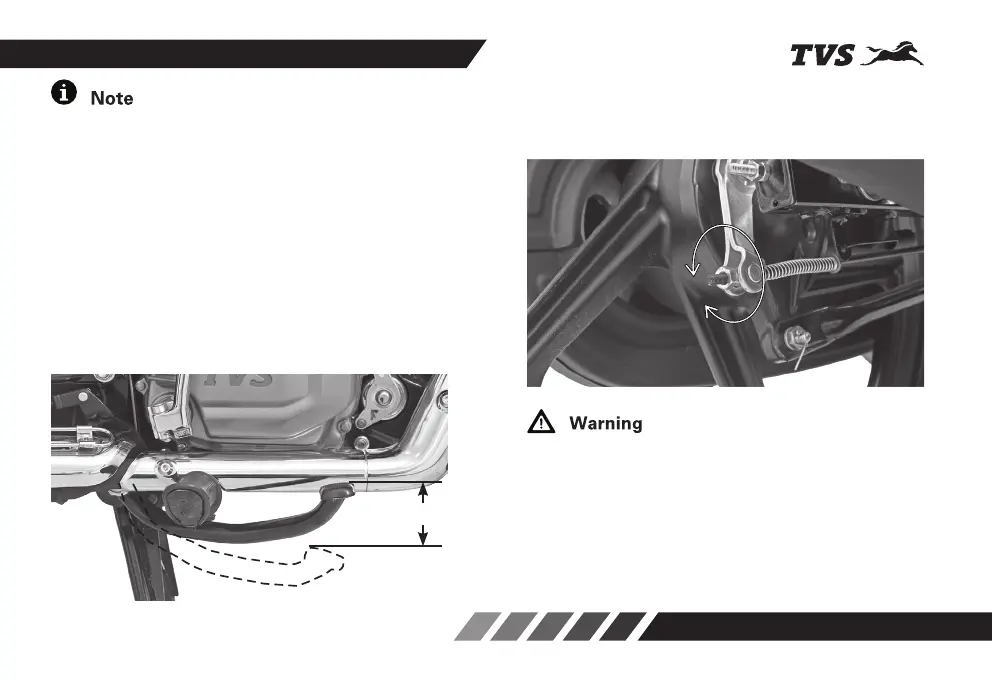

1. Measure the free play of the rear brake pedal at
the pedal end as shown in the figure.
2. The free play of the brake pedal before the
engagement of brake should be between
15 ~ 20 mm.
3. If the measured free play is more than the limit,
adjust the nut provided at the rear wheel end to
obtain the correct play.
Please contact TVS Motor Company Authorised Main
Dealer or Authorised Dealer for any further assistance.
Check both front and rear brake play periodically.
However the brake play needs to be adjusted more
frequently depending upon the usage.
Please remember that the rear brake lever free play
adjustment to be done only after adjusting the front
brake lever play.
