43
Brake shoe wear indicator

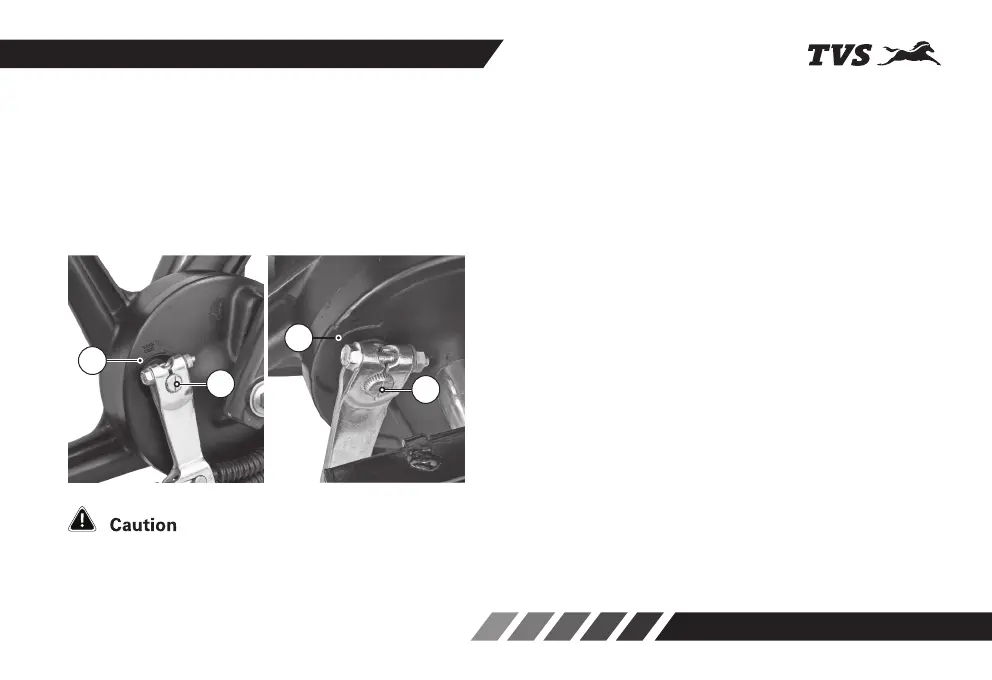

When the brake is applied, wear limit index mark (A)
on both front and rear cam brake should be within the
range of wear limit indicator (B) on panel assembly.
Incase the index mark (A) is going beyond the wear
limit (B), replace the brake shoes as a complete set,
with the help of the nearest TVS Motor Company
Authorised Main Dealer / Authorised Dealer.
B
A
A
Replace the brake shoes as a set, if wear limit index mark
(A) exceeds beyond the range of wear limit indicator (B)
even after indexing the lever.
However, if cam lever adjustment goes beyond
certain range, then index the cam lever to next slot
(serration tooth) with the help of the nearest TVS
Motor Company Authorised Main Dealer / Authorised
Dealer, to utilize remaining shoe life until wear limit
index mark (A) exceeds beyond the range of wear
limit indicator (B).
B
