17

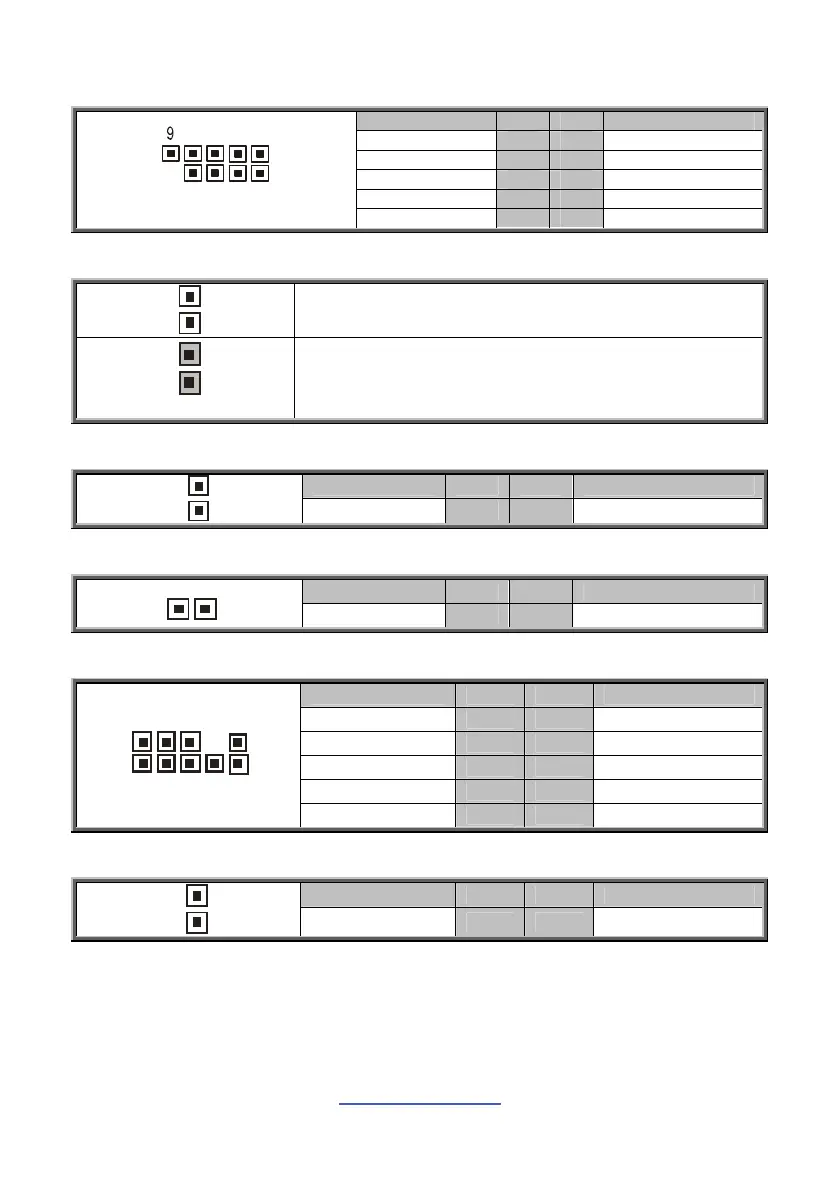

J20: Front Panel Connector
Signal Pin Pin Signal
VCC 1 2 GRN BLNK HRD
SATA LED 3 4 YLW BLNK HRD
GND 5 6 PWRBTN
FP RST 7 8 GND
1
2
10
VCC 9 10 KEY-Pin
FCFH1: Chassis Intrusion Header
1
Use this header to disable the system chassis intrusion
alarm.
1
(Default)
Use this header to trigger the system chassis intrusion
alarm.
J76: 82583 LAN Activity LED Header
Signal Pin Pin Signal
1
VCC3 1 2 82583_LED_ACT-
J82: 82579 LAN Activity LED Header
Signal Pin Pin Signal
1
VCC3 1 2 LAN1_LINK_ACTIVITY-
F_AUDIO1: Front Audio Connector
Signal Pin Pin Signal
FP_MIC_L 1 2 AGND
FP_MIC_R 3 4 AUDIO_Detect
AUO_HPOUT_R 5 6 AUO_SENSE_MIC
FIO_SENSE 7 8 KEY-Pin
10
9
2
1
FP_MIC_L 9 10 AUO_SENSE_HP
INT_SPKR: Internal Speaker Header
Signal Pin Pin Signal
1
INT_SPKR- 1 2 INT_SPKR+
