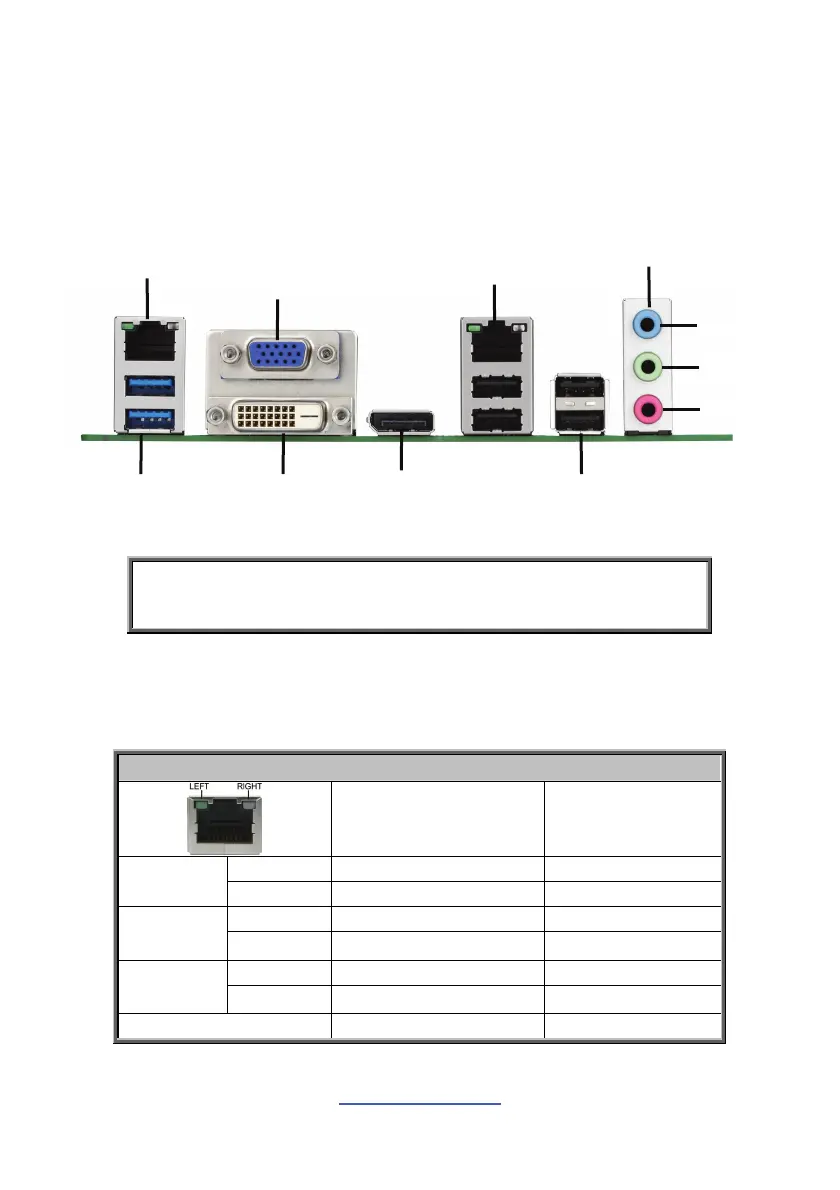

2.10 Connecting External Devices
Connecting external devices to the motherboard is an easy task. The motherboard
supports a number of different interfaces through connecting peripherals. See the
following diagrams for the details.
NOTE: Peripheral devices can be plugged straight into any of these
ports but software may be required to complete the installation.
Onboard LAN LED Color Definition
The two onboard Ethernet ports have green and yellow LEDs to indicate LAN
status. The chart below illustrates the different LED states.
10/100/1000 Mbps LAN Link/Activity LED Scheme
Left LED Right LED
Link Green Amber
10 Mbps
Active Blinking Green Green
Link Green Amber
100 Mbps
Active Blinking Green Green
Link Green Amber
1000 Mbps
Active Blinking Green Green
No Link Off Off
RJ45 GLAN
(Intel 82583)+
2 USB2.0 Ports
RJ45 GLAN
(Intel 82579)
2 x USB3.0 Ports
2 x USB2.0 Ports
Display Port 1.1
VGA
DVI-D
Line_In
Line_Out
MIC
A
udio Ports
